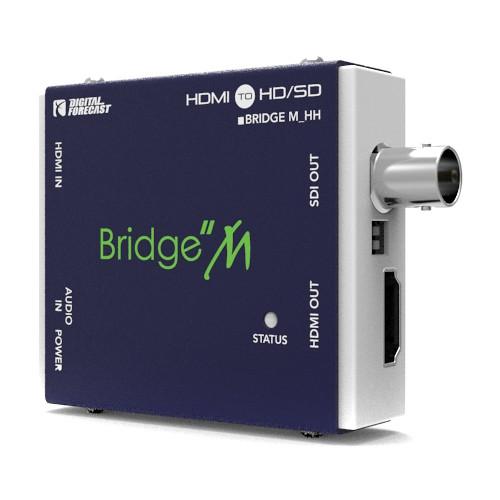

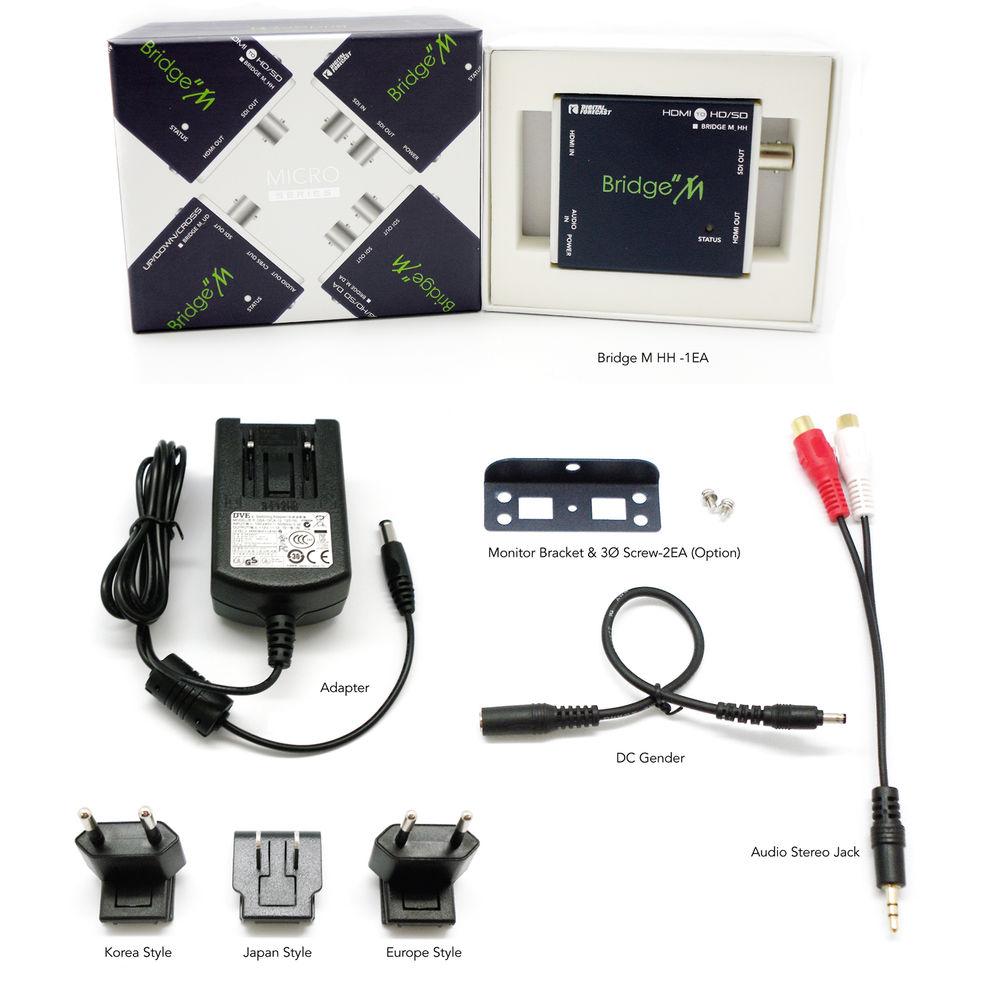

Product description Convert HDMI signals to SDI for use in professional A/V or broadcast setups with the DIGITAL FORECAST Bridge M_HH Mini HDMI to SDI Converter. The HDMI input supports 1080p signals up to 60fps. Analog audio input via the 3.5mm stereo jack can be embedded in the outgoing video signal if no audio is present over the HDMI signal. For RCA sources, a stereo adapter is included. Output over SDI can be scaled and scan-converted as necessary to fit the application. The HDMI output can also be scaled for use as a secondary output. For equipment installations, 10 units can be mounted in a standard equipment rack using the separately available Bridge M_PLUS. UPC: 704006295292 In the Box DIGITAL FORECAST Bridge M_HH Mini HDMI to SDI Converter Universal Power Supply 3.5mm Stereo to RCA Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DIGITAL FORECAST Bridge M_HH Mini HDMI to SDI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDIGITAL FORECAST M_HH Specs | Inputs | 1 x HDMI Type A
1 x 3.5mm stereo analog audio
1 x USB
1 x DC power | | Outputs | 1 x BNC, SD/HD/3G-SDI 1 x HDMI Type A | | HDMI Format Support | v1.3 | | SDI Format Support | SMPTE-424M: 1080p 59.94/60
SMPTE-292M: 1080p 23.98/24/25/29.97/30
SMPTE-274M: 1080i 50/59/94/60
SMPTE-296M: 720p 50/59.94/60
SMPTE-125M: NTSC/PAL | | Power Supply | 12 VDC | | Power Consumption | Nominal: 4.73 W
Maximum: 5 W | | Environmental | Operating Temperature: -4 to 158°F / -20 to 70°C
Humidity: 0-95% RH, non-condensing | | Dimensions | 2.7 x 2.3 x 0.8" / 68 x 59 x 20 mm | | Weight | 3.3 oz / 95 g | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 4.7 x 3.9 x 3.5" |
