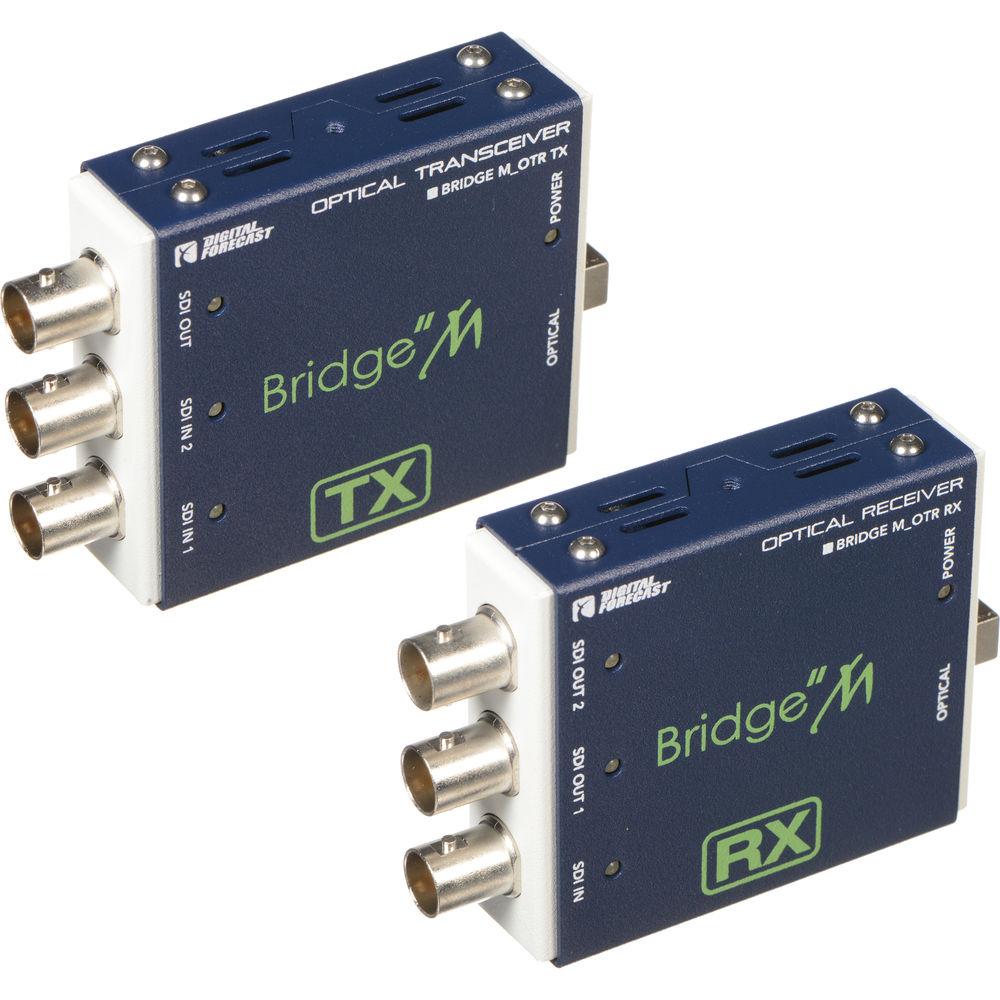

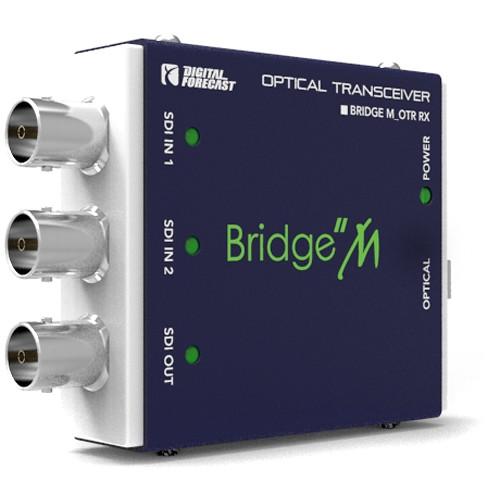

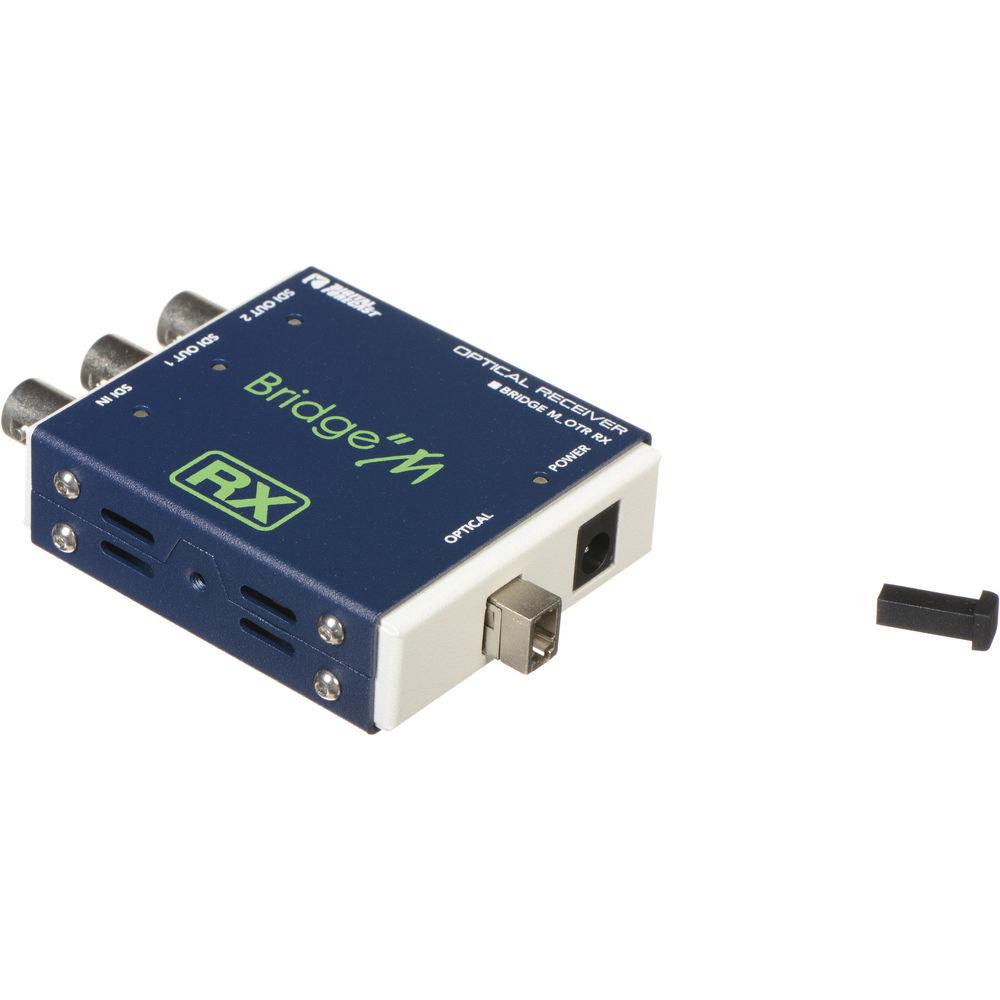

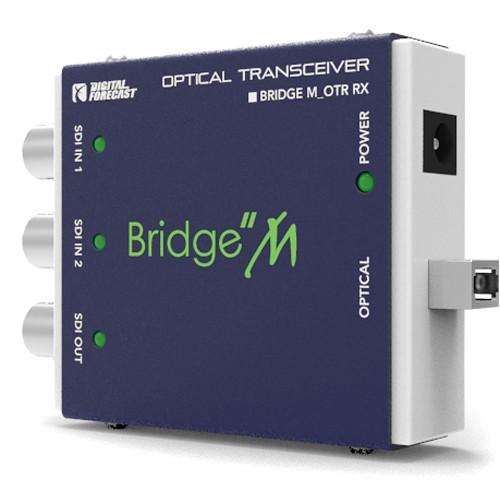

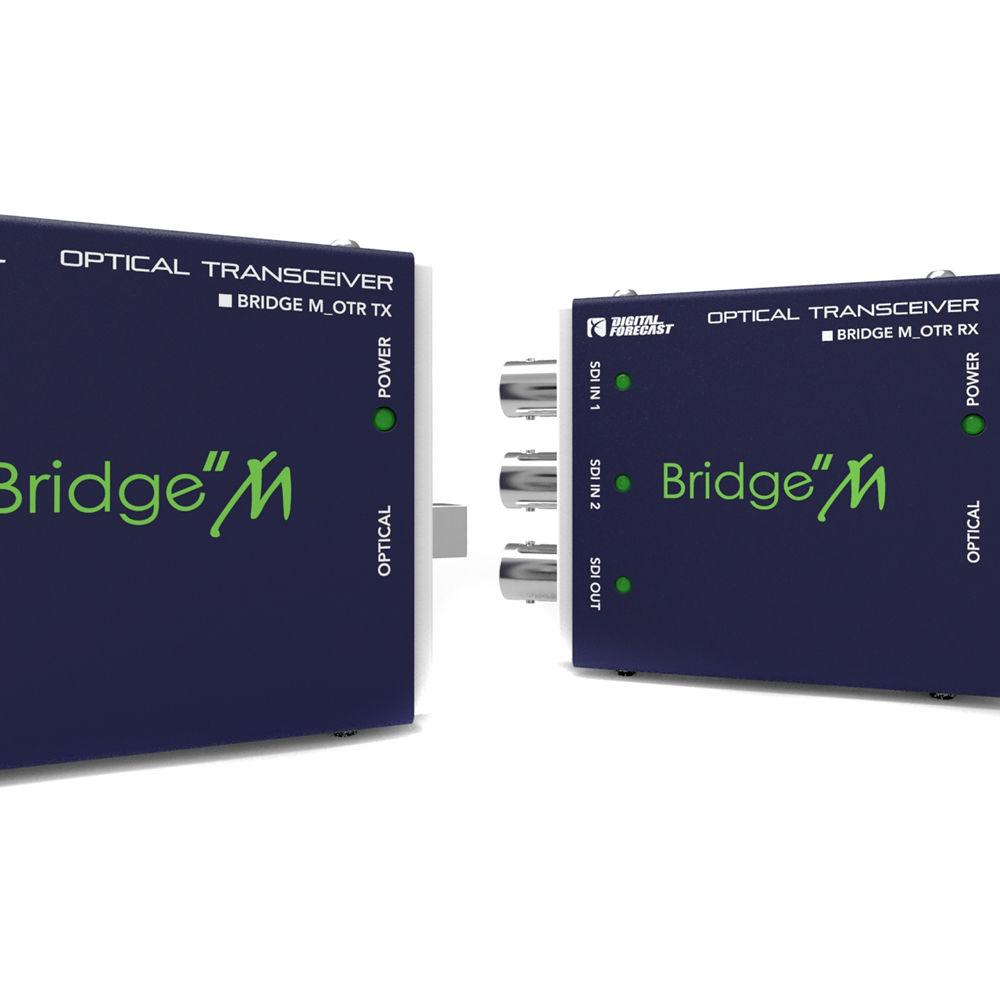

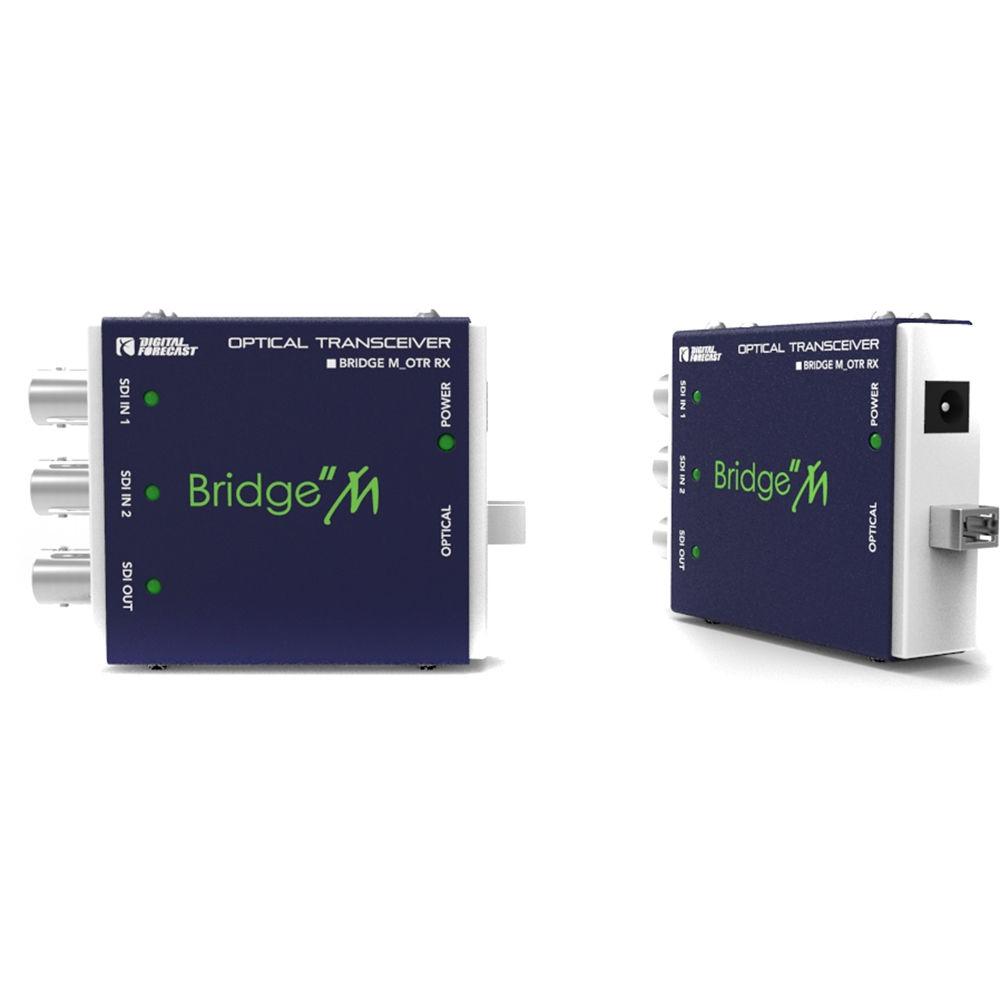

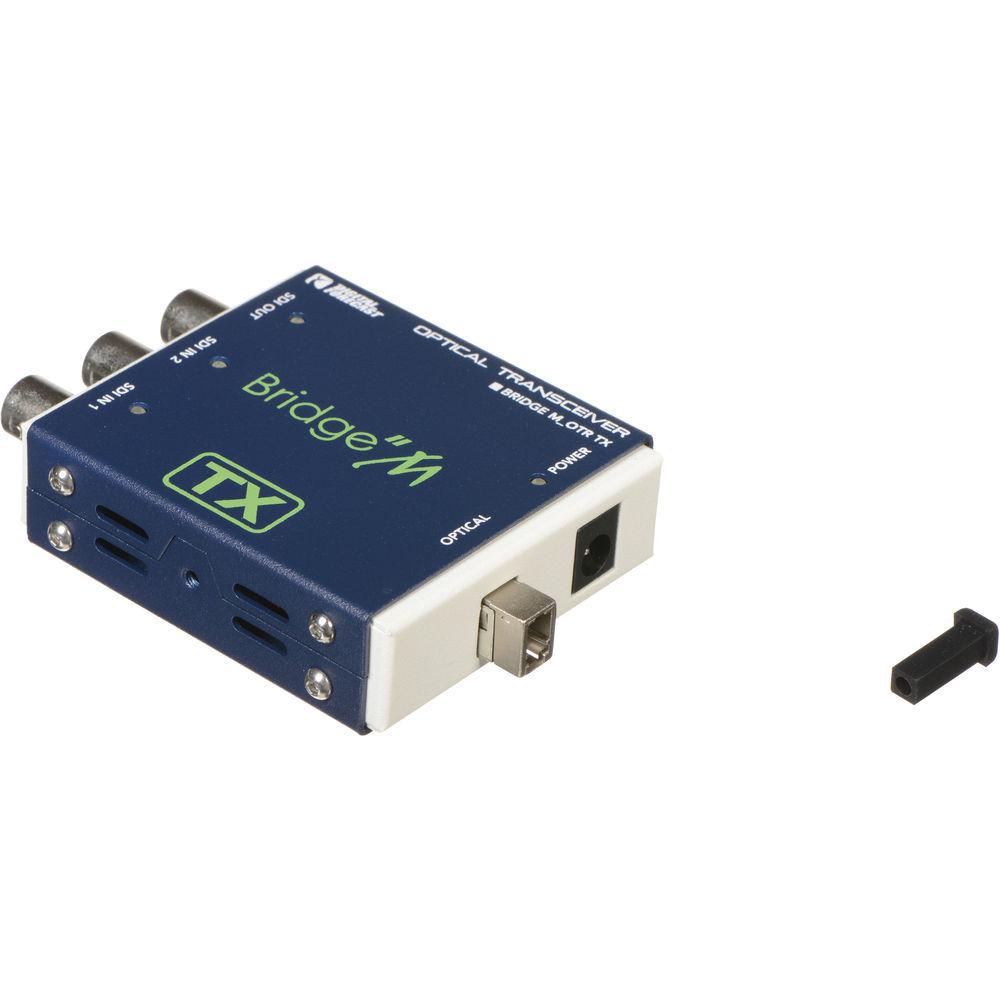

Product description If you need to transmit SDI signals long distances, the Digital Forecast Bridge M_OTR Mini SDI Optical Transmitter and Receiver Kit has you covered. Using the single-mode fiber optic protocol, this kit can successfully transmit three video signals up to six miles over a single cable. The kit itself is comprised of a transmitter and a receiver. Two SDI streams can be sent from the transmitter to the receiver, and one separate return SDI stream can be sent back to the transmitter from the receiver, eliminating the need for more units and cables. Universal power supplies for both units are included. UPC: 704006295339 In the Box DIGITAL FORECAST Bridge M_OTR Mini SDI Optical Transmitter and Receiver Kit 2 x Universal Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DIGITAL FORECAST Bridge M_OTR Mini SDI Optical Transmitter and Receiver Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDIGITAL FORECAST M_OTRS Specs | Inputs | Transmitter
2 x BNC, 3G/HD/SD-SDI
Receiver
1 x SFP optical
1 x BNC, 3G/HD/SD-SDI | | Outputs | Transmitter
1 x SFP optical
1 x BNC, 3G/HD/SD-SDI
Receiver
2 x BNC, 3G/HD/SD-SDI | | Fiber Optic System | Single-Mode 1310/1490/1550 nm | | Maximum Transmission Distance | 6 mi / 10 km | | SDI Format Support | SMPTE-424M: 1080p 59.94/60
SMPTE-292M: 1080p 23.98/24/25/29.97/30
SMPTE-274M: 1080i 50/59/94/60
SMPTE-296M: 720p 50/59.94/60
SMPTE-125M: NTSC/PAL | | Power Supply | 12 VDC | | Power Consumption | Nominal: 3 W
Maximum: 4 W | | Environmental | Operating Temperature: -4 to 158°F / -20 to 70°C
Humidity: 0-95% RH, non-condensing | | Dimensions | 2.7 x 2.3 x 0.8" / 6.8 x 5.9 x 2.0 cm (each unit) | | Weight | 3.5 oz / 100 g | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 7.3 x 5.3 x 3.1" |
