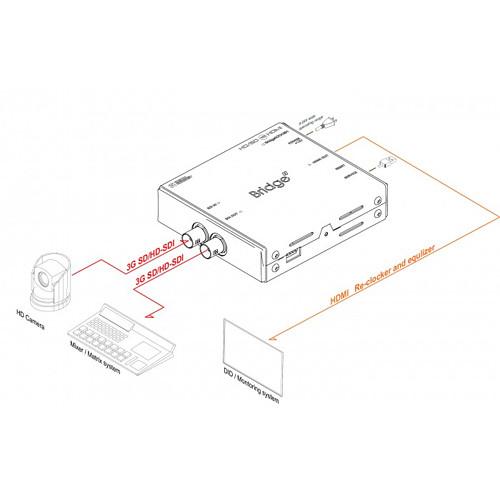

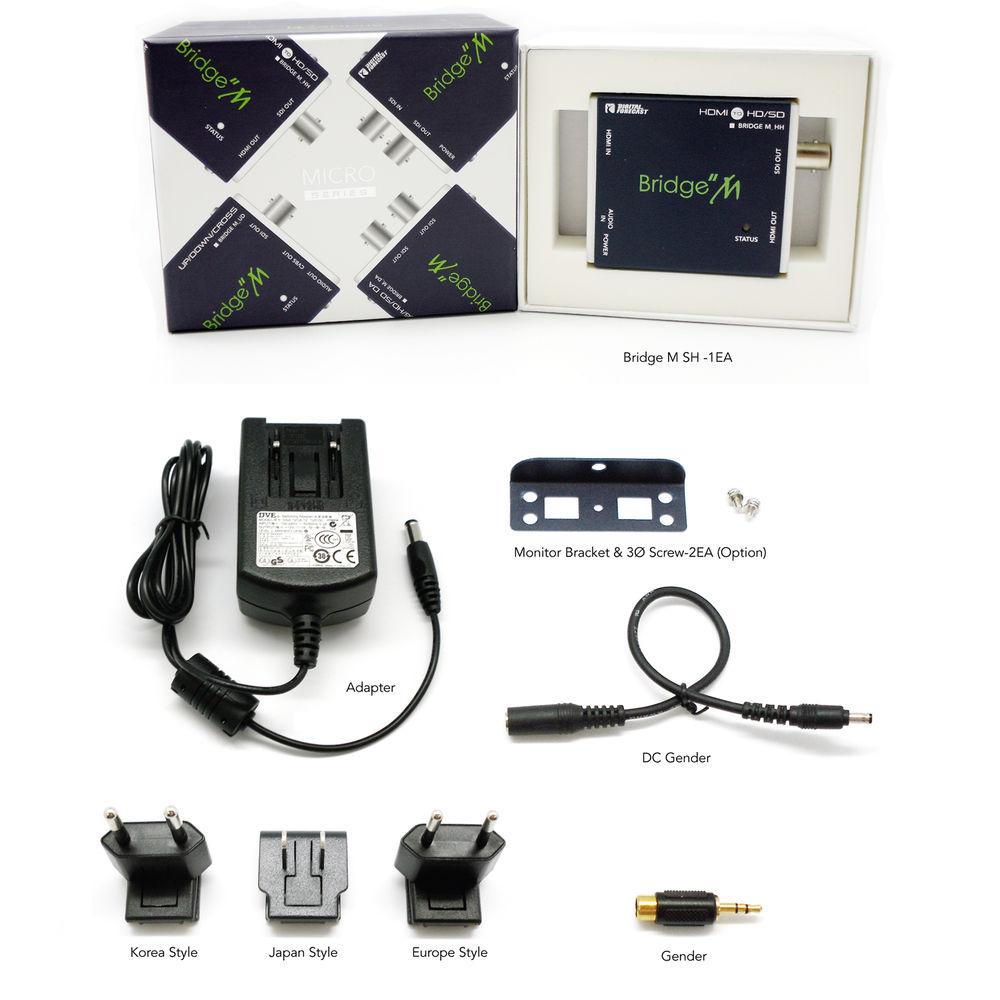

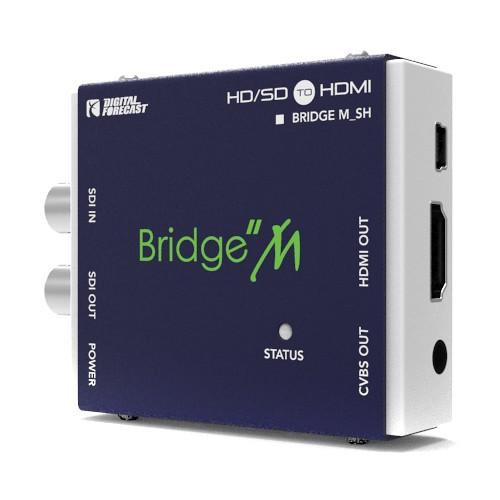

Product description Use the DIGITAL FORECAST Bridge M_SH Mini SDI to HDMI Converter for connecting an SD, HD, or 3G-SDI source to an HDMI-compatible device. With this converter, broadcast-grade SDI signals can be displayed on inexpensive consumer equipment, such as televisions and projectors. Built-in scaling hardware can convert the output resolution to best fit the application. A separate composite video output is available via 3.5mm output. An RCA adapter for the composite video output is included. The re-clocked SDI loop output transmits an untouched SDI signal for connecting to other SDI equipment. For professional equipment installations, 10 units can be mounted in a standard equipment rack using the separately available Bridge M_PLUS. UPC: 704006295285 In the Box DIGITAL FORECAST Bridge M_SH Mini SDI to HDMI Converter Universal Power Supply 3.5mm to RCA Composite Video Converter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DIGITAL FORECAST Bridge M_SH Mini SDI to HDMI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDIGITAL FORECAST M_SH Specs | Inputs | 1 x BNC, SD/HD/3G-SDI
1 x DC power | | Outputs | 1 x BNC, SD/HD/3G-SDI
1 x HDMI Type A | | HDMI Format Support | v1.3 | | SDI Format Support | SMPTE-424M: 1080p 59.94/60
SMPTE-292M: 1080p 23.98/24/25/29.97/30
SMPTE-274M: 1080i 50/59/94/60
SMPTE-296M: 720p 50/59.94/60
SMPTE-125M: NTSC/PAL | | Power Supply | 12 VDC | | Power Consumption | Nominal: 3 W
Maximum: 4 W | | Environmental | Operating Temperature: -4 to 158°F / -20 to 70°C
Humidity: 0-95% RH, non-condensing | | Dimensions | 2.7 x 2.3 x 0.8" / 68 x 59 x 20 mm | | Weight | 3.2 oz / 90 g | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 4.7 x 3.9 x 3.4" |
