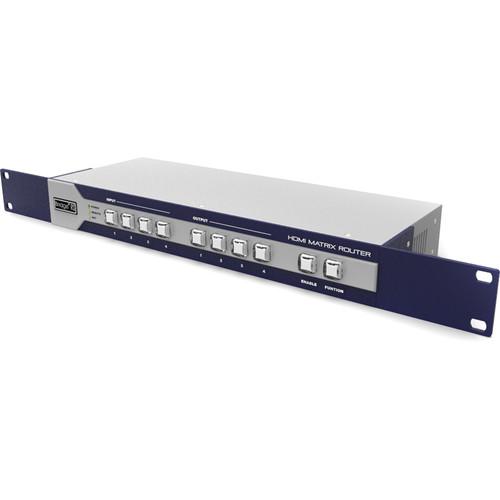

User Manual for DIGITAL FORECAST Bridge RS HDMI 4x4 Matrix Switcher Click to enlarge the picture
Contents of the user manual for the DIGITAL FORECAST Bridge RS HDMI 4x4
- Product category: Routers & Switchers DIGITAL FORECAST
- Brand: DIGITAL FORECAST
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DIGITAL FORECAST Routers & Switchers
 |
User manual for the DIGITAL FORECAST Bridge RS HDMI 4x4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DIGITAL FORECAST product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DIGITAL FORECAST user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DIGITAL FORECAST product will considerably shorten its lifespan!
|

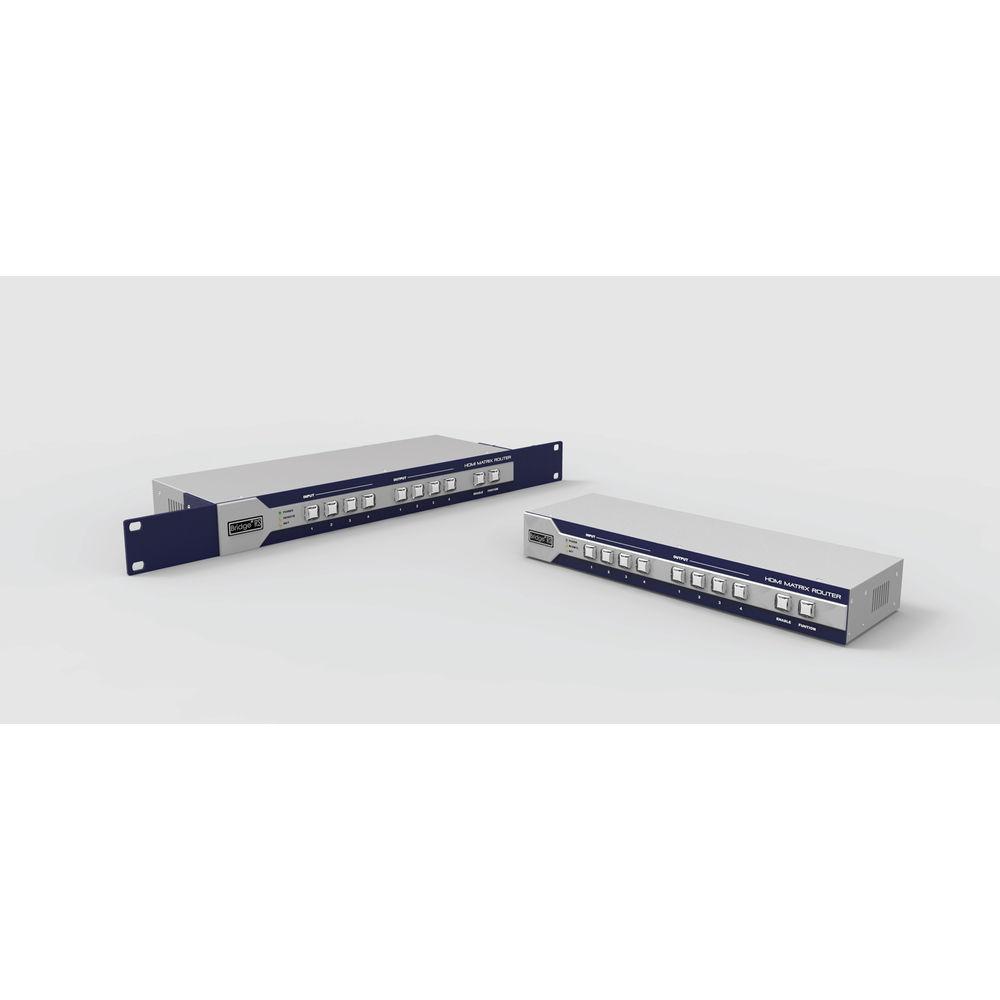

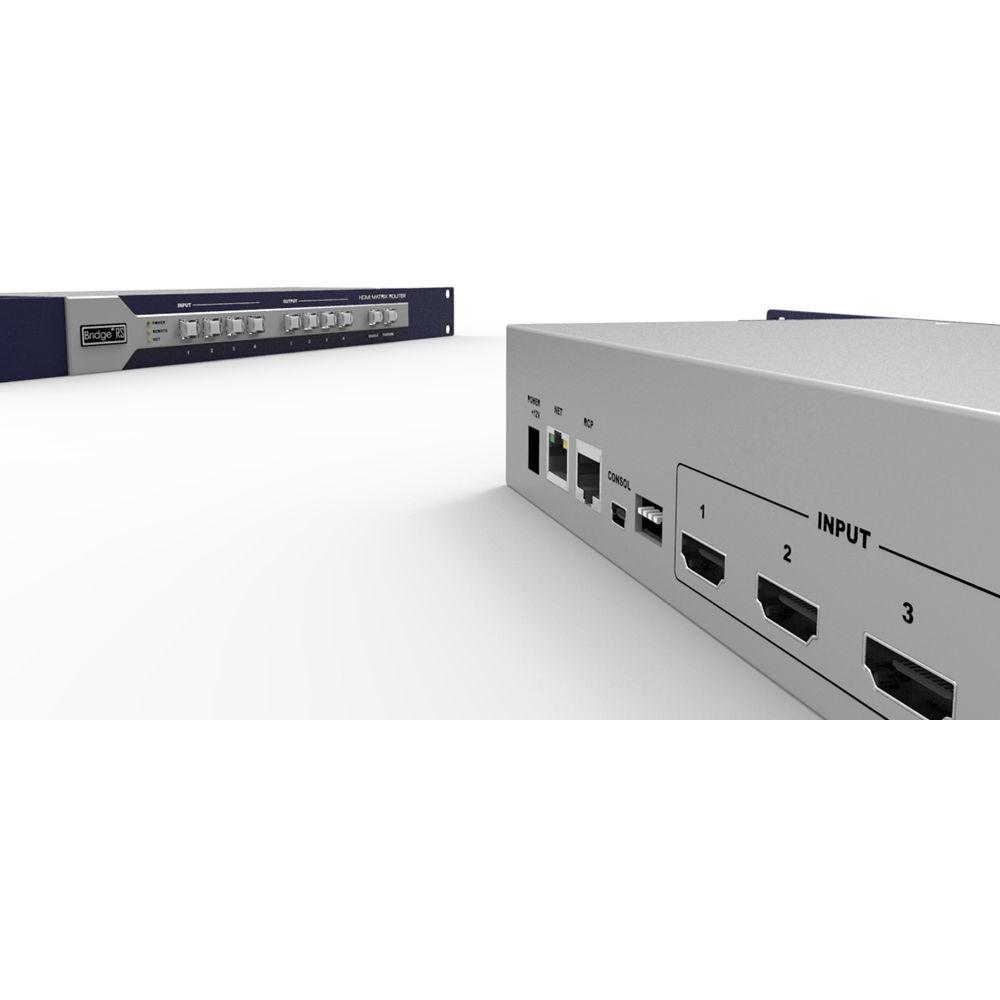

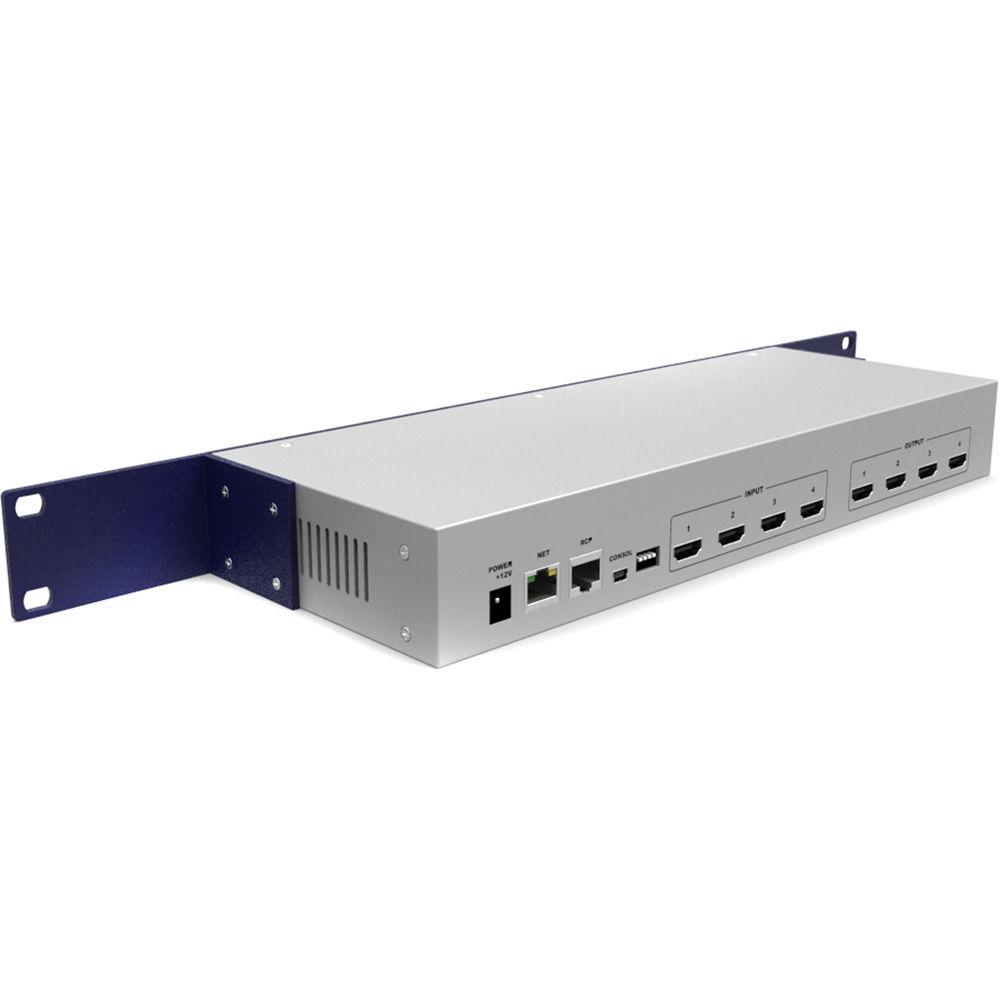

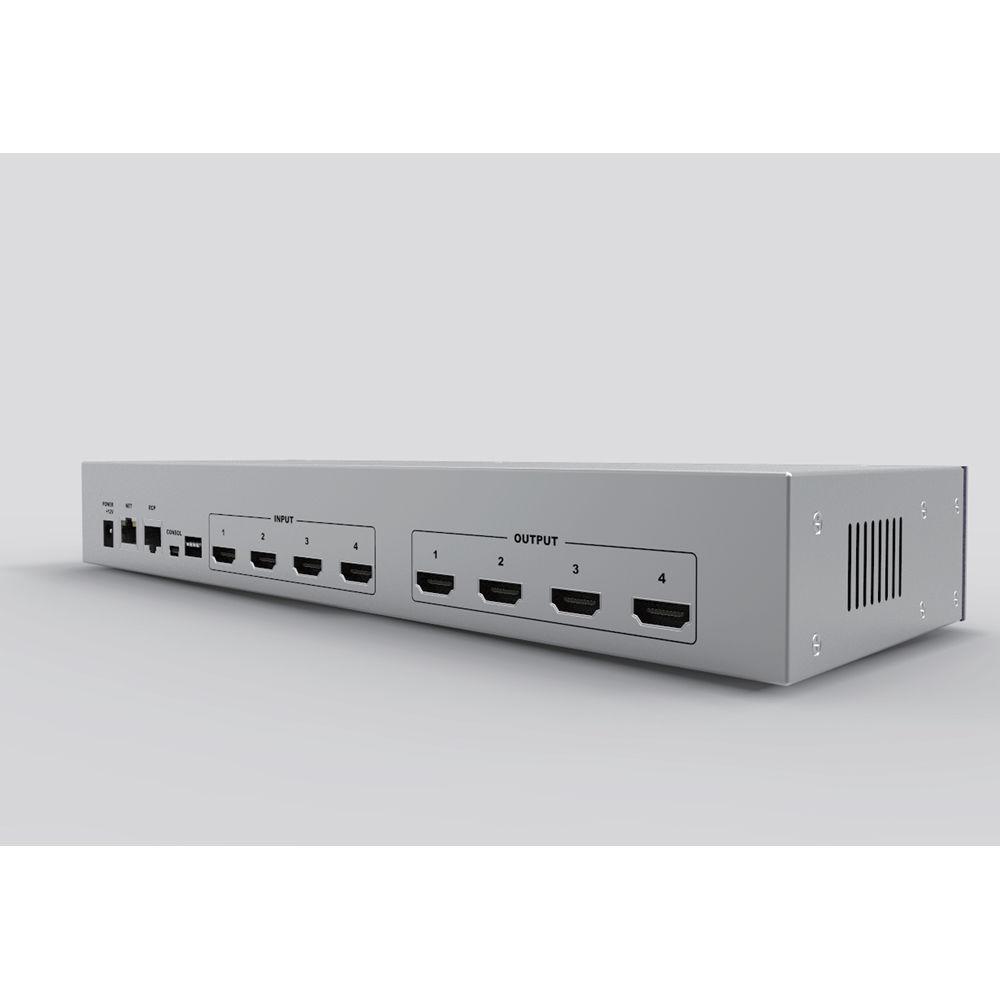

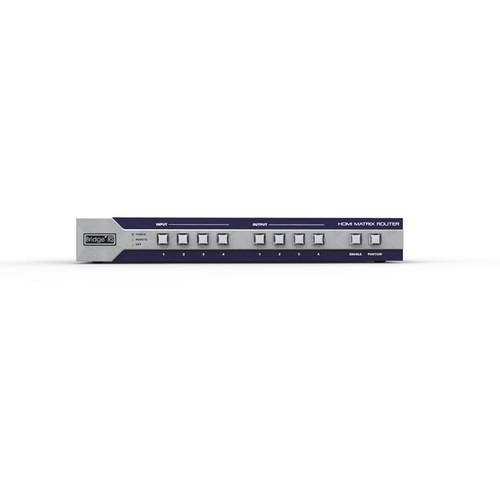

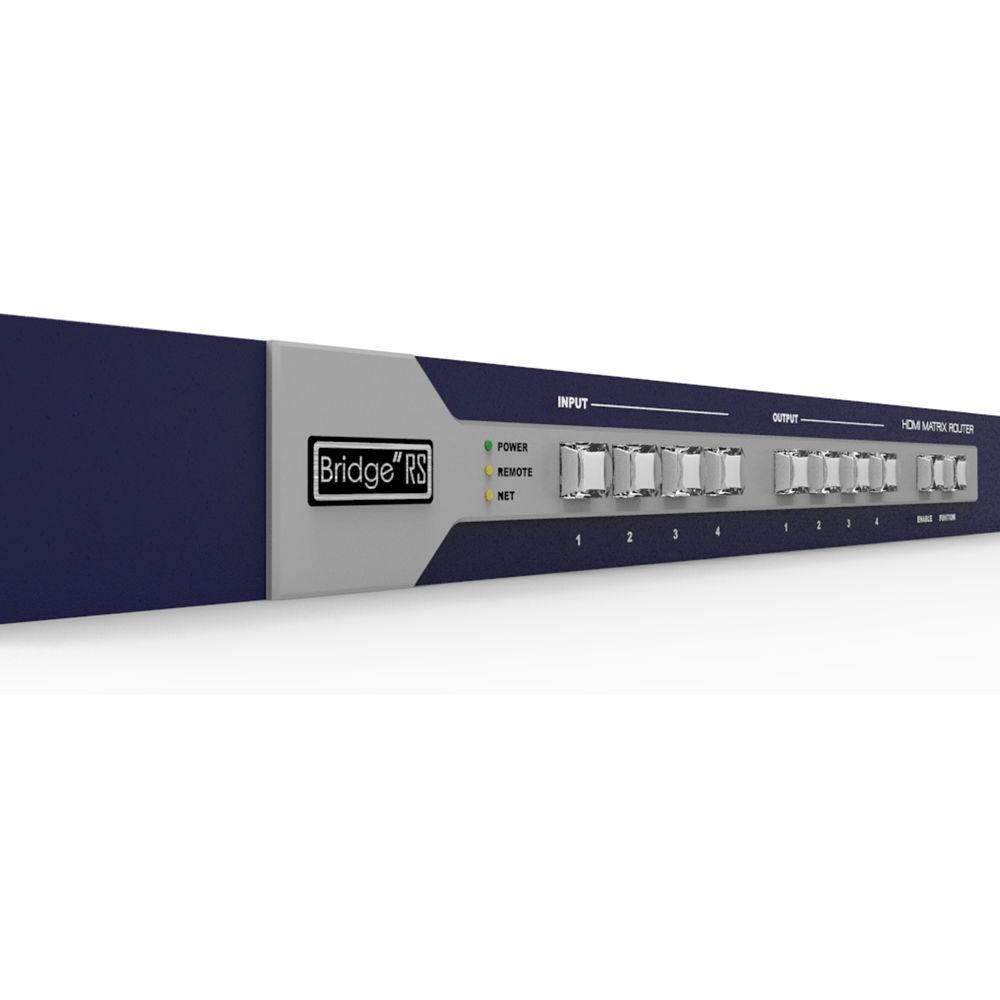

Product description With the DIGITAL FORECAST Bridge RS HDMI 4x4 Matrix Switcher up to four HDMI sources can be sent to any combination of four HDMI outputs. Input resolutions can be converted to conform to the connected displays, and a multiview option is available as well. Conversion and multiview modes can be engaged using the built-in DIP switches. Dual RJ45 ports can be connected for either Ethernet or RCP remote control. Local control can be taken using the comprehensive front-panel buttons. In the Box DIGITAL FORECAST Bridge RS HDMI 4x4 Matrix Switcher Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DIGITAL FORECAST Bridge RS HDMI 4x4 Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDIGITAL FORECAST RS HDMI 4X4 Specs | Inputs | 4 x HDMI type A, v1.3 | | Outputs | 4 x HDMI type A, v1.3 | | Video Format Support | 1080p 24/25/30/50/59.94/60
1080PsF 24
1080i 50/59.94/60
720p 24/25/30/50/59.94/60
576p
480p
NTSC
PAL | | Other I/O | 1 x RJ45, Ethernet
1 x RJ45, RCP
1 x USB Mini-B | | Power Consumption | 13 W | | Operating Temperature | -4 to 158°F / -20 to 70°C | | Humidity | 0-95%, non-condensing | | Dimensions | 19 x 6.2 x 1.7" / 48.3 x 15.7 x 4.4 cm | | Weight | 2.2 lb / 990 g |
