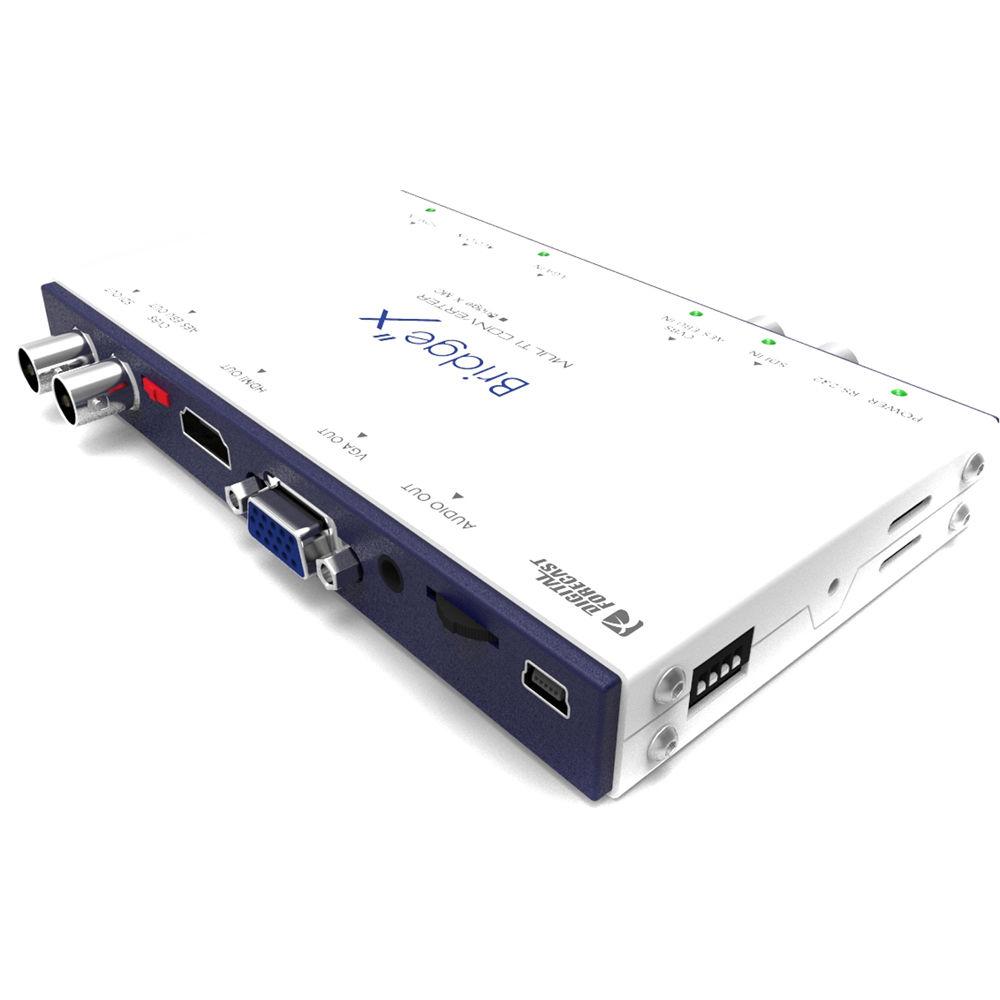

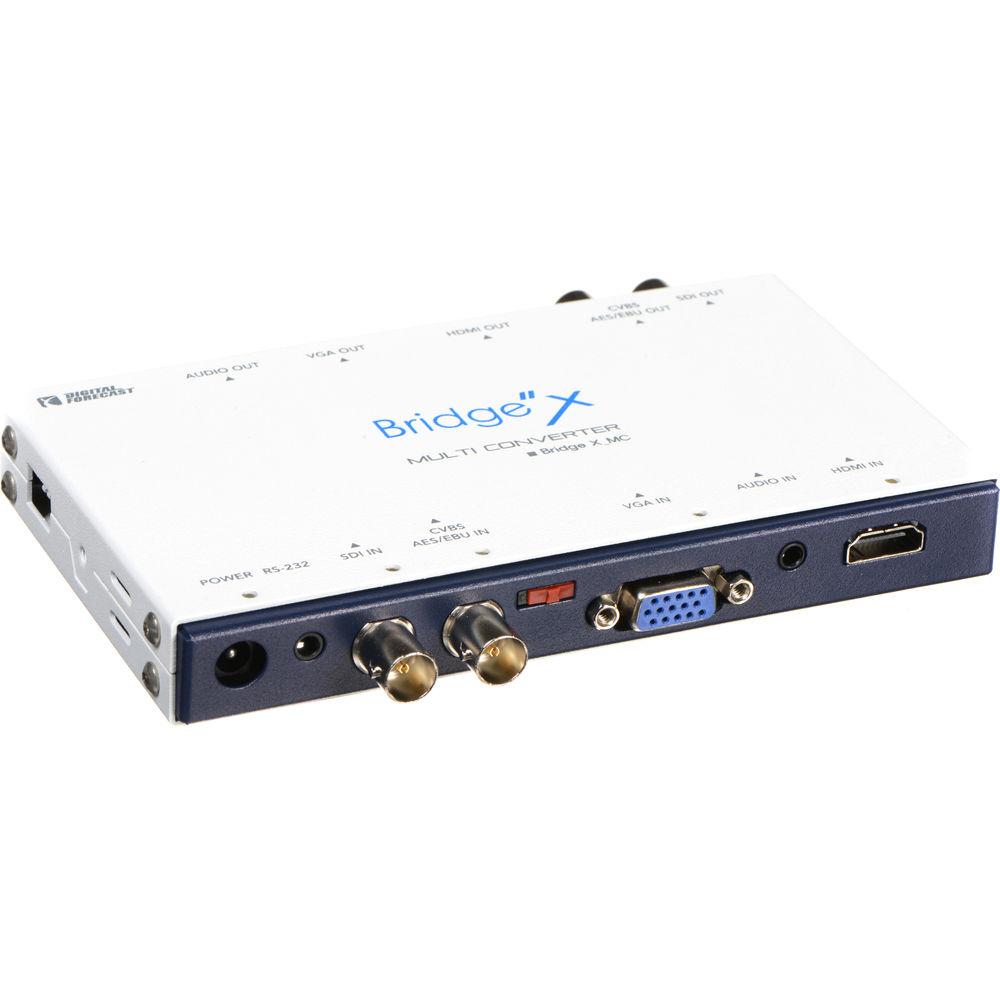

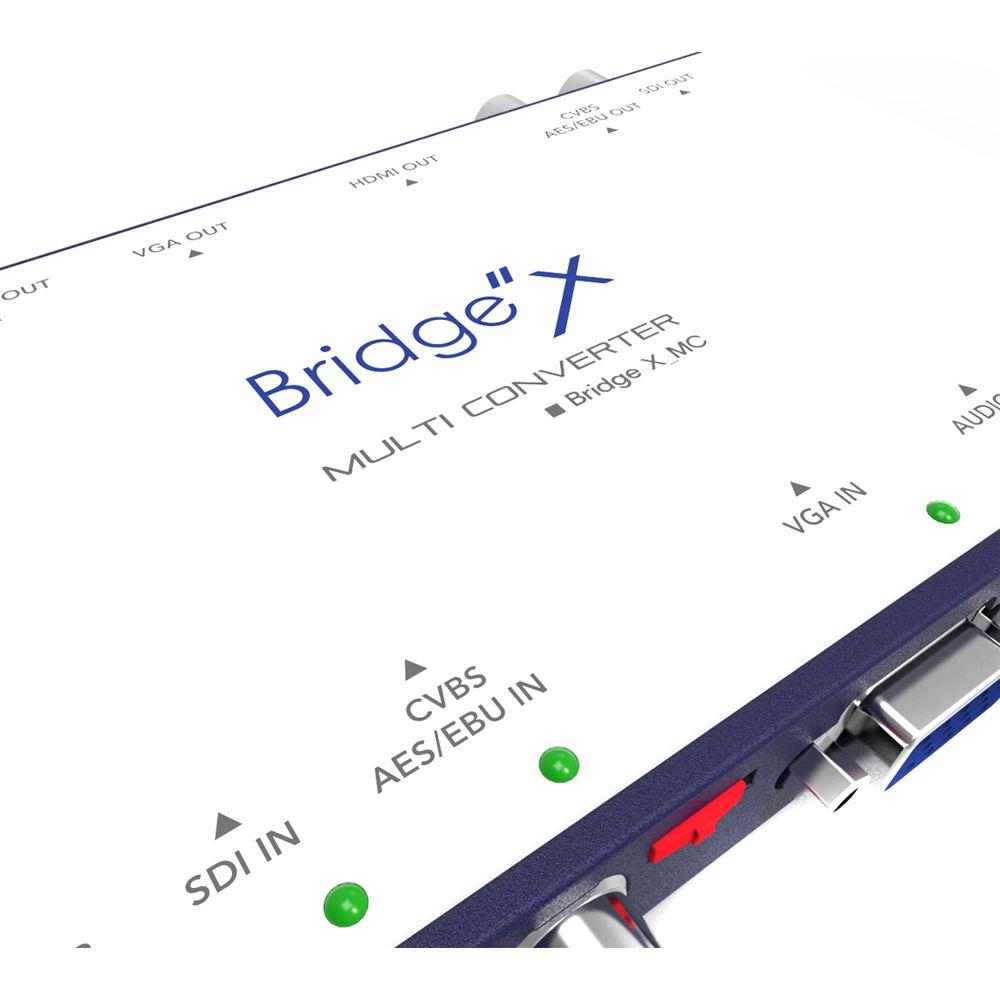

User Manual for DIGITAL FORECAST Bridge X_MC Multi-Converter Click to enlarge the picture
Contents of the user manual for the DIGITAL FORECAST Bridge X_MC Multi-Converter
- Product category: Signal Converters DIGITAL FORECAST
- Brand: DIGITAL FORECAST
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DIGITAL FORECAST Signal Converters
 |
User manual for the DIGITAL FORECAST Bridge X_MC Multi-Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DIGITAL FORECAST product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DIGITAL FORECAST user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DIGITAL FORECAST product will considerably shorten its lifespan!
|
Product description Supporting many common SD and HD, as well as Digital and Analog video standards, the DIGITAL FORECAST Bridge X_MC Multi-Converter can be used to convert almost any source to an acceptable video format compatible with your workflow. Digital I/O include SDI and HDMI for video, and AES/EBU over BNC for audio. Analog I/O is comprised of VGA and composite over BNC for video (uses the same BNC connections for AES/EBU, switchable on the front panel), and 3.5mm stereo for audio. Audio can be embedded from the analog or digital inputs into the video stream or de-embedded from the video signals and output separately from the video stream. Progressive video sources can also be scan-converted for broadcast. All outputs on the converter are active, regardless of input source. This way, multiple video conversions can be made simultaneously, sending the proper signal to almost any kind of display, projector, or recorder. Uses for the Bridge X_MC include broadcast studios as well as A/V installations handling multiple input source types. When installed, the RS-232 connection can be used for software control, permitting remote settings adjustments. OSD menu control is also available. UPC: 704006295537 In the Box DIGITAL FORECAST Bridge X_MC Multi-Converter Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DIGITAL FORECAST Bridge X_MC Multi-Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDIGITAL FORECAST X_MC Specs | Inputs | 1 x Coaxial power
1 x 3.5mm RS-232
1 x BNC, SD/HD/3G-SDI
1 x BNC, composite video, AES/EBU
1 x VGA
1 x 3.5mm stereo analog audio
1 x HDMI Type A | | Outputs | 1 x BNC, SD/HD/3G-SDI
1 x BNC, composite video, AES/EBU
1 x HDMI Type A
1 x VGA
1 x 3.5mm stereo analog audio | | HDMI Format Support | v1.3 | | Resolution Support | 1080p 23.98/24/25/29.97/30/59.94/60
1080i 50/59.94/60
720p 50/59.94/60
NTSC
PAL | | Power Supply | 12 VDC | | Power Consumption | 10 W | | Environmental | Operating Temperature: -4 to 158°F / -20 to 70°C
Humidity: 0-95% RH, non-condensing | | Dimensions | 5.7 x 3.2 x 0.8" / 144 x 81 x 20 mm | | Weight | 0.5 lb / 210 g | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 7.3 x 5.2 x 3.0" |
