User Manual for DIGITAL FORECAST Bridge X_SH SDI to HDMI Converter Click to enlarge the picture
Contents of the user manual for the DIGITAL FORECAST Bridge X_SH SDI to
- Product category: Signal Converters DIGITAL FORECAST
- Brand: DIGITAL FORECAST
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DIGITAL FORECAST Signal Converters
 |
User manual for the DIGITAL FORECAST Bridge X_SH SDI to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DIGITAL FORECAST product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DIGITAL FORECAST user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DIGITAL FORECAST product will considerably shorten its lifespan!
|

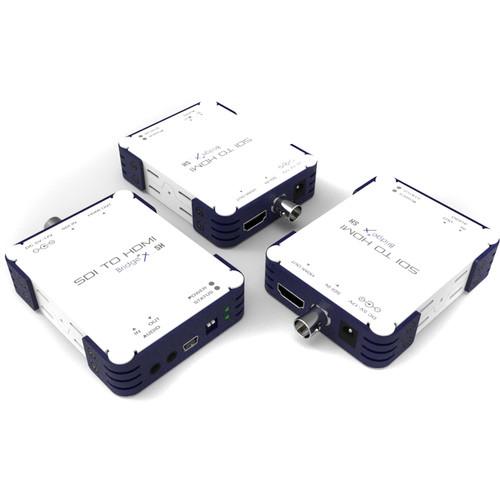

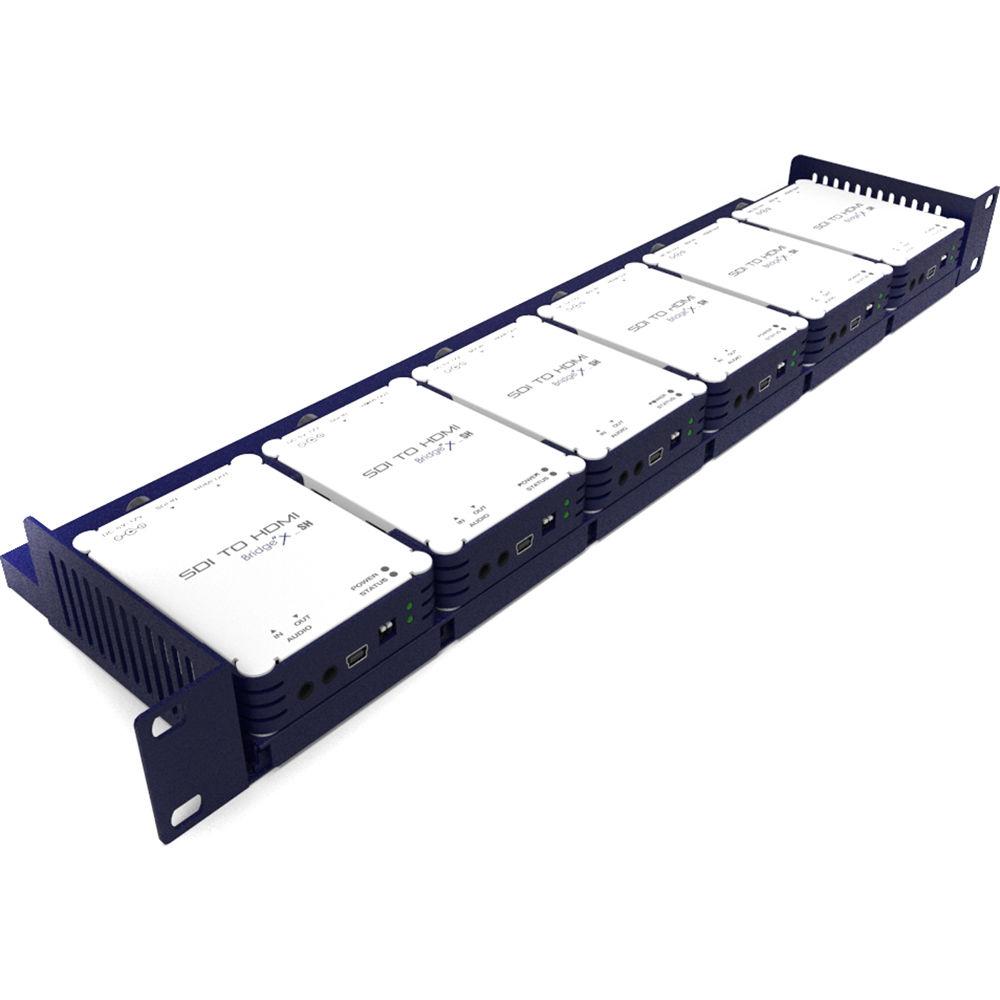

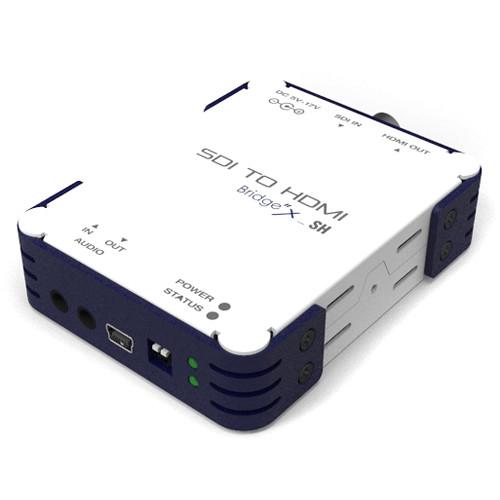

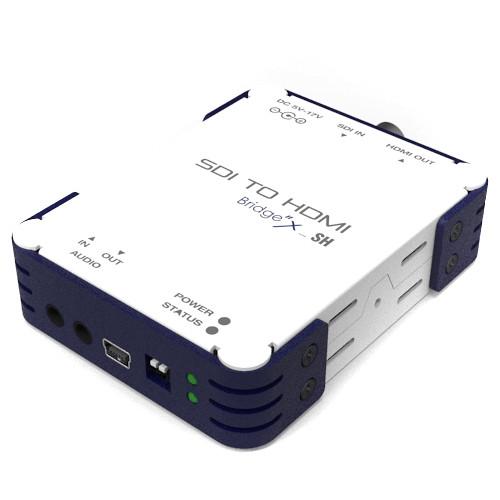

Product description Convert and SDI video signal to HDMI with near-zero delay using the DIGITAL FORECAST Bridge X_SH SDI to HDMI Converter. Supporting resolutions up to 1080p at 60 fps and down to NTSC or PAL, the Bridge X_SH can find its way into SD or HD workflows. With this converter, broadcast grade SDI signals can now be monitored on consumer televisions or monitors. Audio embedding and de-embedding is another function of this adapter. Using the 3.5mm analog stereo jacks, audio can be stripped from the SDI signal and output from the 3.5mm output, or added to the HDMI output from the 3.5mm input. For equipment installations, a separately available bracket can hold up to 6 units in a standard 19" equipment rack. UPC: 704006295421 In the Box DIGITAL FORECAST Bridge X_SH SDI to HDMI Converter Universal Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DIGITAL FORECAST Bridge X_SH SDI to HDMI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDIGITAL FORECAST X_SH Specs | Inputs | 1 x BNC, SD/HD/3G-SDI
1 x 3.5 mm analog stereo audio
1 x USB
1 x Coaxial DC power | | Outputs | 1 x HDMI Type A
1 x 3.5 mm analog stereo audio | | HDMI Format Support | v1.3 | | SDI Format Support | SMPTE-424M: 1080p 59.94/60
SMPTE-292M: 1080p 23.98/24/25/29.97/30
SMPTE-274M: 1080i 50/59/94/60
SMPTE-296M: 720p 50/59.94/60
SMPTE-125M: NTSC/PAL | | Signal Level | 800 mV p-p ±50 mV | | Power Supply | 5-17 VDC | | Power Consumption | Nominal: 3.5 W
Maximum: 4 W | | Environmental | Operating Temperature: -4 to 158°F / -20 to 70°C Humidity: 0-95% RH, non-condensing | | Dimensions | 2.7 x 3.5 x 0.9" / 70 x 90 x 22 mm | | Weight | 3.5 oz / 100 g | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 4.8 x 4.3 x 1.2" |
