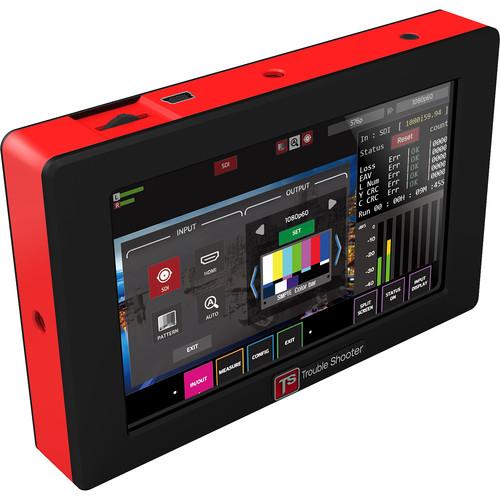

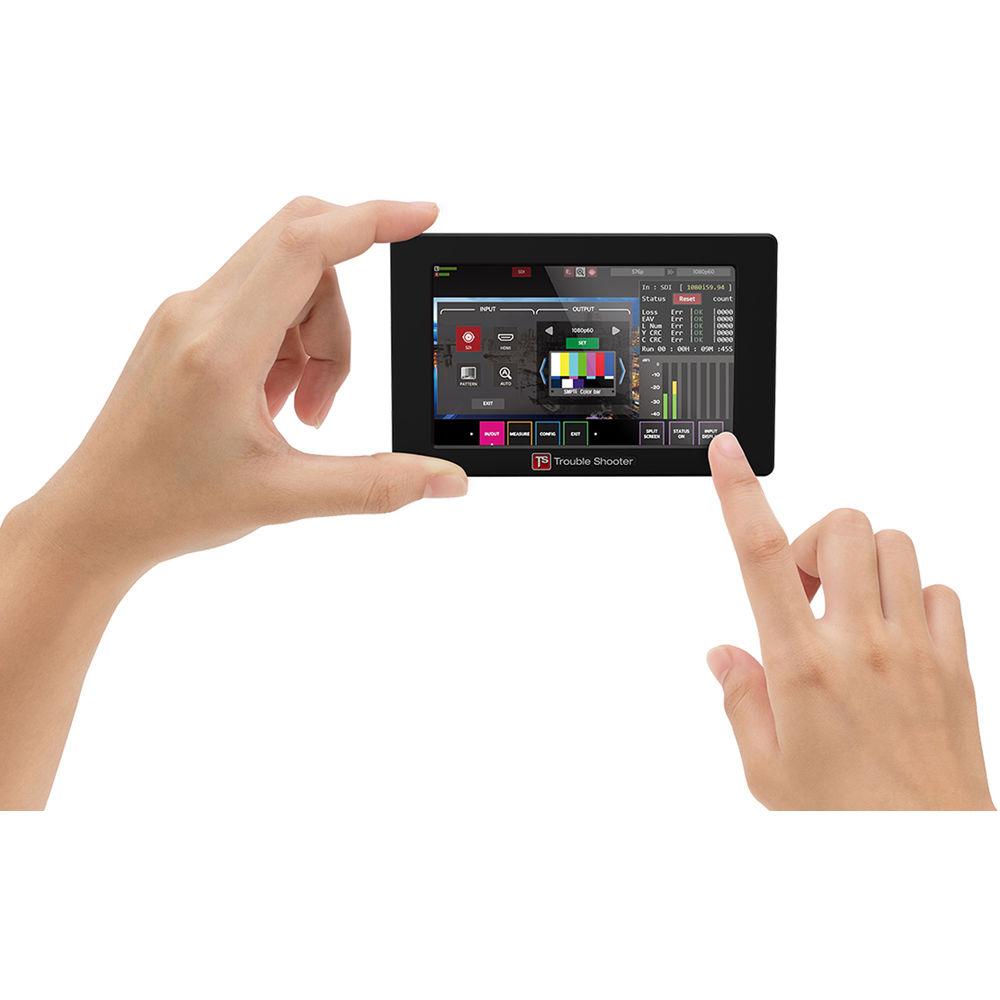

Product description In a compact and portable form factor, the DIGITAL FORECAST Bridge X_TS mini provides SDI/HDMI up/down/cross-conversion and signal measurement functions for up to 1080p60 signals. The lightweight device allows signal integrity checks, up to 8 channels of audio level metering, and simultaneous test pattern generation and measurement. Up to 1080p60 resolution input and output is supported over 3G/HD/SD-SDI and HDMI 1.3 connections.

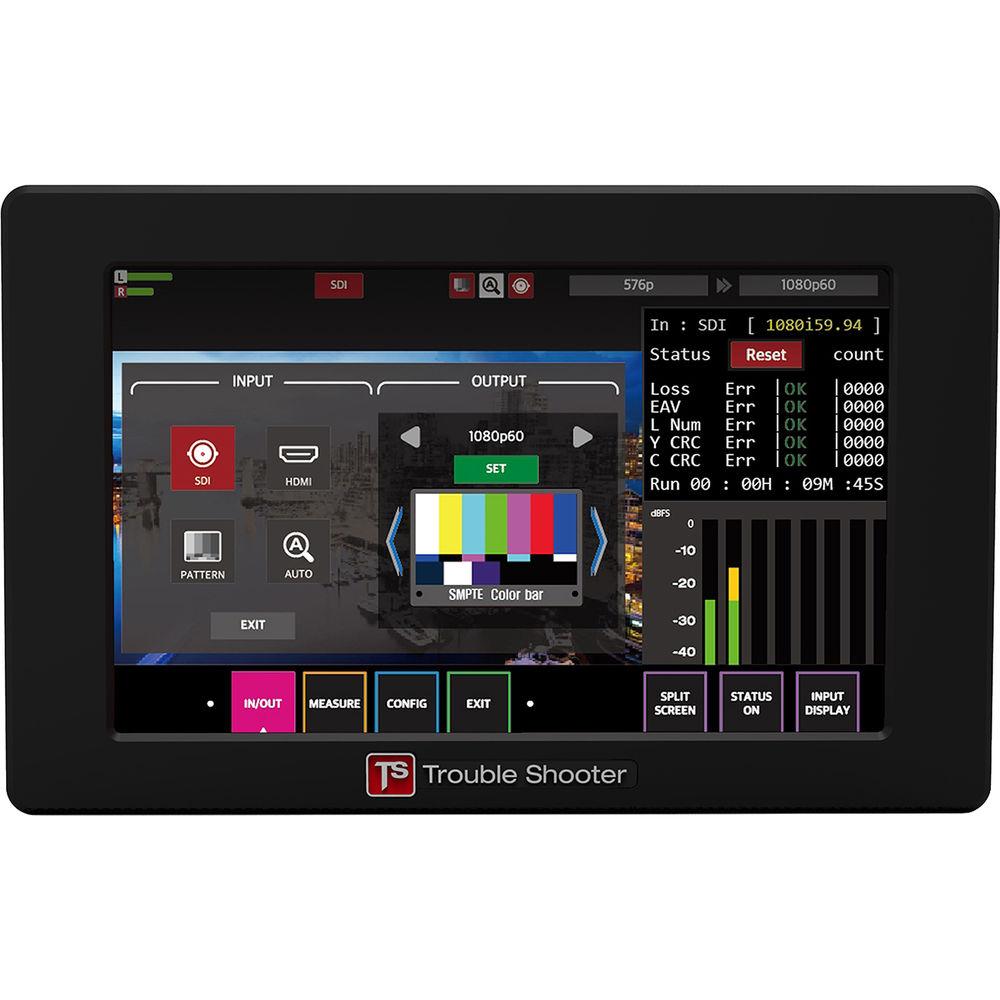

An intuitive workflow via the 5" screen lets you select the signal type to display, monitor waveform, vectorscope, jitter, and other analysis factors, set the output resolution and frame rate, and more. The signal can be viewed in standard full screen mode or in split screen mode where the video is displayed on the left side and measurement details on the right.
A power supply is included with international plug adapters, but optional L-Series and LP-E6 battery plates are also supported on the rear for portable use (see Accessories tab). A 1/4"-20 mounting thread is provided on the bottom. - Key Feature
-
- Up/down/cross-conversion between SDI/HDMI and HDMI/SDI signals
- Signal integrity checks
- Audio level metering up to 8 channels
- Test pattern generator (8 types)
- Simultaneous test pattern generation and measurement
- 3G/HD/SD-SDI and HDMI 1.3 inputs and outputs
- Up to 1080p60 resolution I/O
- 5" LCD with 800 x 480 resolution
- Audio monitoring headphone output
- Eye pattern diagram of the SDI input
- SDI signal integrity check (Loss, TSR, CRC, line number)
- HDMI signal integrity check (Loss, resolution, HDCP)
- Indicates whether HDCP is activated
- 1/4"-20 mounting thread
- Power supply included
- 7-17 VDC operation range
- Optional L-series and LP-E6 battery plates supported
In the Box DIGITAL FORECAST Bridge X_TS mini Universal Power Supply with International Plug Adapters Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DIGITAL FORECAST Bridge X_TS mini in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDIGITAL FORECAST Bridge X TS Mini Specs | | | Video Input Connectors | 1 x BNC (3G-SDI / HD-SDI / SD-SDI)
1 x HDMI (HDMI 1.3) | | Input Video Format | SDI
1080p: 24/25/30/50/59.94/60 fps
1080PsF: 24 fps
1080i: 50/59.94/60 fps
720p: 24/25/30/50/59.94/60 fps
NTSC: 29.97 fps
PAL: 25 fps
576p
480p
HDMI
1080p: 24/25/30/50/59.94/60 fps
1080PsF: 24 fps
1080i: 50/59.94/60 fps
720p: 24/25/30/50/59.94/60 fps
NTSC: 29.97 fps
PAL: 25 fps
576p
480p | | | | Video Output Connectors | 1 x BNC (3G-SDI / HD-SDI / SD-SDI)
1 x HDMI | | Output Video Format | SDI
1080p: 24/25/30/50/59.94/60 fps
1080PsF: 24 fps
1080i: 50/59.94/60 fps
720p: 24/25/30/50/59.94/60 fps
NTSC: 29.97 fps
PAL: 25 fps
576p
480p
HDMI
1080p: 24/25/30/50/59.94/60 fps
1080PsF: 24 fps
1080i: 50/59.94/60 fps
720p: 24/25/30/50/59.94/60 fps
NTSC: 29.97 fps
PAL: 25 fps
576p
480p | | Audio Output Connectors | 1 x 1/8" / 3.5 mm TRS | | | | Display Size | 5" | | Screen Resolution | 800 x 480 | | | | Power Connector | 1 x Barrel (12 VDC) Input | | Power Consumption | 9 W 10 W Maximum | | | | Operating Temperature | 32 to 158°F / 0 to 70°C | | Operating Humidity | 0 to 95% | | | | Dimensions | 5.47 x 3.46 x 0.87" / 13.9 x 8.8 x 2.2 cm | | Weight | 0.7 lb / 325 g | | | | Package Weight | 1.535 lb | | Box Dimensions (LxWxH) | 7.3 x 5.3 x 3.2" |
