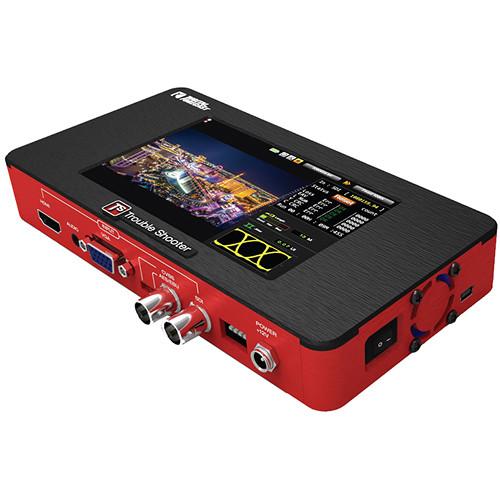

Product description A compact device with many functions, the DIGITAL FORECAST Bridge X_TS Trouble Shooter can be a signal converter, format converter, and a test-pattern generator. SDI, HDMI, VGA, component, and composite video formats are supported on input and output. Any input can be converted to any available output, and all outputs are simultaneously active. Analog stereo and AES/EBU audio embedding is supported. The front of the Bridge X_TS features a touchscreen LCD for monitoring incoming and outgoing video signals, audio levels, SDI metrics, and more. Power can be supplied using the included power adapter, or with optional Sony batteries with a separately available battery plate. Accessory adapter cables for Component to VGA video and RCA to 3.5mm audio are also included. General Features - Up/Down/Cross/Scan converter
- Wide video format support
- SDI, HDMI, VGA, Component, Composite, AES/EBU, and analog audio support
- Analog audio embedding/de-embedding
- User-selectable output format
- Audio level monitoring (up to 8-channels)
- Supports separately available Sony batteries with separately available battery plate
UPC: 704006295483 In the Box DIGITAL FORECAST Bridge X_TS Trouble Shooter Basic Kit Power Supply Component to VGA Adapter Stereo RCA to 3.5mm Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DIGITAL FORECAST Bridge X_TS Trouble Shooter Basic Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDIGITAL FORECAST X-TS Specs | Screen Size | 5" / 12.7 cm | | Screen Resolution | 800 x 480 | | Inputs | 1 x Coaxial power
1 x BNC, SD/HD/3G-SDI
1 x BNC, composite video, AES/EBU
1 x VGA
1 x 3.5 mm stereo analog audio
1 x HDMI Type A | | Outputs | 1 x BNC, SD/HD/3G-SDI
1 x BNC, composite video, AES/EBU
2 x HDMI Type A (1 mirror output)
1 x VGA
1 x 3.5 mm stereo analog audio | | HDMI Format Support | v1.3 | | Resolution Support | 1080p 23.98/24/25/29.97/30/59.94/60
1080i 50/59.94/60
720p 50/59.94/60
NTSC
PAL | | SMPTE Standards Supported | SMPTE-424M, SMPTE-292M, SMPTE-274M, SMPTE-296M, SMPTE-125M | | Power Supply | 12 VDC | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 11.7 x 10.2 x 4.6" |
