User Manual for Digital Juice 7" Articulating Arm with Shoe Mount Adapter

Click to enlarge the picture
Digital Juice 7" Articulating Arm with Shoe Mount Adapter Contents of the user manual for the Digital Juice 7" Articulating Arm with
  • Product category: Articulating Arms Digital Juice
  • Brand: Digital Juice
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Digital Juice Articulating Arms

Digital Juice 7" Articulating Arm with Shoe Mount Adapter Digital Juice 7" Articulating Arm with Shoe Mount Adapter Digital Juice 7" Articulating Arm with Shoe Mount Adapter Digital Juice 7" Articulating Arm with Shoe Mount Adapter Digital Juice 7" Articulating Arm with Shoe Mount Adapter Digital Juice 7" Articulating Arm with Shoe Mount Adapter Digital Juice 7" Articulating Arm with Shoe Mount Adapter
User manual for the Digital Juice 7" Articulating Arm with contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Digital Juice product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Digital Juice user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Digital Juice product will considerably shorten its lifespan!



Product description

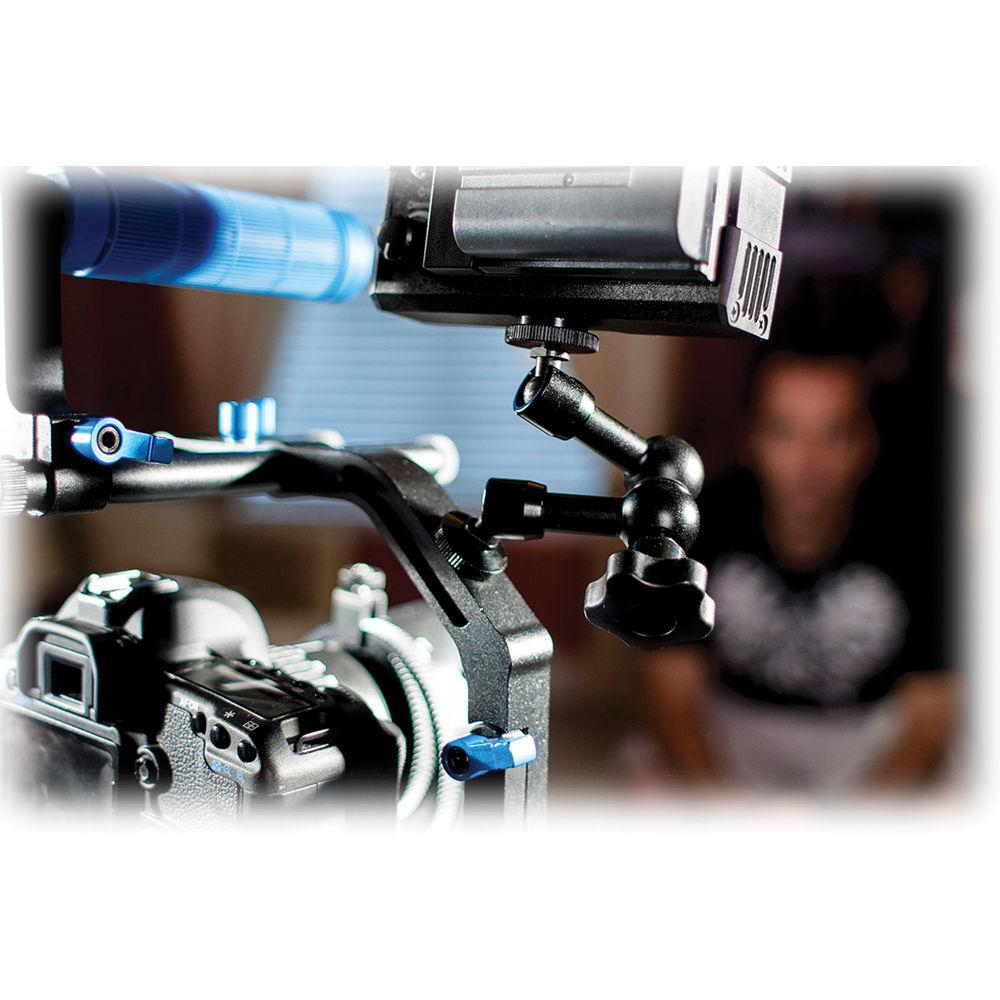

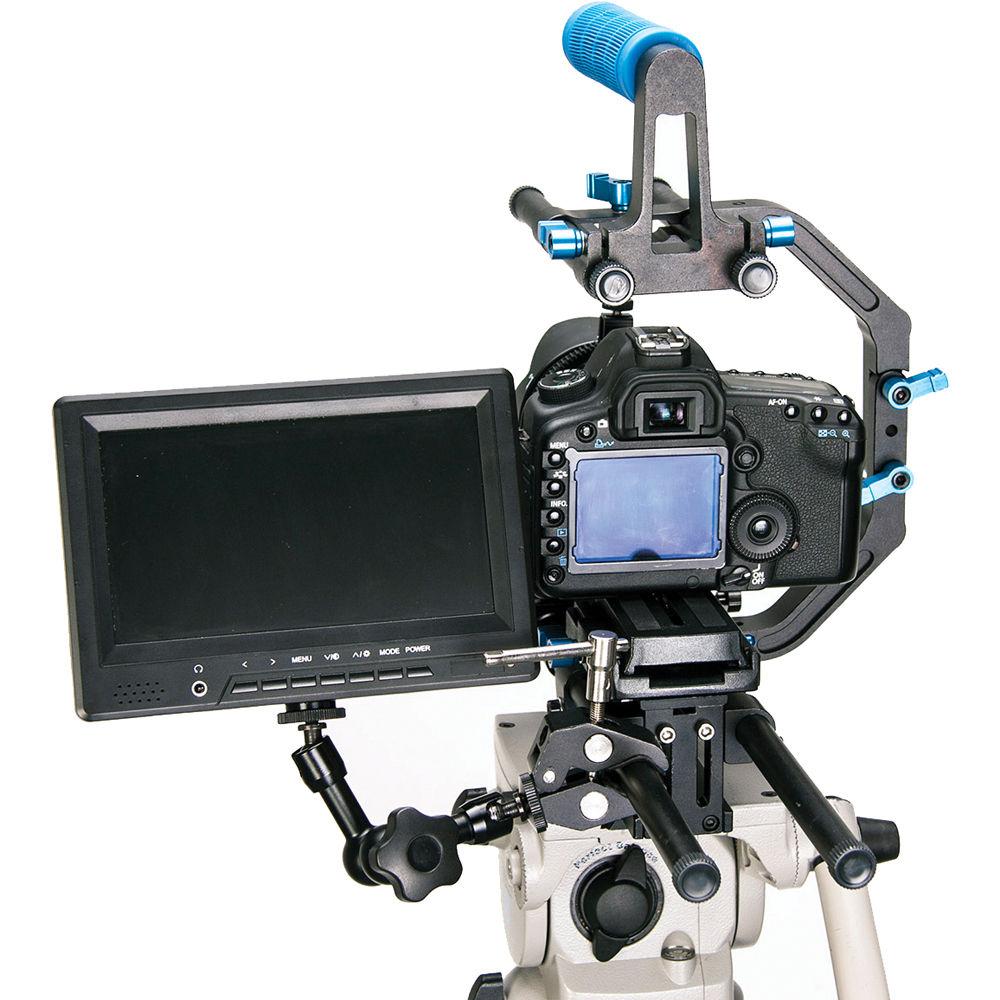

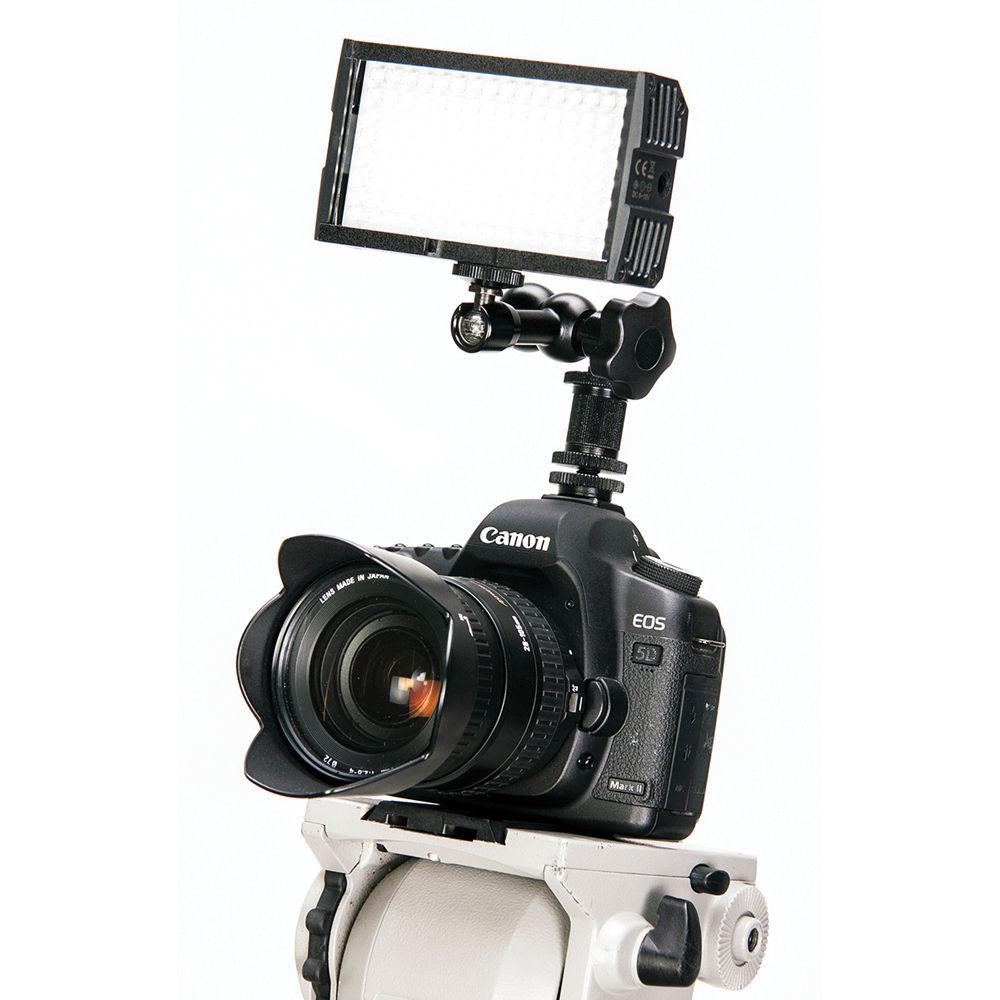

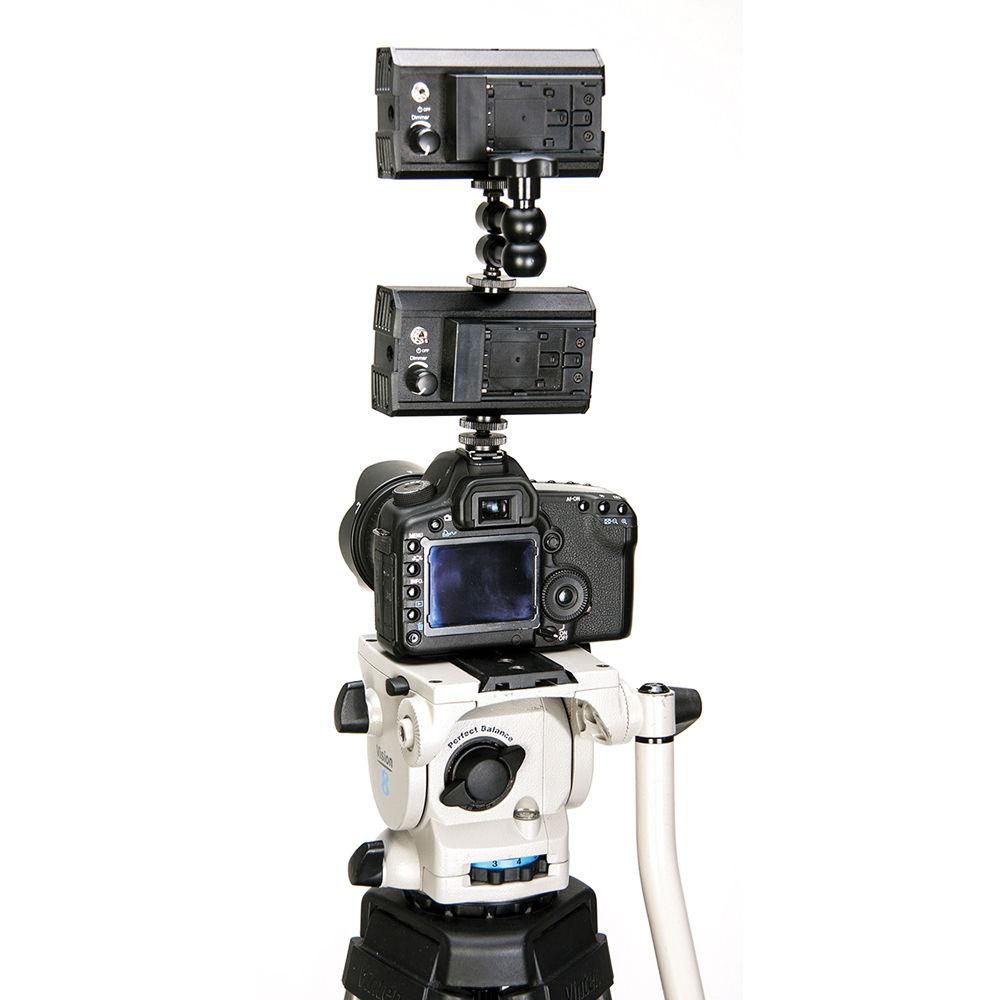

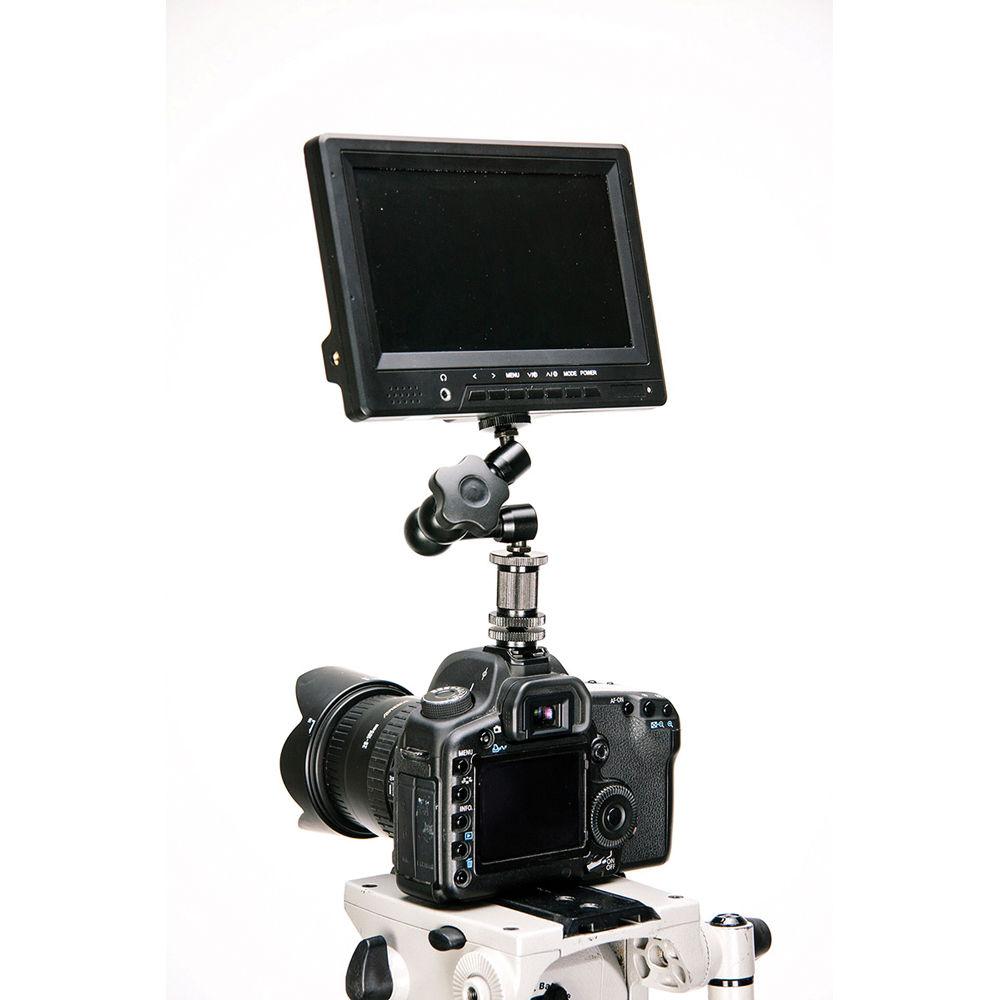

The Digital Juice 7" (17.78 cm) Articulating Arm with Shoe Mount Adapter is a sturdy, compact, and multi-purpose jointed accessory arm that can be used to mount displays, lights, microphones, or other small accessories on a prosumer, tripods, C-stand, as well as on professional camcorders, rigs, and cameras. This articulating arm provides horizontal, vertical, and tilt adjustments for a wide variety of attached accessories. For example, you can attach portable LED lights and monitors to the top of your camera to improve your view of the action and light it more efficiently. Clamp the arm to your tripod to hold your viewfinder monitor or extra lighting and easily adjust for any angle or height required. Because of its small size, this 7" (17.78 cm) arm reduces the torque on your hot shoe, clamp, and arm joints, especially when used with a heavy item. This results in less shaking when shooting as well as less wear and tear on your gear. It is also a great option for stacking together several Digital Juice MiniBurst 128 and 256 LED lights. You can attach the articulating arm to a wide range of cameras via the 1/4-20 top and bottom screws or the included shoe mount adapter.

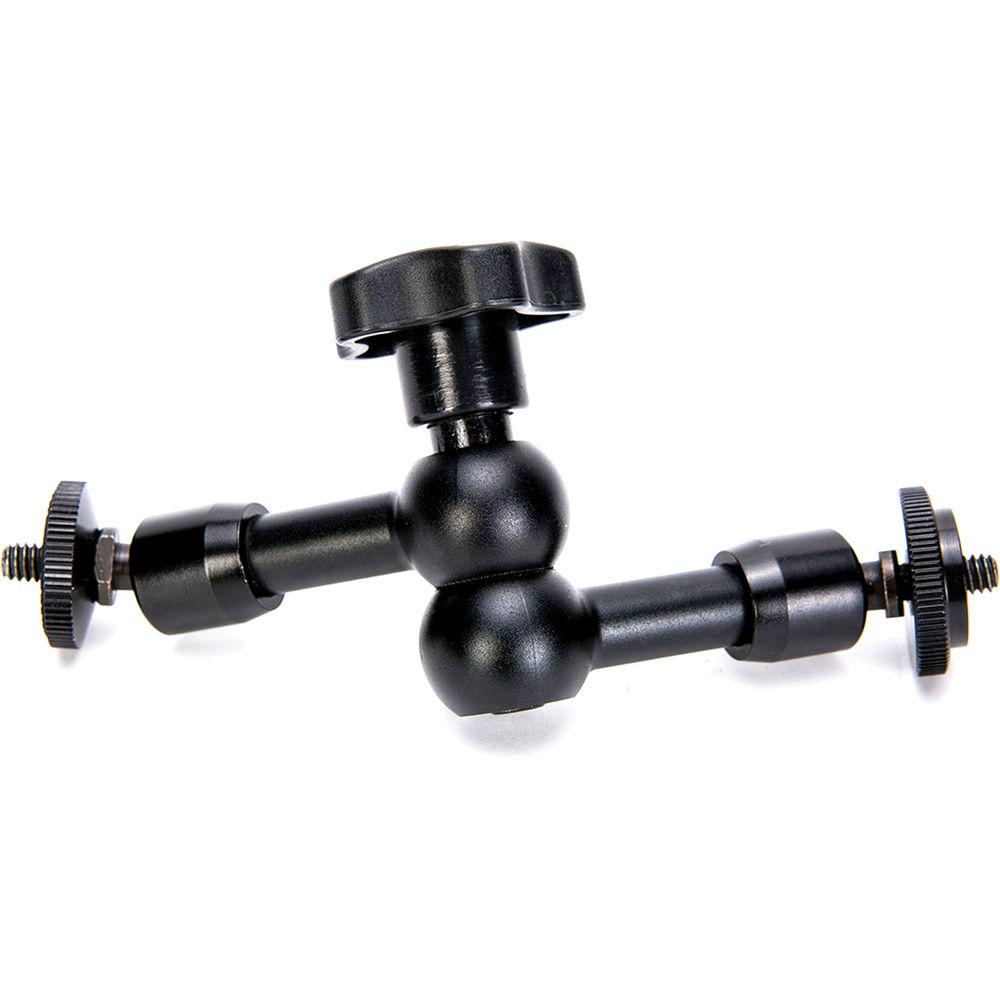

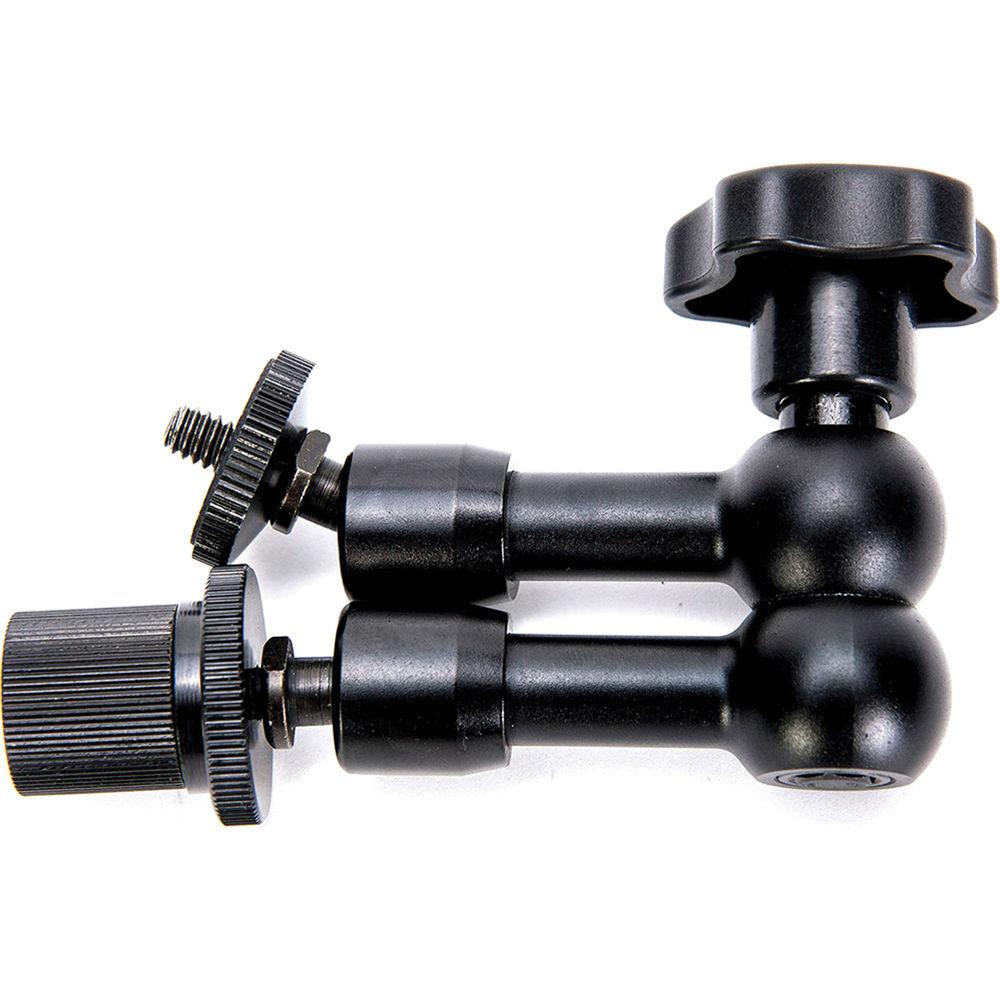

The unit consists of 2 short pivoting arms of equal length on a central joint. At the end of each arm is another pivoting joint with a 1/4-20 screw mount end. Each joint can be adjusted independently and then all 3 joints can be simultaneously locked down using the single central locking knob. Either end of the articulating arm can be used to attach accessories or to mount the arm to your gear. To adjust the positioning of accessories connected to the arm, you just have to loosen the central locking knob, adjust the position of all the 3 pivoting joints, and then lock down the adjustment by re-tightening the center knob, which affects all the 3 joints so they remain in the desired position. With equal length on both sides of the center locking joint, the 7-inch Digital Juice Articulating Arm has better strength and balance and can hold accessories up to 5 lb in place firmly and easily. Because the arm unit is so lightweight (7 oz / 198 g), it is extremely portable and adding several such arms to your camera bag will give you flexibility without weighing you down.

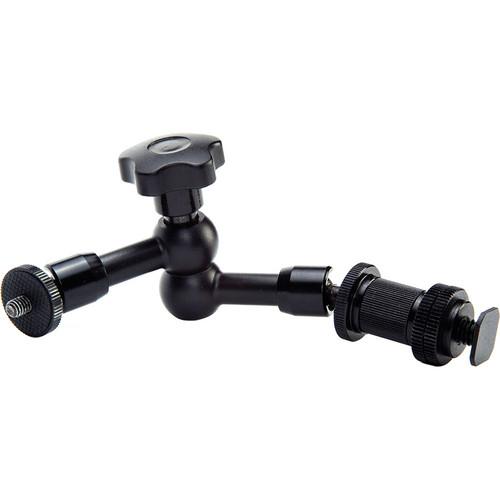

Moving a mounted display or light on multiple axes is quick and easy with a simple twist of the central adjustment knob, allowing you to find an optimal viewing or lighting angle. The included shoe mount adapter can be attached to either end of the arm and fits on any standard shoe mount to hold accessories, lights, or monitors above the camera and out of your sight lines. The bottom section of the shoe mount adapter also unscrews so that it can be used separately to mount accessories directly to the camera if needed. Moreover, attaching the articulating arm to the Digital Juice Mini Clamp (sold separately) allows for added flexibility, so you can attach accessories to your system via the arm from a tripod leg, camera rig rails, a table edge, or even a tree branch when shooting on the go.

  • Used to mount displays, lights, microphones, and other small accessories on professional camcorders, and rigs
  • Articulating arm provides horizontal, vertical, and tilt adjustments for a wide variety of attached accessories
  • Compact design of the arm results in less shaking when shooting as well as less wear and tear of your gear
  • Arm can hold accessories up to 5 lb (2.26 kg) firmly and easily in place
UPC: 717927232604 In the Box Digital Juice 7" (17.78 cm) Articulating Arm with Shoe Mount Adapter
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Digital Juice 7" Articulating Arm with Shoe Mount Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Digital Juice ARTARM2 Specs

    Length With Shoe Mount Adapter: 7.25" (18.4 cm)
    Without Shoe Mount Adapter: 5.875" (14.9 cm), fully extended
    Mounting Compatibility 1/4-20 screw mounts and a shoe mount
    Maximum Load Capacity Up to 5 lb (2.27 kg)
    Materials Durable solid aluminum construction
    Weight 7 oz (198 g)
    Package Weight 0.5 lb
    Box Dimensions (LxWxH) 5.6 x 3.1 x 2.1"
