User Manual for Digital Juice Aura Light DJ-110HM Fluorescent Light Fixture Click to enlarge the picture
Contents of the user manual for the Digital Juice Aura Light DJ-110HM Fluorescent
- Product category: Fluorescent Lights Digital Juice
- Brand: Digital Juice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Juice Fluorescent Lights
|
User manual for the Digital Juice Aura Light DJ-110HM Fluorescent contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Juice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Juice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Juice product will considerably shorten its lifespan!
|

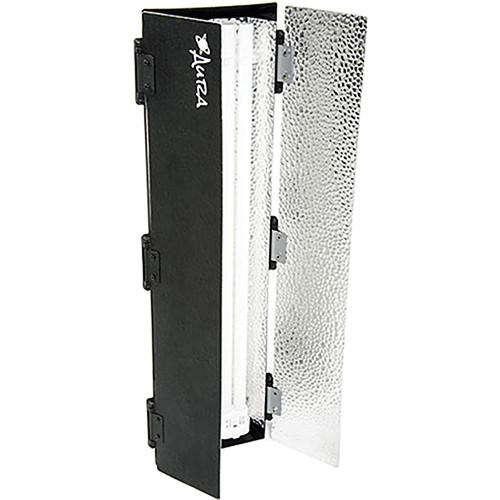

Product description The 100-130VAC Digital Juice Aura Light DJ-110HM Fluorescent Light Fixture is a compact, cool running, and energy-efficient constant light source that delivers a 500W hot light equivalent output. Two 55W Biax fluorescent lamps are pre-installed to deliver daylight-balanced 5400K light. The energy-efficient and cool to the touch design enables this fixture's use in tight locations where space and heat dissipation are of importance and the soft, even, and flicker-free quality of light make it ideal for video applications.
A built-in gooseneck mounting arm facilitates attachment to any light stand with a 5/8" stud and the attached two-way barn doors enable greater control over the direction and amount of light from the fixture. - Compact fluorescent fixture delivers a 500W hot light equivalent output of soft, even, flicker-free light.
- Energy-efficient, cool running, and compact design make this fixture well-suited for use in smaller, cramped locations.
- Includes two installed 55W Biax fluorescent lamps to provide clear 5400K daylight-balanced light.
- Built-in two-way barn doors enable control over the directional quality and amount of light emitting from the fixture.
- An attached gooseneck mounting arm with 5/8" attachment permits flexible positioning atop most standard light stands.
UPC: 717927232871 In the Box Digital Juice Aura Light DJ-110HM Fluorescent Light Fixture (100-130VAC) 2 x Biax 55W / 5400K Fluorescent Lamp for Aura Lighting Fixtures dyeadwqbfqxtdycbxfrscwyetraa Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Juice Aura Light DJ-110HM Fluorescent Light Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Juice Aura Specs | Input Voltage | 100-130 VAC | | Lamps | 2x 55 W Biax fluorescent lamps (included)
CRI: >90
Brightness: 2250 lux at 3' / 0.9 m
Color Temperature: 5400 K
Frequency Range: 25-50 kHz
Lamp Life: Approx. 6000 hours | | Dimming | No | | Power Draw | 110.6 W @ 116 VAC | | Mounting | Attached gooseneck arm with 5/8" / 16 mm attachment end | | Weight | 4 lb / 1.8 kg | | Dimensions | 22.3 x 6.6 x 2.9" / 56.6 x 16.8 x 7.4 cm | | | | Package Weight | 5.2 lb | | Box Dimensions (LxWxH) | 24.1 x 12.4 x 4.8" |
