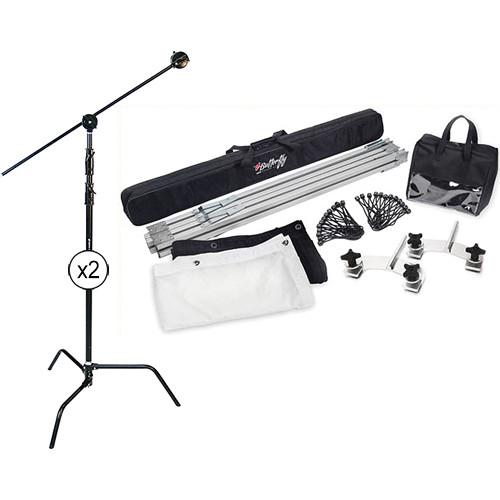

User Manual for Digital Juice Butterfly Frame Kit Bundle Click to enlarge the picture
Contents of the user manual for the Digital Juice Butterfly Frame Kit Bundle
- Product category: Butterfly & Panel Reflector Kits Digital Juice
- Brand: Digital Juice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Juice Butterfly & Panel Reflector Kits
|
User manual for the Digital Juice Butterfly Frame Kit Bundle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Juice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Juice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Juice product will considerably shorten its lifespan!
|
Product description The Digital Juice Butterfly Frame Kit Bundle was put together by to give you has everything you'll need to create large light sources or reflectors. The kit contains 1 each 8x8' Butterfly frame, white artificial silk fabric and black fabric. The frame and the fabrics have their own carry bags and a set of 28 bungee ties is included to secure the fabrics to the frame. Two Frame Clips are included that fit into the included C-Stands and grip heads so that the frame can swivel freely to the optimal angle. The Butterfly Frame has an ingenious design that will have you up, running and shooting in seconds. Unlike conventional frames there's no assembly of the 4 aluminum sides of this frame. Hinged corners allow it to "pop up" just like the smaller PVC frames but with greater structural integrity - a quality you'll appreciate in adverse conditions like windy days. Use the included white artificial silk diffusion material either overhead to soften harsh sunlight or vertically for a reflector or to punch strobe, tungsten or HMI light through. The provided solid black fabric is can be used to flag off the light, use as a background or create contrast with "negative reflectance." Use the included Bungee Cord Set to fasten the grommeted holes on the edges of the screen to the sides of the frame to make the fabric taught. This kit is ideal for small productions or even single shooters. While you can always press an assistant into service to hold the frame, why not use the included accessories to mount it to the kit's C-Stands to create a large tilting screen. The included C-Stand Frame Clamps make it a snap. Made of the same sturdy aluminum that the frame is, each clamp slides onto the frame and is secured by 2 hefty polycarbonate knobs. Pressure plates are built into the jaws of the clamp so that there's no danger of the tightened screw denting the frame. The 5/8" diameter stud at the end of the clamp fits neatly into the grip head atop the C-Stand. The frame can then tilt 360 degrees between the stands. - Digital Juice Butterfly Frame Bundle (8x8') The Digital Juice Butterfly Frame Bundle (8x8') has everything you need to create large light sources, reflect or absorb light and mount the frame to optional C-Stands. The Butterfly Frame has an ingenious design that will have you up, running and shooting in seconds. Unlike conventional frames there's no assembly of the 4 aluminum sides of this frame. Hinged corners allow it to "pop up" just like the smaller PVC frames but with greater structural integrity - a quality you'll appreciate in adverse conditions like windy days. Use the included white artificial silk diffusion material either overhead to soften harsh sunlight or vertically for a reflector or to punch strobe, tungsten or HMI light through. The provided solid black fabric is can be used to flag off the light, use as a background or create contrast with "negative reflectance." Use the included Bungee Cord Set to fasten the grommeted holes on the edges of the screen to the sides of the frame to make the fabric taught This kit is ideal for small productions or even single shooters. While you can always press an assistant into service to hold the frame, why not use the included accessories to mount it to C-Stands to create a large tilting screen? The included C-Stand Frame Clamps make it a snap. Made of the same sturdy aluminum that the frame is, each clamp slides onto the frame and is secured by 2 hefty polycarbonate knobs. Pressure plates are built into the jaws of the clamp so that there's no danger of the tightened screw denting the frame. The 5/8" diameter stud at the end of the clamp fits neatly into an optional grip head atop the C-Stand (purchased separately). The frame can then tilt 360 degrees between the stands. The kit is rounded out by 2 carry bags to hold the frame and its accessories. For complete specs on select items included in this kit please click on the links below: 8x8' Framexavrqacfxzxetysedzz
Black Fabric
White Fabric
C-Stand Clamp Set
Bungee Set - Compact
- While normal frames of this size need a large vehicle for transport, the Digital Juice Butterfly Frame Bundle can be folded up and transported with your other gear with room to spare. Best of all, it can be carried and set up by just one person.
- Includes Bags
- The Butterfly Frame Bundle comes in two bags, one for the black solid and white artificial silk fabric scrims plus the bungee tie-downs, and the other for the 8-segment collapsible frame.
- Multiple Uses
- On location the Butterfly Frame Bundle can help soften sunlight over an area large enough to cover your talent. In a studio situation, you can soften one large light source or you can turn multiple lights into a single soft light. With this kit, you can make almost any light a flattering light. And if you need a negative fill or black background this kit has you covered. The black solid scrim is made of non-reflective fabric that is perfect for studio product shots or for professional looking portraits.
UPC: 717927232956 - 2 x Digital Juice Grip Stand Pro Set (Black, 10.4') The Digital Juice Grip Stand Pro Set is a sturdy base for grip gear or entertainment lighting. The kit is built around a 10.4" C-stand with double risers and a removable base. The two included 3.0" grip heads will accept most grip gear such as flags, gobos, scrims, etc. The set also includes a 40" grip extension arm. Constructed of black painted steel, the unique staggered leg design of the stand allows it to be nested and placed extremely close to other stands on the set. Optional sandbags easily drape over the legs.
- Detachable Spring-Loaded Staggered 3 Leg Turtle Base
- The staggered leg design allows stands to be nested and placed extremely close to one another either on set in multiple lighting setups or when stacked upright for storage. The base can also easily be removed and legs can fold flat for easy storage and transport
- Standard 5/8" Baby Stud with 3.0" Grip Heads with Female 5/8" Receivers
- Using industry standard sizes means greater compatibility with grip and lighting gear. The 5/8" Baby top stud is the standard for lights up to 1,000 watts. The grip heads offer 4 different sized channels for holding a variety of gear and can be used in combination with the grip extension arm for greater flexibility. Ergonomic T-shape handles are used to adjust positioning on all pieces of the set. It breaks down into 5 easy to transport pieces
- Grip Head Positive-Locking Teeth
- Just about any piece of gear can be mounted to the grip head including extension arms, scrims, and flags
- Durable Steel Construction
- All metal construction provides solid support for a wide range of lighting and gear weights, without sacrificing portability. The finish resists all weather conditions for outdoor shooting and will not rust over time
UPC: 717927233267 In the Box - Butterfly Frame Bundle (8x8') xavrqacfxzxetysedzz
- Butterfly Frame - 8x8'
- Butterfly Screen - 8 x 8' (Black)
- Butterfly Screen - 8x8' (White)
- Butterfly C-Stand Frame Clamps (Pair)
- Butterfly Bungee Cord Set (28 Pieces)
- Frame Carry Bag
- Fabric Screen/Bungee Carry Bag
- 1-Year Limited Warranty
- 2 x Grip Stand Pro Set (Black, 10.4')
Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Juice Butterfly Frame Kit Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Digital Juice Butterfly Frame Bundle (8x8')
| Dimensions | Frame open: 8.0 x 8.0 x 0.08' (2.43 x 2.43 x 0.0020 m)
Fabrics: 8.0 x 8.0' (2.43 x 2.43 m)
Frame collapsed: 48 x 5.5 x 3.5" (122 x 14 x 9.0 cm)
Frame carry bag: 50.5 x 6.0 x 4.0" (128 x 15.2 x 10.2 cm)
Fabric screens carry bag - 13.5 x 11 x 7.5" (34.3 x 28 x 19 cm) | | Weight | Butterfly frame in carry bag 16.8 lb (7.6 kg)
Fabric screens and bungee cords in carry bag: 9.8 lb (4.4 kg)
Stand adapter kit: 3.4 lb (1.54 kg) | | | | Box Dimensions (LxWxH) | 53.0 x 14.5 x 12.5" | - 2 x Digital Juice Grip Stand Pro Set (Black, 10.4')
| Load Capacity | 30 lb / 13.6 kg | | Mounting Options | 5/8" Stud | | Maximum Working Height | 125" / 317 cm | | Minimum Working Height | 61" / 155 cm | | Collapsed Height | 56" / 142 cm | | Footprint Diameter | 34" / 86 cm | | Arm Length | 40" / 100 cm | | Accepts Wheels | No | | Air Cushioned | No | | Detachable Base | Yes | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | Material | Steel | | Weight | 15.4 lb / 7.0 kg | | | | Box Dimensions (LxWxH) | 53.0 x 9.5 x 5.0" |
