User Manual for Digital Juice Grip Stand Pro Set Click to enlarge the picture
Contents of the user manual for the Digital Juice Grip Stand Pro Set
- Product category: Light Stands Digital Juice
- Brand: Digital Juice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Juice Light Stands
 |
User manual for the Digital Juice Grip Stand Pro Set contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Juice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Juice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Juice product will considerably shorten its lifespan!
|

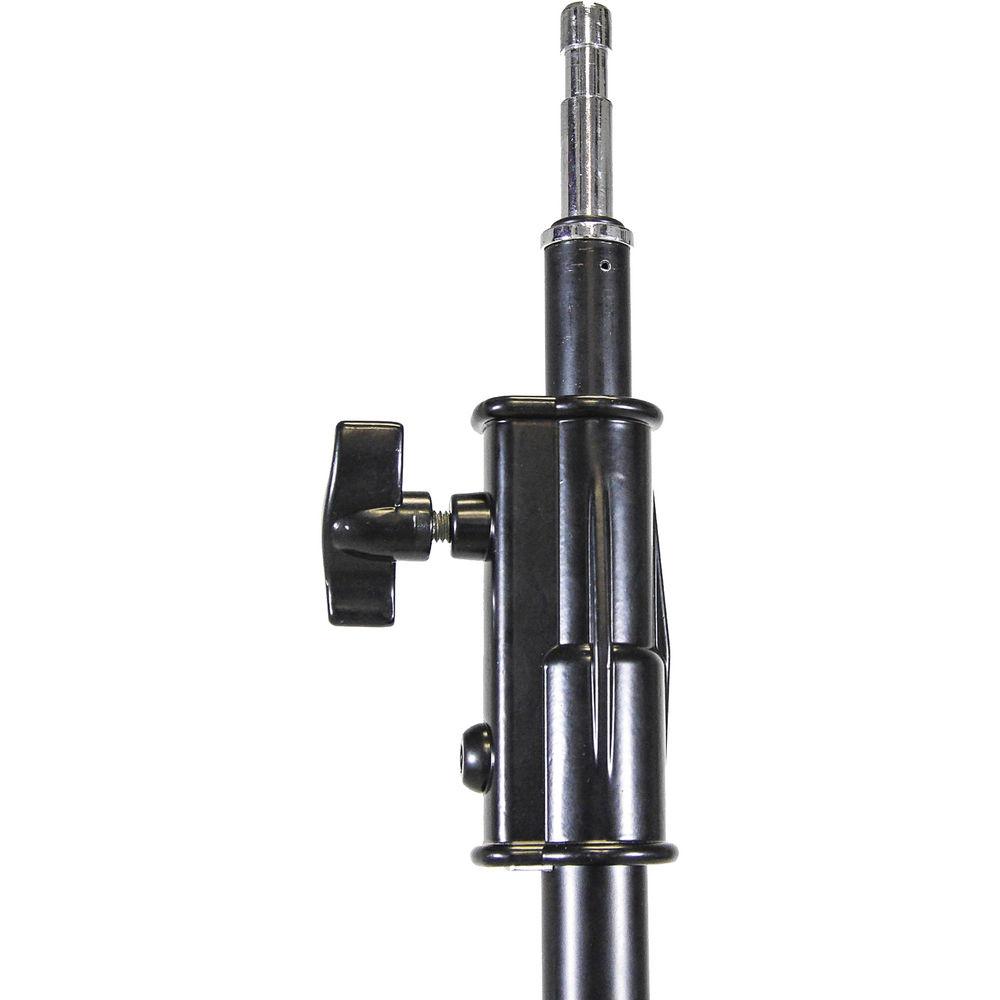

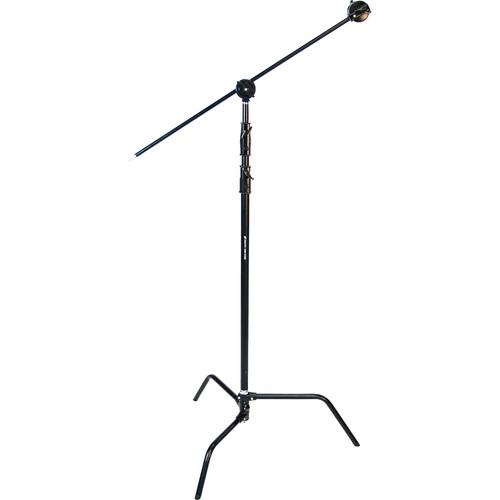

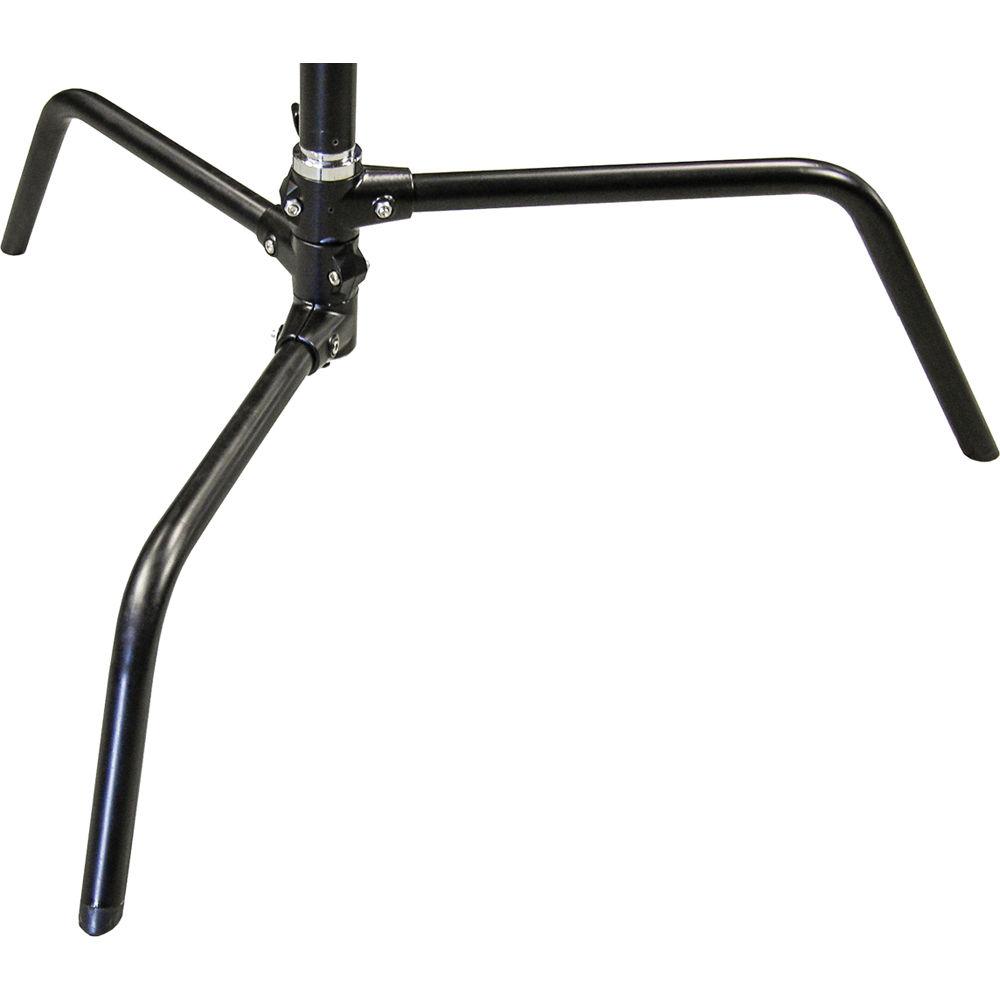

Product description The Digital Juice Grip Stand Pro Set is a sturdy base for grip gear or entertainment lighting. The kit is built around a 10.4" C-stand with double risers and a removable base. The two included 3.0" grip heads will accept most grip gear such as flags, gobos, scrims, etc. The set also includes a 40" grip extension arm. Constructed of black painted steel, the unique staggered leg design of the stand allows it to be nested and placed extremely close to other stands on the set. Optional sandbags easily drape over the legs. - Detachable Spring-Loaded Staggered 3 Leg Turtle Base
- The staggered leg design allows stands to be nested and placed extremely close to one another either on set in multiple lighting setups or when stacked upright for storage. The base can also easily be removed and legs can fold flat for easy storage and transport
- Standard 5/8" Baby Stud with 3.0" Grip Heads with Female 5/8" Receivers
- Using industry standard sizes means greater compatibility with grip and lighting gear. The 5/8" Baby top stud is the standard for lights up to 1,000 watts. The grip heads offer 4 different sized channels for holding a variety of gear and can be used in combination with the grip extension arm for greater flexibility. Ergonomic T-shape handles are used to adjust positioning on all pieces of the set. It breaks down into 5 easy to transport pieces

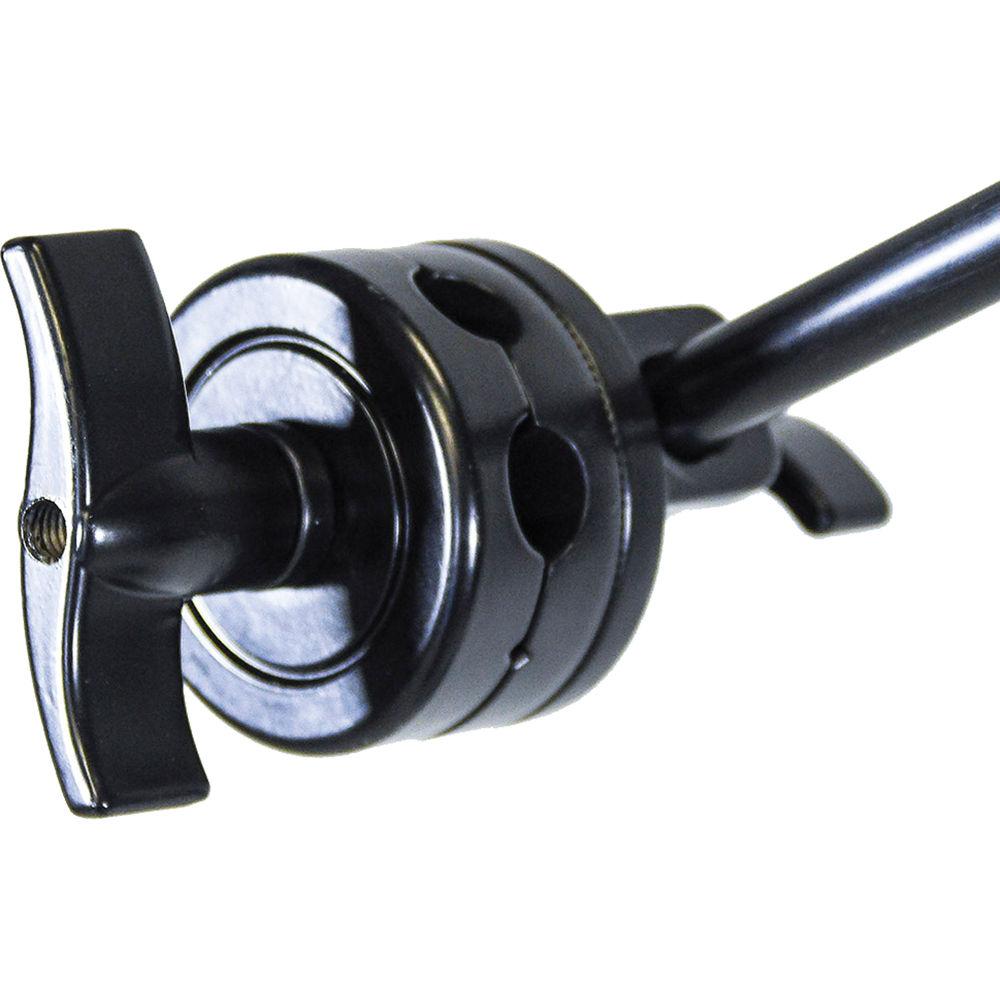

- Grip Head Positive-Locking Teeth
- Just about any piece of gear can be mounted to the grip head including extension arms, scrims, and flags
- Durable Steel Construction
- All metal construction provides solid support for a wide range of lighting and gear weights, without sacrificing portability. The finish resists all weather conditions for outdoor shooting and will not rust over time

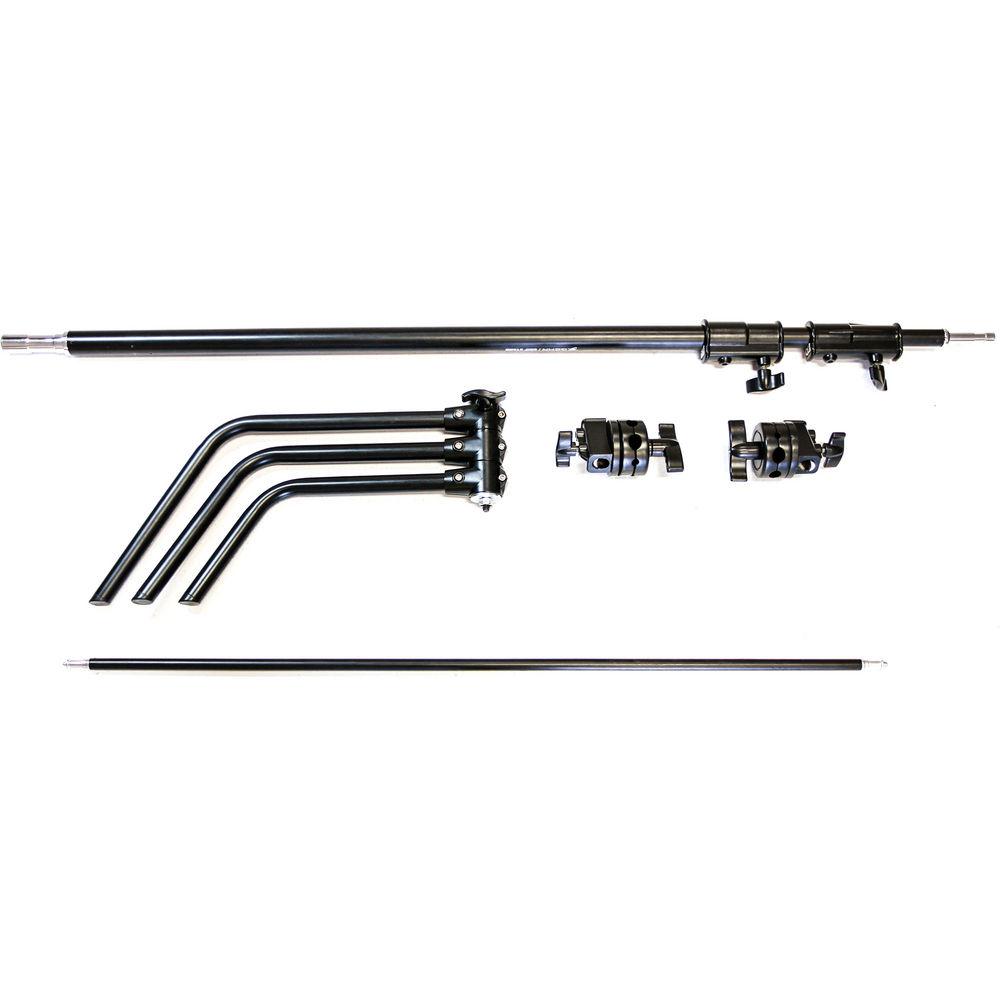

UPC: 717927233267 In the Box Digital Juice Grip Stand Pro Set (Black, 10.4') C-Stand 2 x Grip Head (3.0") Grip Arm (40") Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Juice Grip Stand Pro Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Juice STAND2 Specs | Load Capacity | 30 lb / 13.6 kg | | Mounting Options | 5/8" Stud | | Maximum Working Height | 125" / 317 cm | | Minimum Working Height | 61" / 155 cm | | Collapsed Height | 56" / 142 cm | | Footprint Diameter | 34" / 86 cm | | Arm Length | 40" / 100 cm | | Accepts Wheels | No | | Air Cushioned | No | | Detachable Base | Yes | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | Material | Steel | | Weight | 15.4 lb / 7.0 kg | | | | Package Weight | 21.5 lb | | Box Dimensions (LxWxH) | 53.0 x 9.5 x 5.0" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 52 owners. Add your rating and experience with the product.
