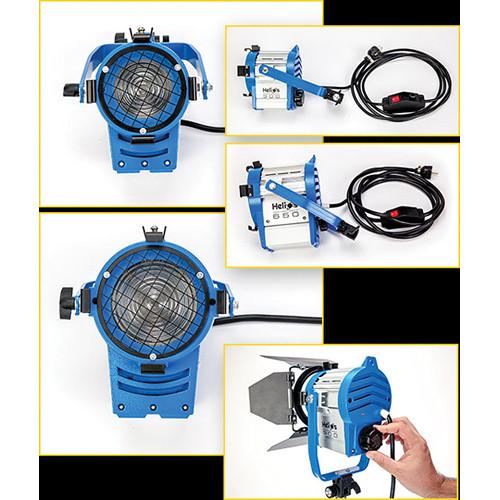

Product description The Helios 3-Point Lighting Kit from Digital Juice offers a total of 1600W of light in a portable, compact kit that is equally at home in the studio or on the road. The kit includes one 300W and two 650W Fresnel luminaires. A simple turn of the worm-gear driven knob on the back of the fixtures regulates the smooth transition from spot to flood beam angles. You can reduce power with an optional scrim kit or by the in-line dimmer that's built into the Helios 300's 11' power cord. All three lights include barndoors for shaping the light as well as a sturdy 8.0' light stand. It all fits in the supplied heavy-duty, wheeled kit case. - The 3.2" Fresnel lens of the Helios 300 and the 4.3" Fresnel lens of the Helios 650 produces a soft, even light field which is adjustable from spot to flood.

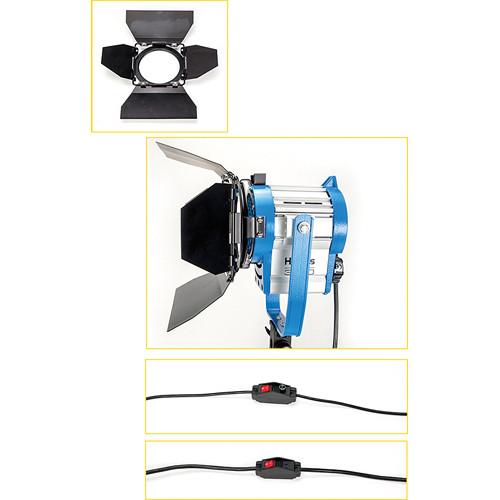

- The included 4-leaf barndoors alter the shape and direction of the light. The heat-resistant, rotatable barndoors attach easily to the front of the light and the four leaves can be adjusted to shape light so that it falls only on the desired areas of the set.
- The yoke has a 5/8" (16mm) receiver that accepts any "Baby" (5/8") stud.
- Both the Helios 300 and the Helios 650 have 11' power cords attached with an inline power switch. The Helios 300 also includes an inline dimmer control.

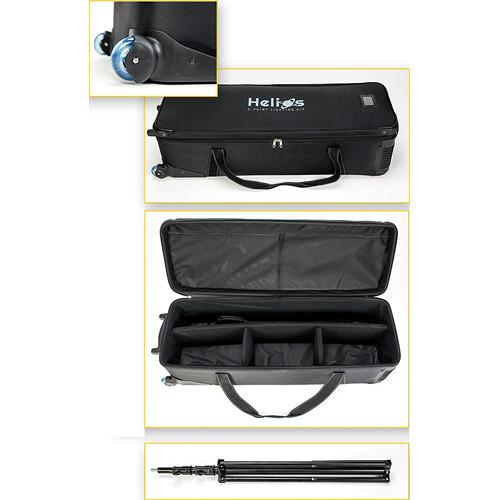

- The attractive, heavy-duty Helios 3-Point Lighting Kit carry bag has wheels for easy transport, carry handles on top and sides and a business card pocket for easy identification when travelling. It has interior zippered pockets for small accessories, as well as reconfigurable touch-fastener pads to protect the lights and accessories inside.
- The kit contains 3 easy-setup, heavy-duty light stands with 5/8" top studs.

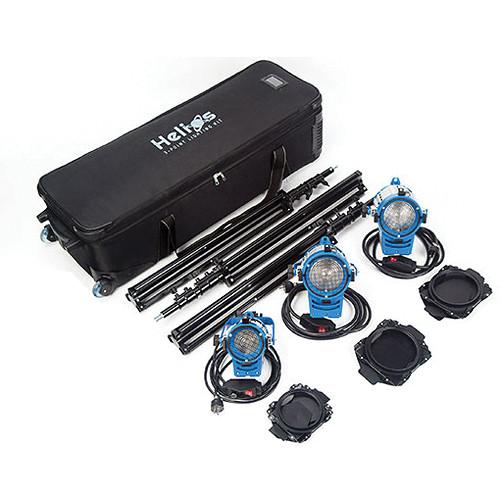

UPC: 717927233410 In the Box Digital Juice Helios 3-Point Lighting Kit Helios 300 Compact Tungsten Fresnel Light 2 x Helios 650 Compact Tungsten Fresnel Light 3 x Light Stands (8.0') Small 4-Leaf Barndoor Set 2 x Large 4-Leaf Barndoor Set Heavy-Duty Padded Wheeled Carry Case Helios 300W FKW Lamp (120V) 2 x Helios 650W FRK Lamp (120V) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Juice Helios 3-Point Lighting Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Juice FRESNEL1 Specs | Rating | Helios 300: 300 W
Helios 650: 650 W | | Socket (Lampholder) | GY9.5 | | Lens (Condenser) | Helios 300: 3.2" / 8.1 cm
Helios 650: 4.3" / 11 cm | | Reflector (Mirror) | Spherical specular aluminum | | Mounting | 5/8" / 16 mm receiver | | Yoke | Attaches to any 5/8" (16 mm) stud | | Cable | Helios 300: 11' / 3.4 m cable with inline switch and dimmer
Helios 650: 11' / 3.4 m cable with inline switch | | Focusing | Worm-gear driven | | Dimensions | Light Stand Maximum Height: 8.0' / 2.4 m
Kit in Case: 41 x 14 x 12" / 104 x 35.6 x 30.5 cm | | Kit Weight | Carry case (empty): 19 lb / 8.6 kg
Light stand: 5.6 lb / 2.5 kg (each)
Small barndoors: 1.0 lb / 0.45 kg
Large barndoors: 1.2 lb / 0.54 kg (each)
Helios 300: 4.4 lb / 2.0 kg
Helios 650: 6.5 lb / 2.9 kg (each)
Complete Helios 3-Point Lighting Kit in Case: 57.8 lb / 26.2 kg | | | | Package Weight | 65.55 lb | | Box Dimensions (LxWxH) | 0.41 x 0.14 x 0.11" |
