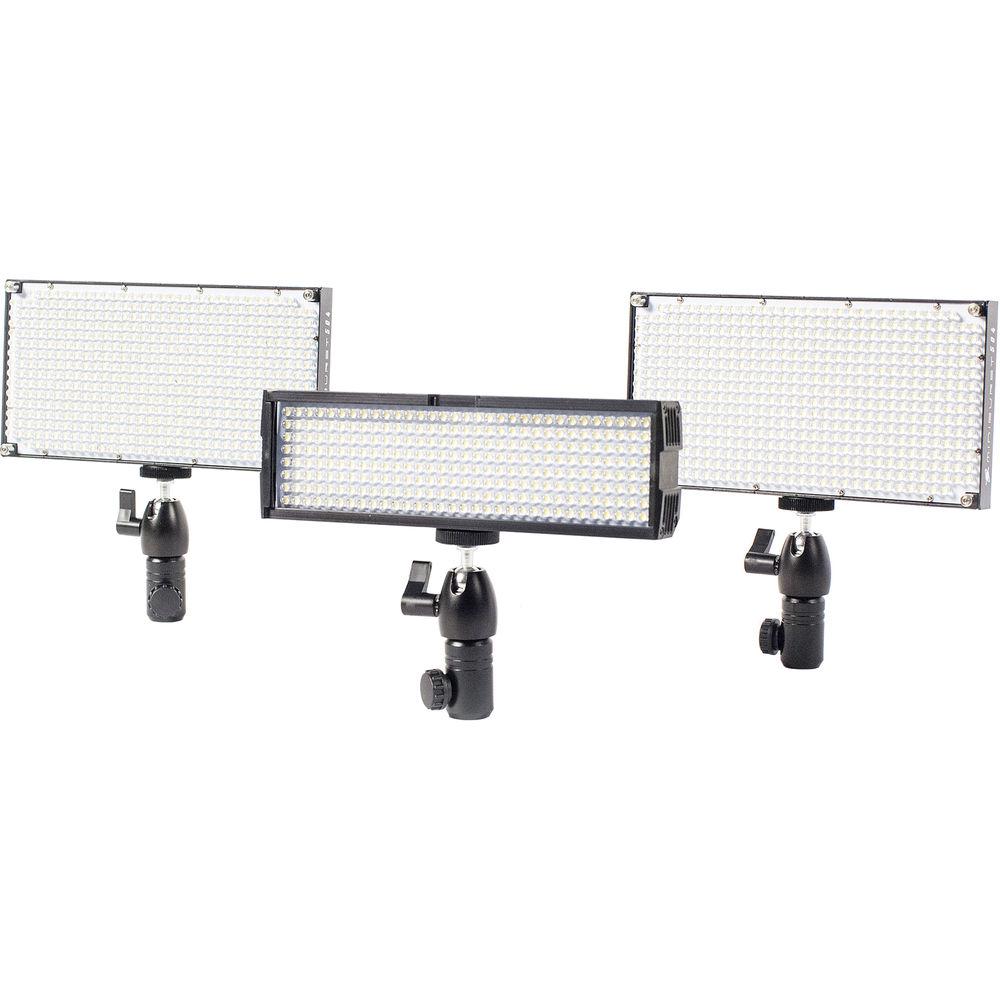

Product description The MiniBurst PRO Daylight 3-Point Lighting System Bundle was put together by Digital Juice to give image makers a complete kit that's just as valuable in the studio as on the road. The kit includes two MiniBurst 504 LED lights and one MiniBurst 256, each with batteries, an AC Power Supply, Hot Shoe Swivel Mount, Tungsten Conversion and Diffusion filters, a charger for the 256, and three 6' light stands in their own individual, soft carry bag. It all fits in the Deluxe Padded Kit Bag with built in carry handles and a shoulder strap.Suitable for on or off-camera use, the versatile, sturdy aluminum MiniBurst 504, measures 4.6 x 8.9 x 1.6 and weighs just 24 oz making it an ideal fixture for the road. The light uses 504 5mm LEDs for a solid 5600K color temperature while maintaining a high CRI of 90, indicating an accurate rendition of color. The medium-wide beam angle of 60 degrees provides coverage for most situations and offers some directional control. The 504 generates the equivalent of a 400W tungsten fixture that is dimmable from 1-100% without color shift. Although daylight is the ideal medium for the MiniBurst, an amber CTO conversion filter is supplied to balance the light's color temperature with other fixtures or in warm ambient light conditions. A diffusion filter is also included to soften the output. The MiniBurst 504 is ready for worldwide use, but it can also run for hours on the two provided lithium-ion batteries.In many ways, the MiniBurst 256 is the little brother of the 504. The fixture measures 2.75 x 8.9 x 1.81" and weighs just 12.8 oz. It uses half the number of LEDs as the 504 but still outputs the equivalent of 200 tungsten watts which is dimmable from 0-100%. Like the 504, the MiniBurst comes with a universal AC adapter but can also run on the included lithium-ion battery when mains power is unavailable. - 256 or 504 Ultra Bright Cool LED Bulbs in Each Light
- You get steady, continuous light that is brighter, cooler and provides more accurate color temperature than kits costing twice as much.
- On-light Warming and Diffusion Filters
- The included warming and diffusion gels allow you to match tungsten light sources and diffuse the light when needed. The filters easily mount to the lights via magnetic snap-on posts (504), or by sliding easily into a built-in filter holder on the light (256).
- Integrated Dimmer
- The dimmer knob on the back of each unit allows you to vary the intensity of the light with no shift in color temperature.

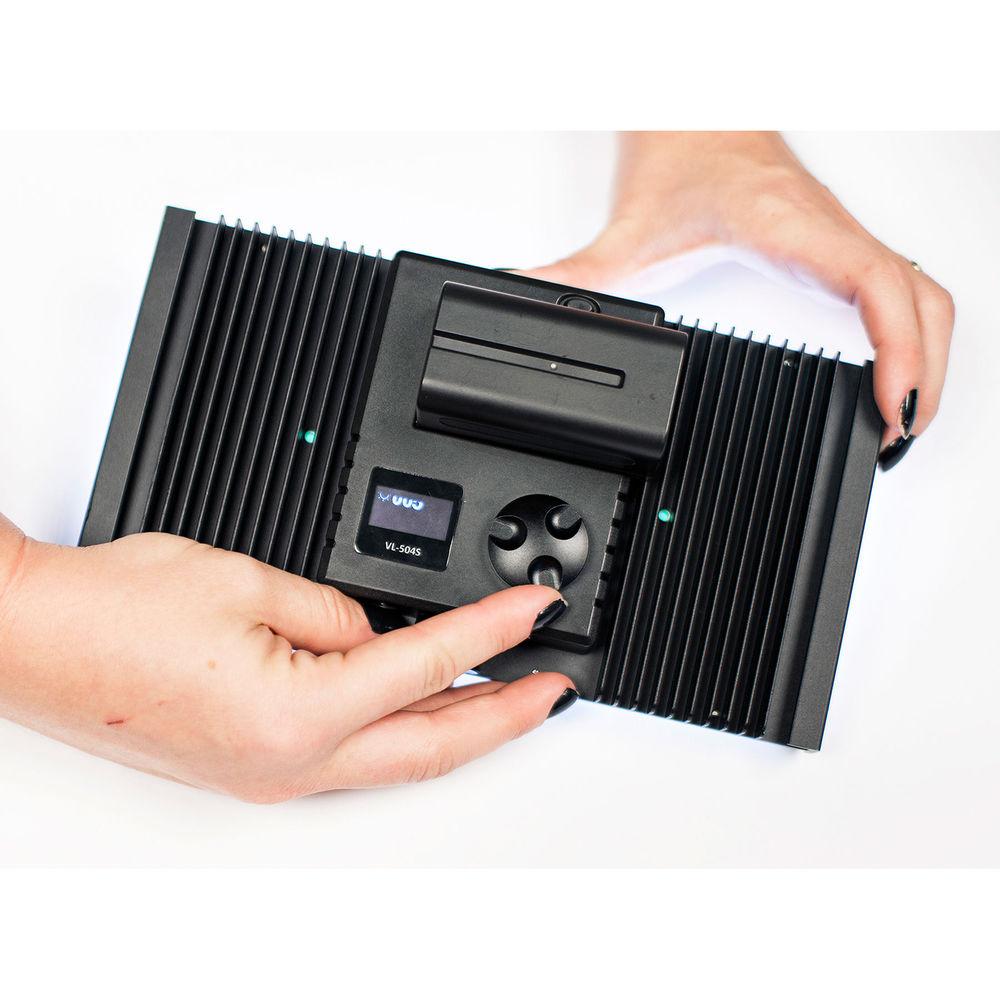

- MiniBurst 504 OLED Read-Out
- The OLED display on the 2 MiniBurst 504 lights shows the available charge left on your battery as well as the dimmer's intensity setting so you can easily and consistently return to it after each take.
- Mini Ball Head Mount and Hot-Shoe Mount Included for Each Light

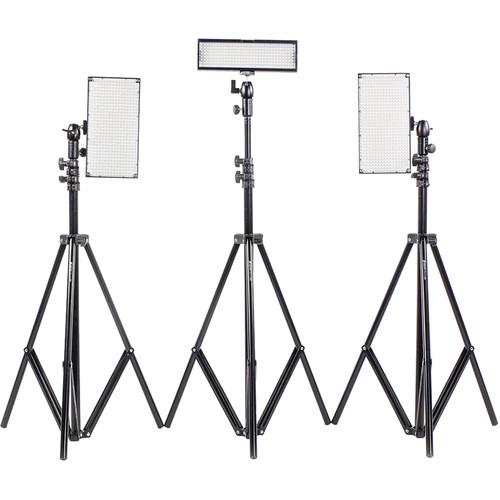

- You can easily mount and adjust each light on the provided 6' light stands, as well as on the top of your camera.
- Long Lasting Portable Lighting
- MiniBurst lights can run for hours on their lithium-ion rechargeable batteries so you can travel far from an available power source without worrying about missing a shot.
- MiniBurst 504 Integrated Battery Charging System
- On the MiniBurst 504 lights, there is no need for a separate charger - the battery automatically charges when AC power is connected to the light through the included 18 VAC power supply adapter.

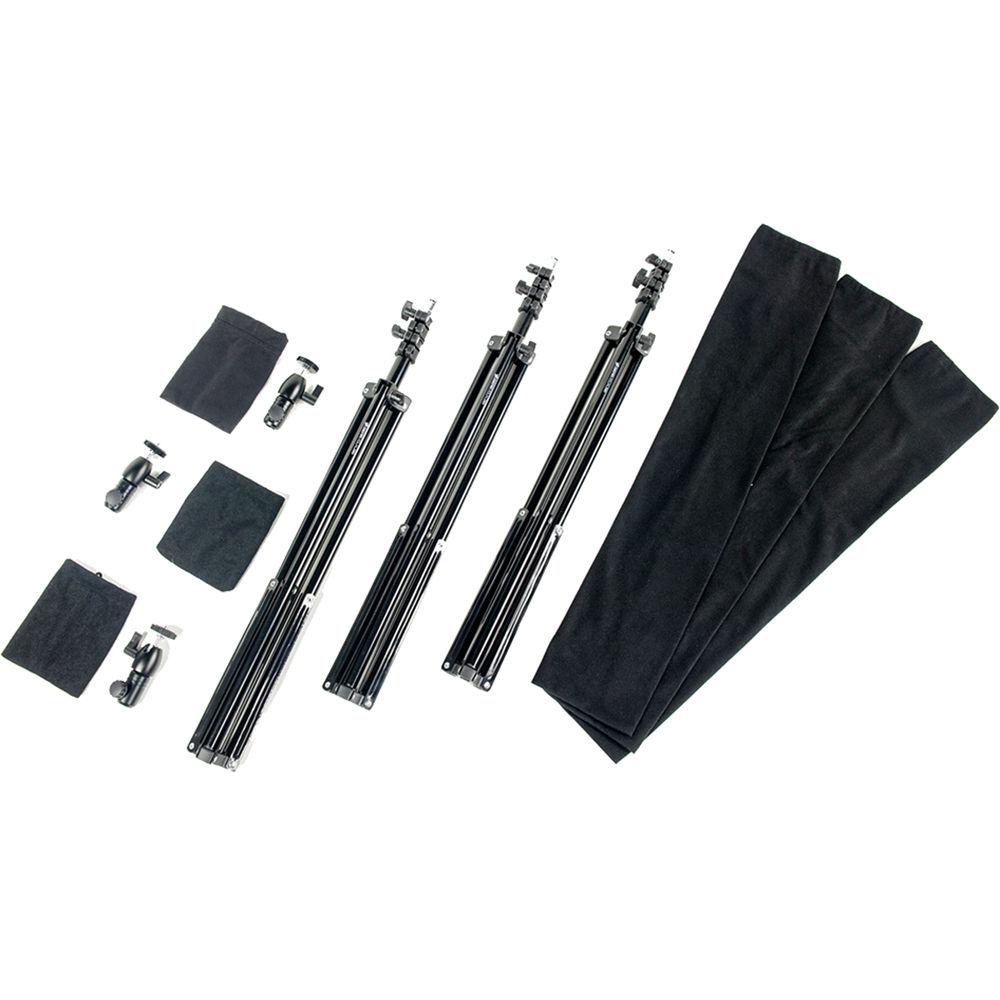

- Three Lightweight 6' Light Stands
- With a maximum height of 6' and a maximum weight capacity of 12 lb (5.44 kg), these aluminum alloy light stands are portable and durable enough for any type of shoot.
- 3 Fixtures with Batteries, AC Power Supplies, Light Stands, Filters, Case

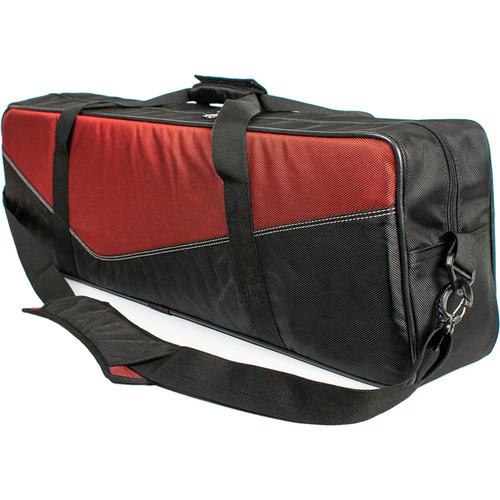

- You have everything you need to light a wide variety of scenes in one compact 3-point lighting system weighing just over 24.25 lb. A deluxe carry bag measuring 33.5" x 6.25" x 11.5" is included for storage and transport.

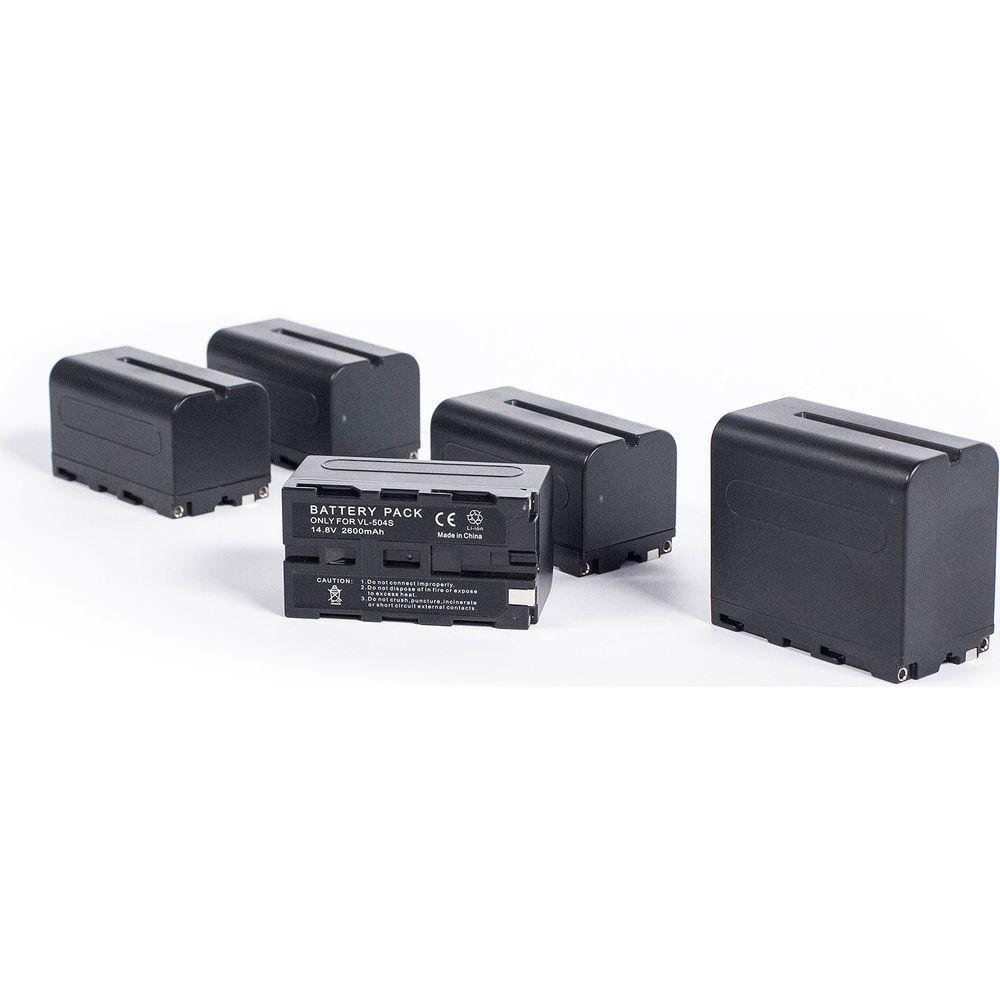

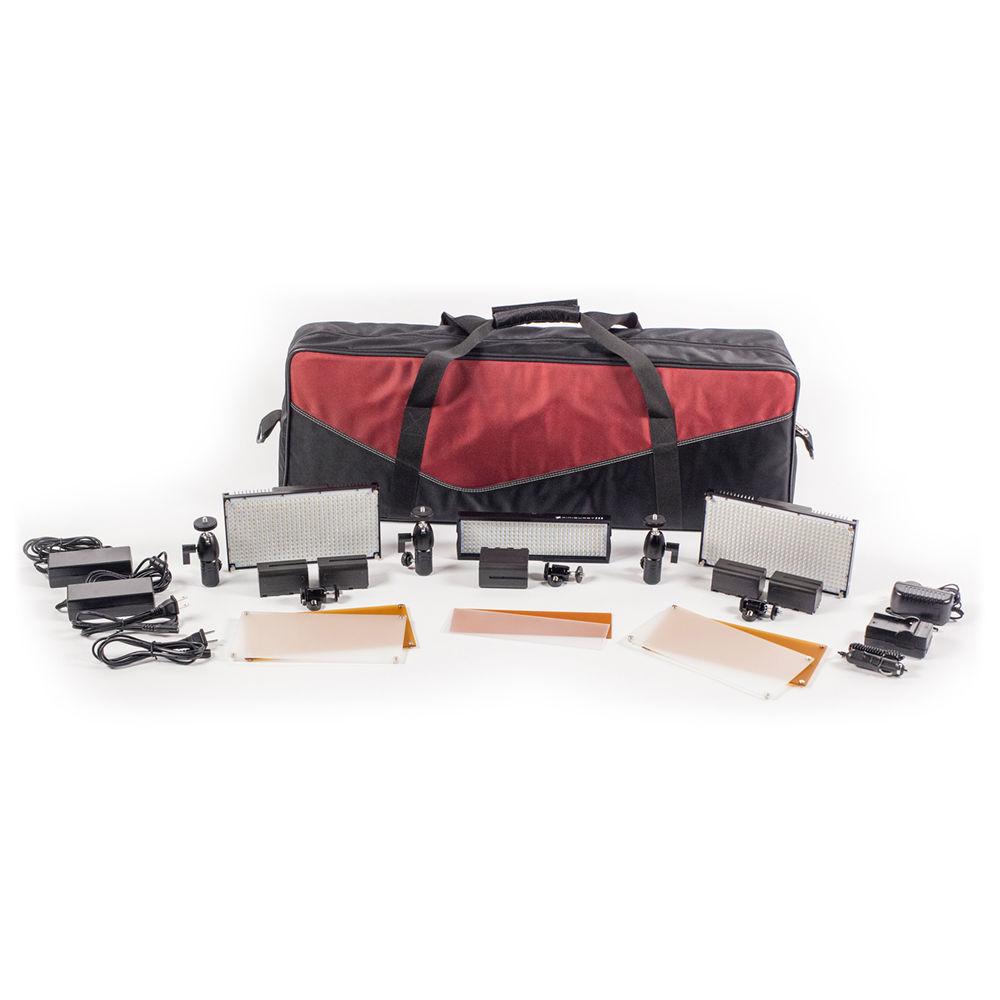

UPC: 717927233403 In the Box Digital Juice MiniBurst PRO Daylight 3-Point Lighting System Bundle 2 x MiniBurst 504 LED Lights MiniBurst 256 LED Light 3 x Hot Shoe Swivel Mounts 5 x Li-Ion Batteries Charger 3 x Multi-Voltage Power Adapters 3 x Mini Ball Heads with Bags 3 x Diffusion Filters 3 x Tungsten Conversion Filters 3 x Light Stands with Individual Bags Deluxe Carry Case Limited 1-Year Warranty User Manual PDF 7mbddeudtqseuabacrstyazvxyqwy Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Juice MiniBurst PRO Daylight 3-Point Lighting System Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Juice MINIBURST PRO KIT Specs | Light Source | MiniBurst 504: 504 5 mm LEDs
256: LED | | Lamp Life | 50,000 hr | | Color Temperature | 504: 5600K (+/-200K)
256: 5600K | | CRI | 504: 90
256: 95 | | Lumens | 504: 3000
256: 1050 | | Tungsten Equivalent | 504: 400 W tungsten
256: 200 W tungsten | | Beam Angle | Both Lights: 60° | | Dimming | 504: 1-100%
256: 0-100% | | Voltage | AC Adapters: 100-140 VAC, 50/60 Hz | | Batteries | 504 Type: 2600 mAh, 14.8 V
Operating Voltage: 13-18 V
256: Operating Voltage: 6-10 VDC | | Material of Construction | 504: Aluminum 256: Not specified by manufacturer | | Dimensions | MiniBurst 504: 4.6 x 8.87 x 1.62" (117.47 x 225.42 x 41.27 mm)
MiniBurst 256: 2.75 x 8.87 x 1.81" (70 x 225 x 46 mm) | | Weight | MiniBurst 504
Weight: (battery excluded): 24 oz (680.39 g)
Weight: (battery included): 30 oz (850.9.0 g)
MiniBurst 256
Weight: (battery excluded): 12.8 oz (363 g)
Weight: battery included): 22.4 oz (635 g)
Each Light Stand: 2.6 lb (1.2 kg) | | Kit Dimensions | Complete Kit in Bag: 8.0 x 10 x 9.0" (71 x 25 x 23 cm) | | Kit Weight | In Deluxe Bag: 24.25 lb (10.99 kg) | | | | Package Weight | 29.0 lb | | Box Dimensions (LxWxH) | 34.0 x 11.5 x 9.0" |
