User Manual for Digital Juice Orbit Dolly T-bar Handle Kit Click to enlarge the picture
Contents of the user manual for the Digital Juice Orbit Dolly T-bar Handle
- Product category: Cine Dolly & Track Accessories Digital Juice
- Brand: Digital Juice
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Juice Cine Dolly & Track Accessories
 |
User manual for the Digital Juice Orbit Dolly T-bar Handle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Juice product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Juice user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Juice product will considerably shorten its lifespan!
|

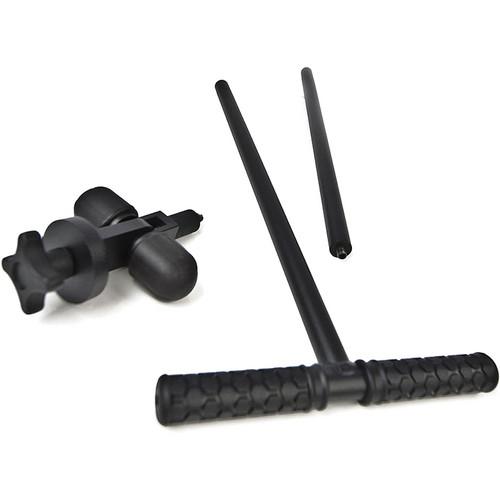

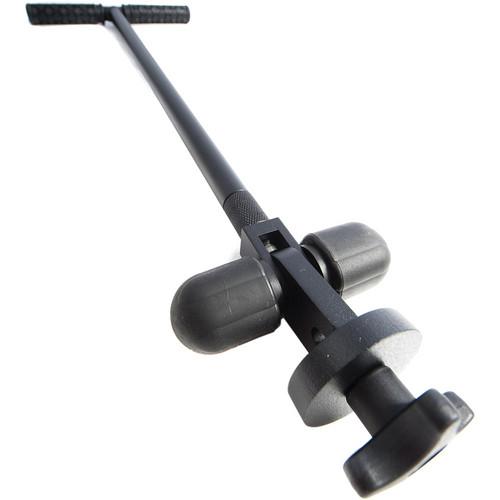

Product description The Digital Juice Orbit Dolly T-bar Handle Kit includes a 24" (111.8cm) T-bar Handle with a Rubber Grip, a 20" (50.8cm) Extension Rod, a Clevis attachment assembly, and a center plate attachment assembly.
You can remotely pull or push the Orbit Dolly using the T-bar, thus achieving precise stability for the camera shot. Vibration transferred from your hand to the dolly is eliminated owing to the absorption of vibration by the rubber textured grips of the T-bar. Besides, you can step away from the action and gain a better perspective of where the camera should be going next for achieving that perfect shot.
You can use the T-bar in 2 modes: one with the extension rod for guiding the dolly while staying out of the way, and the second with the base 24" T-bar in tabletop mode to prevent casting a shadow on the subject during close-up shots.
Especially suited for operation with telephoto lenses, the T-bar reduces vibration by supporting dual anchor point attachment. You can attach the T-bar to the center plate of the dolly or to the anchor point on one of the legs.
You can easily attach the T-bar to the dolly, owing to the presence of easy-grip handles with rubber casing and knurled textured grips that enable a tool-free setup. All metal parts of the T-bar sport an industrial-grade matte black powder coating. - Includes a 24" (111.8cm) T-bar Handle with a Rubber Grip, a 20" (50.8cm) Extension Rod, a Clevis attachment assembly, and a center plate attachment assembly
- Offers precise stability for camera shot via remote dolly push-pull support
- Eliminates vibration transferred from your hand to the dolly via rubber textured grips that absorb the generated vibration
- Allows you to step away from the action and gain a better perspective of where the camera should be going next for achieving that perfect shot
- Supports 2 operation modes: one with the extension rod for guiding the dolly while staying out of the way, and the second with the base 24" T-bar in tabletop mode to prevent casting a shadow on the subject during close-up shots
- Especially suited for telephoto lenses
- Reduces vibration via dual anchor point attachment support
- Allows attachment to the center plate of the dolly or to the anchor point on one of the legs
- Provides tool free setup via easy-grip handles with rubber casing and knurled textured grips
- Sports an industrial-grade matte black powder coating on all metal parts
UPC: 717927232741 In the Box Digital Juice Orbit Dolly T-bar Handle Kit T-bar Handle with Soft Rubber Textured Grip 20" Extension Rod Clevis Attachment Assembly (Includes Metal Fork, 2-part Easy Grip Rubber Connecting Knobs, Knurled Grip Metal Bolt and Nylon Washers) Center Plate Attachment Assembly (Including Required Screw Knob) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Juice Orbit Dolly T-bar Handle Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Juice DOLLY1-TBARHANDLE1 Specs | Material | - 0.5" Aluminum Plate (series 6061) with Industrial Matte Black Powder Coating for All Metal Parts
- Soft Touch Rubber Connecting Knobs and Nylon Washers on Clevis Attachment Assembly
- Textured Rubber Grip Covers on T-bar Handle
| | Dimensions | 7/8" (22.23mm) | | Length | - 44" / 1118 mm (Full T-bar Handle with Extension and Clevis Attachment Assembly)
- 24" / 610 mm (Main T-bar Rod with Clevis Attachment Assembly)
- 20" / 508 mm (T-bar Extension Rod)
| | Width | 10" (254mm) | | Weight | 4.15 lb / 1.88kg (Full Kit) | | | | Package Weight | 6.4 lb | | Box Dimensions (LxWxH) | 23.1 x 13.6 x 3.5" |
Rating74% users recommend this product to others. And what about you?
This product has already been rated by 47 owners. Add your rating and experience with the product.
