Product description

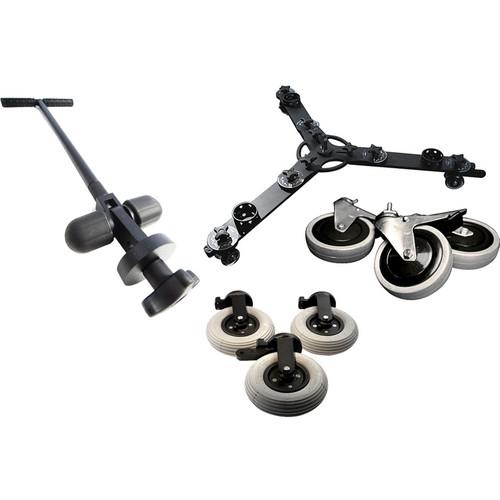

• Digital Juice Orbit Dolly
  • Product Tutorial Video
  The Digital Juice Orbit Dolly is an efficient camera tracking device that allows you to achieve 360° radial as well as straight line dolly motion for a camera weighing up to 300 lb (136kg).

  You can use the dolly with or without a tripod in tabletop, normal, or wide mode thus achieving wide flexibility. Rotation around a subject while keeping the camera focused on the subject is possible, thus eliminating the need for special straight and curved tracks for dolly movement.

  Integrated into the dolly are 3" (76mm) polyurethane casters that ensure smooth mobility under maximum load conditions. You can easily adjust the dolly legs to facilitate transportation. Constructed from a 0.5" aluminum plate, the Orbit Dolly is lightweight (22 lb / 9.9kg) and durable.

  A matte black powder coating on the body of the dolly protects it from environmental conditions and also prevents unwanted reflections.
  • Efficient camera tracking device - allows you to achieve 360° radial as well as straight line dolly motion for a camera weighing up to 300 lb (136kg)
  • Provides wide flexibility by supporting use with or without a tripod in tabletop, normal, or wide modes
  • Eliminates the need for special straight and curved tracks for dolly movement by supporting rotation around a subject while keeping the camera focused on the subject
  • Integrates 3" (76mm) polyurethane casters that ensure smooth mobility under maximum load conditions
  • Facilitates transportation by easily adjustable legs
  • Constructed from a 0.5" aluminum plate
  • Lightweight (22 lb / 9.9kg) and durable
  • Prevents unwanted reflections via a matte black powder coating
  UPC: 717927232727
• Digital Juice Orbit Dolly 8" Pneumatic Wheel Set
  • Product Tutorial Video
  The Digital Juice Orbit Dolly 8" Pneumatic Wheel Set includes 3 air-filled casters for the Orbit Dolly that reduce vibration and ensure smooth motion of the dolly on a wide range of surfaces.

  Owing to their large diameter (8" / 20.3cm), the pneumatic wheels can be used to move the dolly smoothly over largely uneven surfaces such as floors with expansion cracks, ceramic tiles, or textured flooring.

  You can increase or decrease the air pressure in the tires in micro increments to achieve precise tire pressure for the surface in question. A maximum tire pressure of 36psi ensures that the wheels effortlessly support heavy loads such as heavy rigging or large cameras. You can easily refill the tires via a standard Schrader valve similar to the ones found in most cars and bicycles.

  Integrating a seal that protects the bearings from dirt and wear and tear, the pneumatic wheels offer a long life. Wheel hubs made from ABS plastic ensure that the wheels do not contribute to the weight of the dolly and allow easy acceleration and deceleration on any surface. Easy movement and stability is provided by concentric ribbing on the tires, which ensures that the wheels continue to move in the desired direction.

  Manufactured from medical grade rubber, the pneumatic wheels withstand harsh temperatures and more stress than regular rubber tires. The 8" Pneumatic Wheel Set sports a black finish and includes 3 tires made from light gray-colored non-marking rubber, which ensures no discoloration of the surface.
  • Includes 3 air-filled casters for the Orbit Dolly that reduce vibration and ensure smooth motion of the dolly on a wide range of surfaces
  • Can be used to move the dolly smoothly over largely uneven surfaces such as floors with expansion cracks, ceramic tiles, or textured flooring owing to the large diameter (8" / 20.3cm) of the wheels
  • Allows increasing or decreasing of the air pressure in the tires in micro increments to achieve precise tire pressure for the surface in question
  • Ensures that the wheels effortlessly support heavy loads such as heavy rigging or large cameras by supporting a maximum tire pressure of 36psi
  • Allows easy refilling via a standard Schrader valve similar to the ones found in most cars and bicycles
  • Offers long life via an integrated seal that protects the bearings from dirt and wear and tear
  • Ensures that the wheels do not contribute to the weight of the dolly and allows easy acceleration and deceleration on any surface via wheel hubs made from ABS plastic
  • Provides easy mobility and stability via concentric ribbing on the tires, which ensures that the wheels continue to move in the desired direction
  • Medical grade rubber tires - withstand harsh temperatures and more stress than regular rubber tires
  • Includes 3 tires made from light gray-colored non-marking rubber, which ensures no discoloration of the surface
  • Sports a black finish
  UPC: 717927232758
• Digital Juice Orbit Dolly T-bar Handle Kit
  • Product Tutorial Video
  The Digital Juice Orbit Dolly T-bar Handle Kit includes a 24" (111.8cm) T-bar Handle with a Rubber Grip, a 20" (50.8cm) Extension Rod, a Clevis attachment assembly, and a center plate attachment assembly.

  You can remotely pull or push the Orbit Dolly using the T-bar, thus achieving precise stability for the camera shot. Vibration transferred from your hand to the dolly is eliminated owing to the absorption of vibration by the rubber textured grips of the T-bar. Besides, you can step away from the action and gain a better perspective of where the camera should be going next for achieving that perfect shot.

  You can use the T-bar in 2 modes: one with the extension rod for guiding the dolly while staying out of the way, and the second with the base 24" T-bar in tabletop mode to prevent casting a shadow on the subject during close-up shots.

  Especially suited for operation with telephoto lenses, the T-bar reduces vibration by supporting dual anchor point attachment. You can attach the T-bar to the center plate of the dolly or to the anchor point on one of the legs.

  You can easily attach the T-bar to the dolly, owing to the presence of easy-grip handles with rubber casing and knurled textured grips that enable a tool-free setup. All metal parts of the T-bar sport an industrial-grade matte black powder coating.
  • Includes a 24" (111.8cm) T-bar Handle with a Rubber Grip, a 20" (50.8cm) Extension Rod, a Clevis attachment assembly, and a center plate attachment assembly
  • Offers precise stability for camera shot via remote dolly push-pull support
  • Eliminates vibration transferred from your hand to the dolly via rubber textured grips that absorb the generated vibration
  • Allows you to step away from the action and gain a better perspective of where the camera should be going next for achieving that perfect shot
  • Supports 2 operation modes: one with the extension rod for guiding the dolly while staying out of the way, and the second with the base 24" T-bar in tabletop mode to prevent casting a shadow on the subject during close-up shots
  • Especially suited for telephoto lenses
  • Reduces vibration via dual anchor point attachment support
  • Allows attachment to the center plate of the dolly or to the anchor point on one of the legs
  • Provides tool free setup via easy-grip handles with rubber casing and knurled textured grips
  • Sports an industrial-grade matte black powder coating on all metal parts
  UPC: 717927232741
• Digital Juice Orbit Dolly Caster Wheel Set (5")
  • Product Tutorial Video
  The Digital Juice Orbit Dolly Caster Wheel Set (5") is a set of 3 caster wheels that facilitates smooth movement and maneuvering of the Orbit Dolly, and supports loads of up to 300 lb (136kg). Each 5" (12.7cm) caster wheel integrates a non-marking polyurethane design that ensures quiet motion of the dolly without leaving any marks on the floor.

  Cold-forged steel construction and a corrosion-resistant zinc coating on the legs ensure easy mobility even at full loads. A hardened inner raceway is also provided for protecting bearings from dirt and wear and tear.

  You can easily control the swivel motion of the casters and stop the dolly motion via an integrated hand or foot operated lock and brake.
  • Set of 3 caster wheels that facilitates smooth movement and maneuvering of the Orbit Dolly
  • Supports loads up to 300 lb (136kg)
  • 5" (12.7cm) caster wheel - integrates a non-marking polyurethane design that ensures quiet motion of the dolly without leaving any marks on the floor
  • Ensures easy mobility even at full loads via a cold-forged steel construction and a corrosion-resistant zinc coating on the legs
  • Includes a hardened inner raceway provided for protecting bearings from dirt and wear and tear
  • Allows easy control of the swivel motion of the casters and stopping of the dolly via an integrated hand or foot operated lock and brake
  UPC: 717927232765

• Orbit Dolly azwqdrwtatdzss
• Center Leg
• Left Leg
• Right Leg
• Body
• 3 x Wheel Assemblies
• 9 x Nylon Handled 3/8" - 16tpi x 1" Knobs
• Nylon Handled 3/8" - 16tpi Nut for Camera Fluidhead Tiedown
• User Guide
• Limited 1-Year Warranty

• Orbit Dolly 8" Pneumatic Wheel Set

• Orbit Dolly T-bar Handle Kit

• Orbit Dolly Caster Wheel Set (5") azwqdrwtatdzss

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Digital Juice Orbit Dolly

  Weight Capacity	300 lb (136kg)
  Dimensions	Tabletop - 5.8 x 18 x 16.1" (14.7 x 45.7 x 40.8 cm) Normal - 6.3 x 37.4 x 33" (16 x 94.9 x 83.8 cm) Wide - 6.3 x 40.8 x 36" (16 x 103.6 x 77.7 cm)
  Weight	22 lb (9.9kg)
  Material	Body Components - 0.5" Aluminum Plate (Series 6061) Industrial Matte Black Powder Coating Wheels - 3" (76mm) Urethane 80a Type with ABEC 7 High Quality Bearings Knobs - 3/8" - 16tpi x 1" Bolts with Nylon Handles

  Box Dimensions (LxWxH)	30.0 x 20.0 x 10.0"

• Digital Juice Orbit Dolly 8" Pneumatic Wheel Set

  Weight	3-wheel Set - 7.65 lb (2.33kg) 2 Short Armed Wheel Assemblies - 2.5 lb (1.13kg) each 1 Long Armed Wheel Assembly - 2.65 lb (1.20kg)
  Dimensions	Tire Diameter - 8" (200mm) Tire Width - 2" (50mm) Axle Size - 5/16" (7.9mm)
  Materials	0.5" Aluminum Plate (Series 6061) with Industrial Matte Black Powder Coating (Wheel Assembly) High Grade Stainless Steel (Axle Bolts and Nuts) ABS Plastic (Hubs) Medical Grade Non-marking Rubber (Tires)
  Tire Pressure	36 psi Max

  Box Dimensions (LxWxH)	18.2 x 10.7 x 4.6"

• Digital Juice Orbit Dolly T-bar Handle Kit

  Material	0.5" Aluminum Plate (series 6061) with Industrial Matte Black Powder Coating for All Metal Parts Soft Touch Rubber Connecting Knobs and Nylon Washers on Clevis Attachment Assembly Textured Rubber Grip Covers on T-bar Handle
  Dimensions	7/8" (22.23mm)
  Length	44" / 1118 mm (Full T-bar Handle with Extension and Clevis Attachment Assembly) 24" / 610 mm (Main T-bar Rod with Clevis Attachment Assembly) 20" / 508 mm (T-bar Extension Rod)
  Width	10" (254mm)
  Weight	4.15 lb / 1.88kg (Full Kit)

  Box Dimensions (LxWxH)	23.1 x 13.6 x 3.5"

• Digital Juice Orbit Dolly Caster Wheel Set (5")

  Weight Capacity	300 lb (136kg)
  Dimensions	Wheel Diameter - 5" (127mm) Wheel Width - 1.25" (32mm)
  Height	6.5" (165mm)
  Weight	3-wheel Set - 7.13 lb (3.23kg) Caster Wheel Assembly - 2.38 lb (1.08kg)
  Material	Non-marking Injection Molded Polyurethane Thermoplastic Rubber Tread Tires Mechanically and Chemically Bonded to a Polyolefin Center (Wheels) 1/8" Cold-forged Steel with Corrosion Resistant Zinc Plating (Legs / Yoke) Threaded Stem with Hexagon Washer and Integrated Top Lock and Brake

  Box Dimensions (LxWxH)	17.0 x 9.9 x 4.0"
