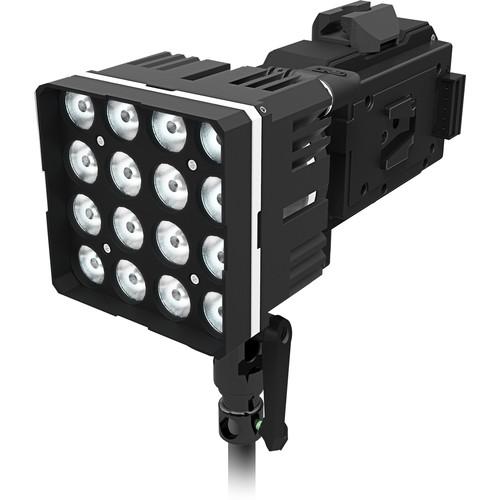

Product description Be flexible and mobile with the DS 1 LED Light Modular System from Digital Sputnik. Able to output light equivalent to that of a 100W HMI or a 500W tungsten fixture while measuring just 4 x 4", this light ensures portability without sacrificing power. It also uses an RGBW LED module which provides color temperature adjustment from 1500-10,000K as well as full color control, including primary color rendering. This single light system can also be expanded with ease to add more light.

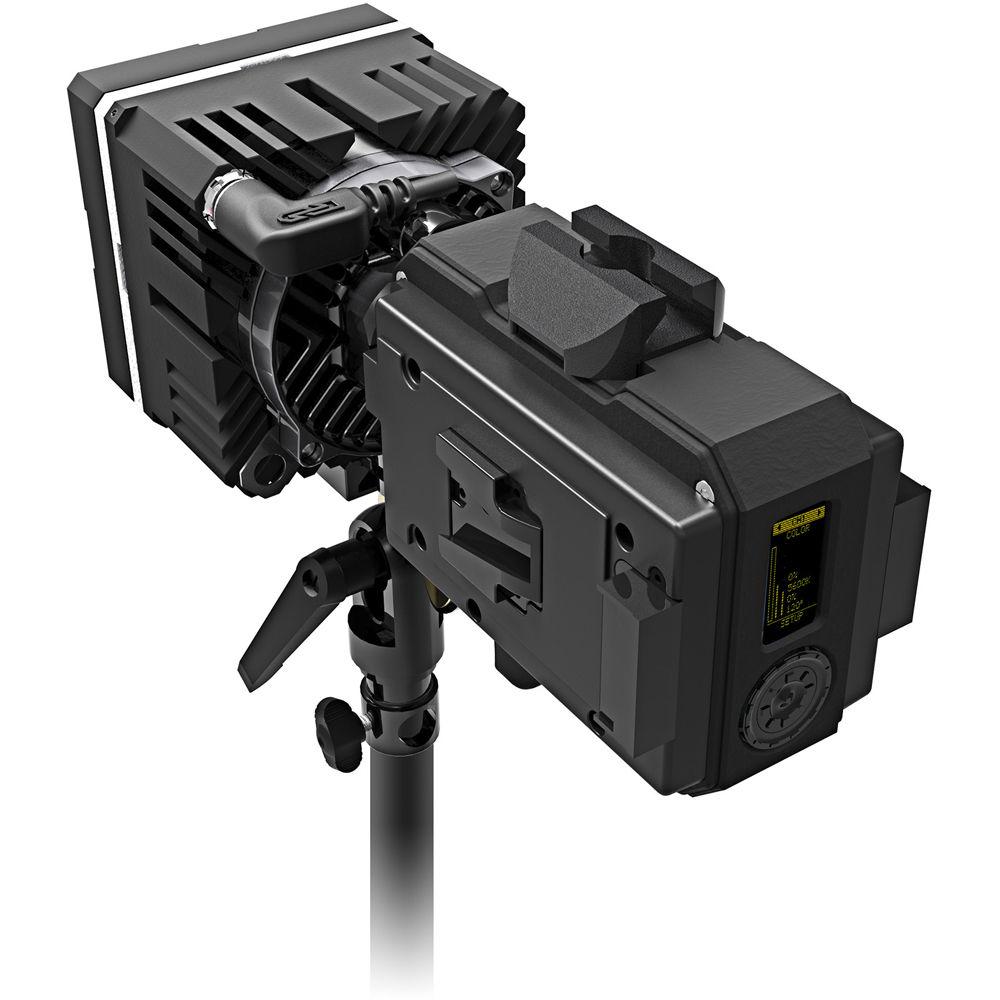

The fixture offers a focused beam angle of 20° along with flicker-free dimming from 0-100% for maximum flexibility. Users will also be able to control this using local controls and an OLED screen. Also, the light can be run off of batteries thanks to a dual V-mount battery plate setup on the PSU, or it can be powered by the included 90-260 VAC adapter. And, it features built-in Wi-Fi and DMX for remote control over the light. - Light modules are calibrated at the factory to ensure consistency and accuracy.
- Modules feature a memory chip and temperature chip for identification and calibration.
- The 16-bit high precision dimming enables over 2 billion color combinations.
- An Advanced Color Science delivers a constant color temperature throughout the dimming range.
- The light uses a combination of passive and active cooling for efficiency and effectiveness.
- Modular design allows users to create individualized lighting kits for their needs.
- Software updates can be installed to upgrade lights.
- LED board is upgradeable.
- Built-in Wi-Fi allows users to access light information in real-time via an iOS app.
- Photometrics
- 32000 lux / 2973 fc at 3' / 1 m
3600 lux / 334 fc at 10' / 3 m
1300 lux / 121 fc at 16' / 5 m
330 lux / 31 fc at 33' / 10 m

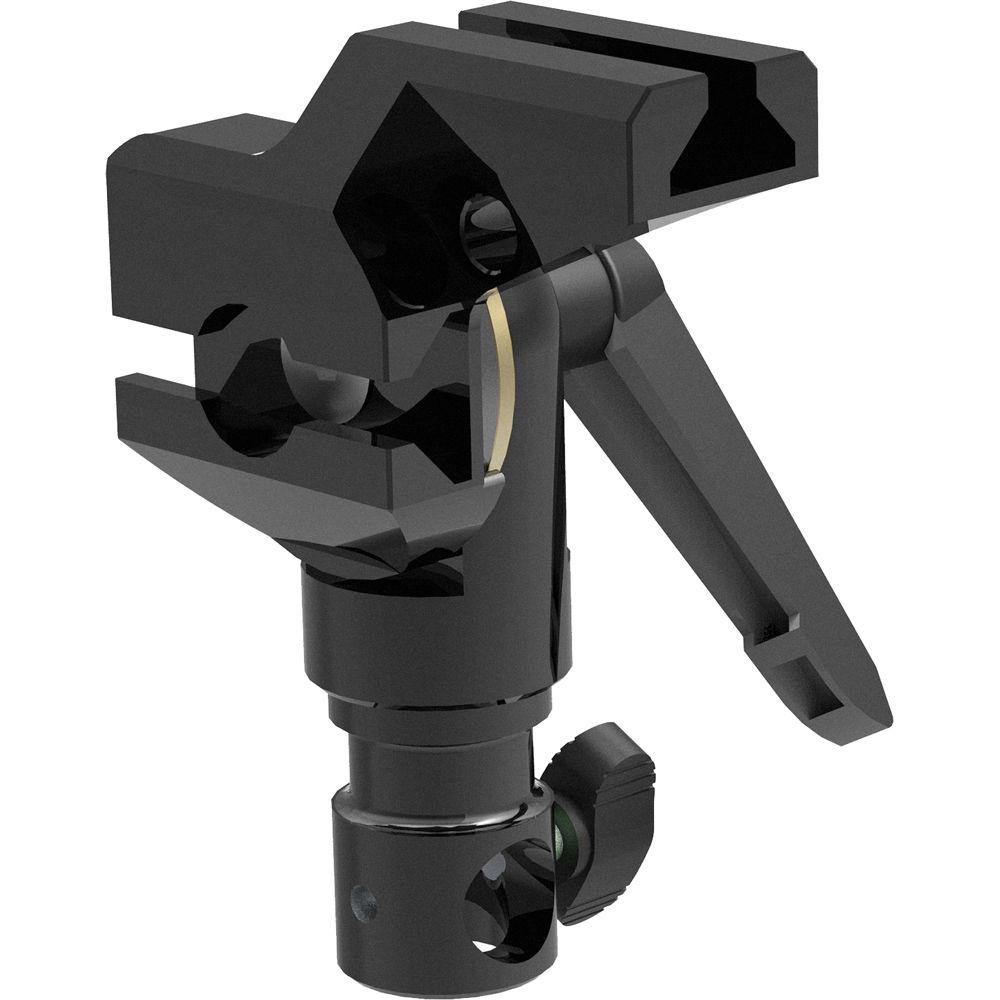

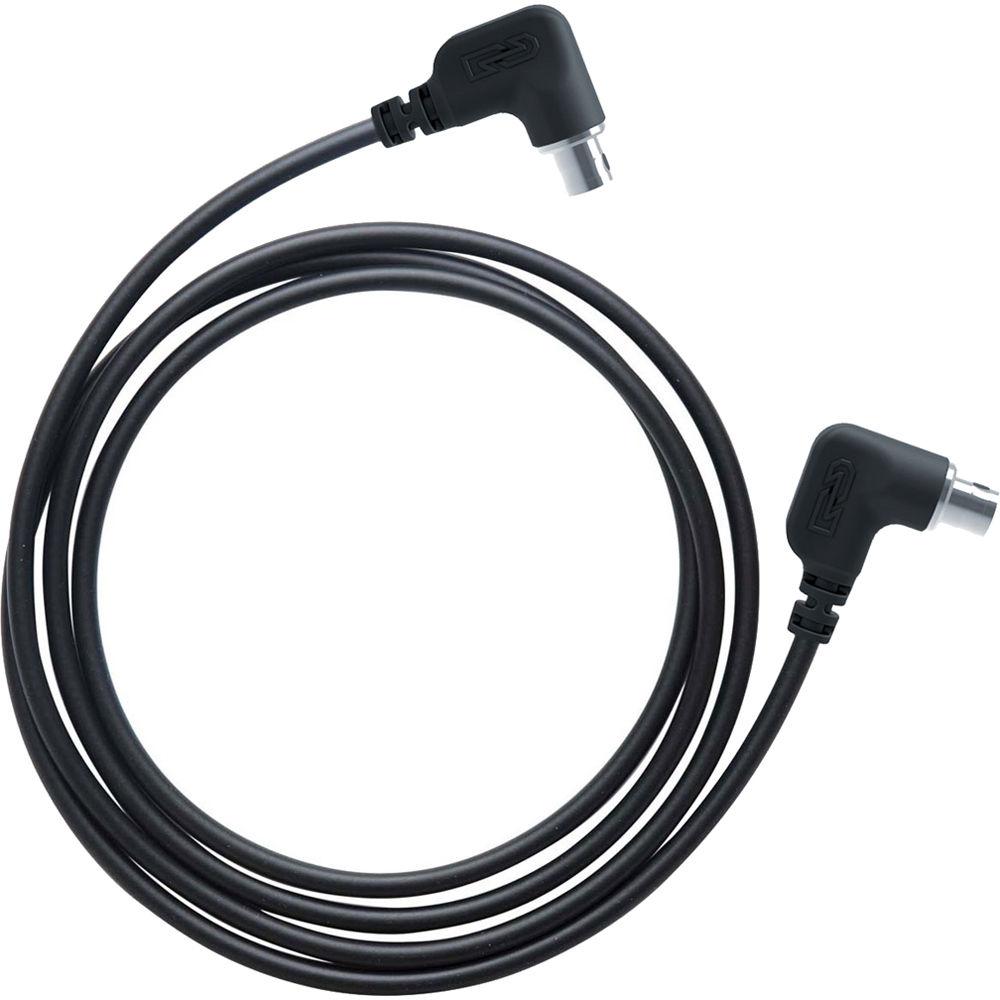

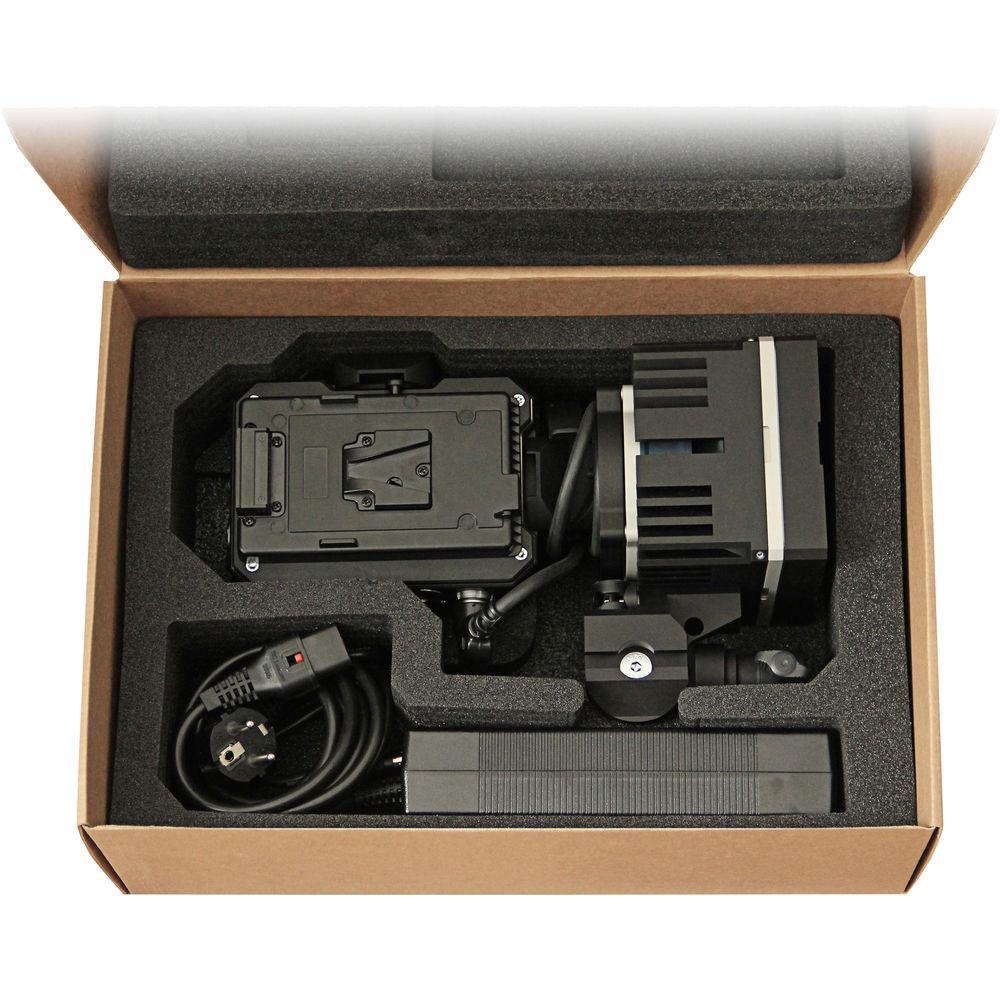

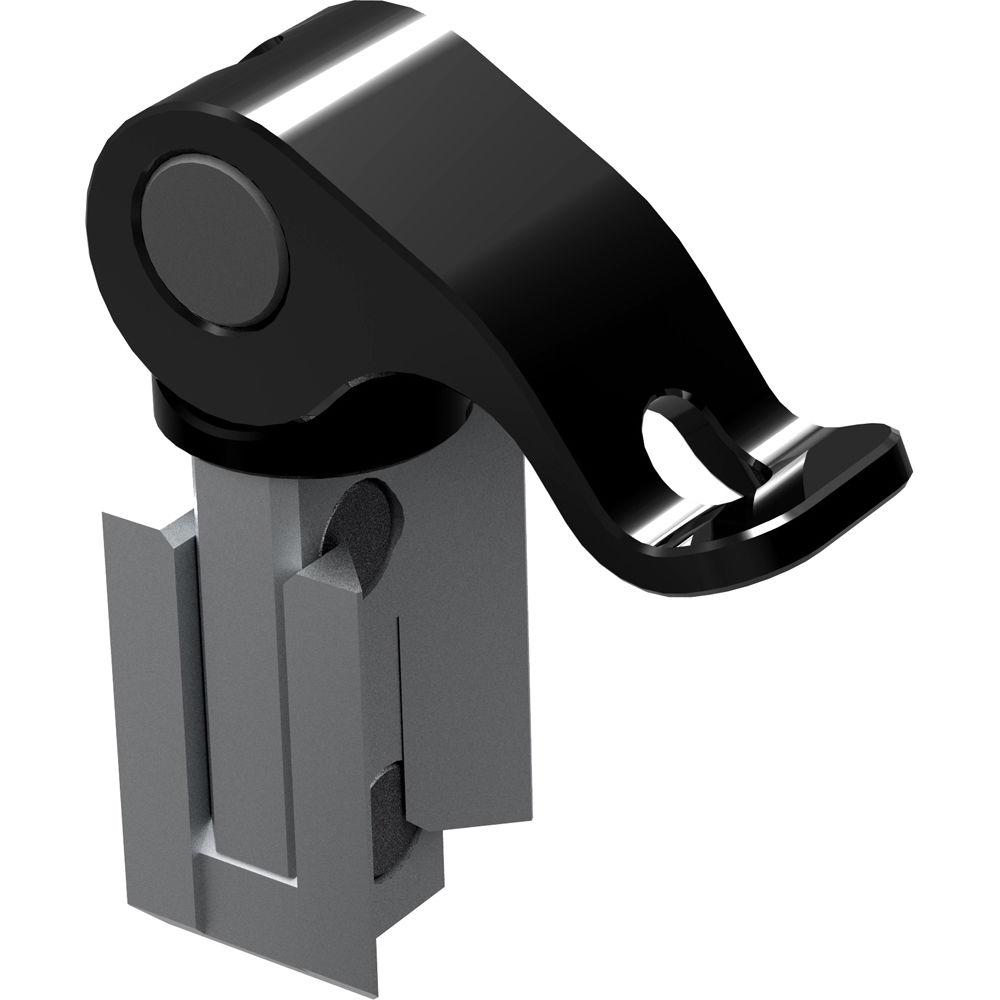

170 lux / 16 fc at 49' / 15 m UPC: 850109006300 In the Box Digital Sputnik DS 1 LED Light Modular System DS1 Cardboard Box DS1 PSU AC/DC Converter DS Light Module RGBW 2 x DS Eccentric Lock udcswqfezzuw DS Tripod Mount DS Light Module Cable (2.5') DS1 XLR Y-Cable 1x1 Diffuser Lens 34/76 with Bag Clip Clip Bag AC Cable IECLock C13 6' / 1.8 m Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Sputnik DS 1 LED Light Modular System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Sputnik DS1 Specs | | | Beam Angle | 20° | | Color Temperature | 1500 to 10,000K | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Fixture Dimensions | Fixture: 4.0 x 4.0" / 116.0 x 116.0 mm | | Fixture Weight | 2.8 lb / 1.3 kg | | | | Battery Plate | 2 x V-Mount | | | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | Remote Control Type | DMX, Wi-Fi | | | | AC Input Power | 90 to 260 VAC, 50 / 60 Hz | | DC Input Power | 12 to 36 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 140 W | | | | IP Rating | IP20 | | Operating Temperature | 0 to 115°F / -20 to 45°C | | | | Package Weight | 11.005 lb | | Box Dimensions (LxWxH) | 17.05 x 12.45 x 7.1" |
