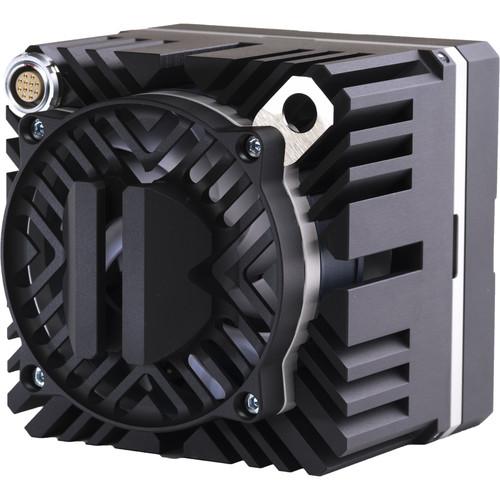

User Manual for Digital Sputnik DS RGBW LED Light Module Click to enlarge the picture
Contents of the user manual for the Digital Sputnik DS RGBW LED Light
- Product category: Misc. Parts Digital Sputnik
- Brand: Digital Sputnik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Sputnik Misc. Parts
|
User manual for the Digital Sputnik DS RGBW LED Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Sputnik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Sputnik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Sputnik product will considerably shorten its lifespan!
|
Product description The DS RGBW LED Light Module from Digital Sputnik is the interchangeable lynchpin of the modular DS LED system. This listing is for the module only and requires a power supply for use. Able to output light equivalent to that of a 100W HMI or a 500W tungsten fixture while measuring just 4 x 4", the module packs a huge amount of power in a very small package. Outfitted with its required PSU, The RGBW module provides color temperature adjustment from 1500 to 10,000K with Hue and Saturation control, allowing it to render literally millions of colors. The fixture offers a focused beam angle of 20° along with flicker-free dimming from 0-100% for maximum flexibility. Both dimming and color control can be adjusted manually on the fixture or remotely via DMX or ArtNet. Using the optional PSU, the module can be run off batteries thanks to its dual V-mount battery plate setup, or it can be powered by mains current using the included, worldwide 90-260 VAC adapter. - Modular Design
- All the DS line products use the same interchangeable light module as the core of the system. You can pick between a variety of accessories to shape the lighting fixture.
- Color Science
- Each light module has been factory calibrated with a profile saved into every module. Constant color coordinates are kept through the dimming range using high-precision, multi-dimensional LUTs (lookup tables). All channels are 16-bit flicker-free, current-controlled with proprietary four-channel HSL (hue, saturation, lightness) controls that allow for dimming the light with the exact mixture of white balance and tint.
- Hybrid Thermal Design
- The system uses passive and active cooling for maximum efficiency, keeping the modules at constant temperature to minimize fluctuations of output and color. It is possible to remotely control the fan speed over DMX/RDM or ArtNet.
- Luminous
- The system provides advanced RGB mixing, on par with professional colorist tools. The DS tools are an RGB LED solution able to challenge the output of widely used HMI technology.
- Upgradable
- Technology developments do not stand still over the years, so the whole line DS products is designed to maintain its value by Digital Sputnik's offer of gradual software and hardware upgrades. Most hardware upgrades are available as kits.
- LightGrading App
- The LightGrading control software offers a simple and intuitive approach to lighting, allowing the cinematographer to navigate the lights and their parameters from a phone app, grading and achieving the look instead of grading the image later in post-production.
- Photometrics
- 32000 lux / 2973 fc at 3.0' / 1.0 m
3600 lux / 334 fc at 10' / 3.0 m
1300 lux / 121 fc at 16' / 5.0 m
330 lux / 31 fc at 33' / 10 m
170 lux / 16 fc at 49' / 15 m UPC: 850109006041 In the Box Digital Sputnik DS RGBW LED Light Module Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Sputnik DS RGBW LED Light Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Sputnik DS01611005 Specs | Light Source | RGBW LED | | Color Temperature | 1500 to 10,000K with hue and saturation control | | Beam Angle | 20° | | Dimming | 0 to 100% | | Control | Local controls
Wi-Fi (optional)
DMX (optional)
Wireless DMX (optional)
ArtNet (optional) | | Battery Plate | 2 x V-mount | | Power Requirements | Module: 12 to 36 VDC
Optional PSU: 90 to 260 VAC | | Power Draw | 140 W | | Operating Temperature | 0 to 115°F / -20 to 45°C | | Dimensions | Module: 4.0 x 4.0" / 116 x 116 mm |
