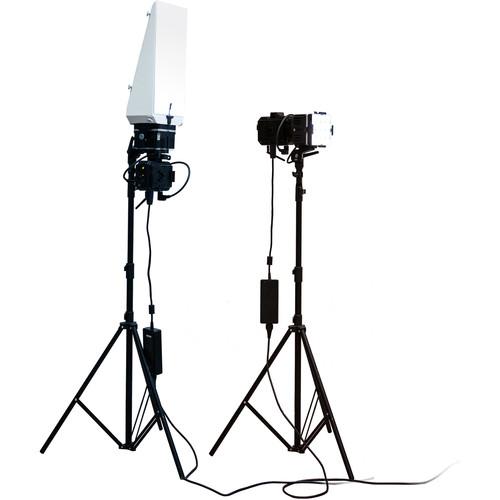

Digital Sputnik DS1 LED Dual System

User Manual for Digital Sputnik DS1 LED Dual System

• Product category: LED Lights Digital Sputnik
• Brand: Digital Sputnik
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Digital Sputnik LED Lights

Product description

• DS1 Power Supply The DS1 Power Supply from Digital Sputnik provides 90 to 260 VAC current to one of the system's LED modules, which is required for use. The DS1 also requires an AC/DC adapter for use. Alternatively, it can run on batteries when mains power is unavailable thanks to its dual V-mount battery plate. Within the power supply are controls for color temperature, hue, saturation, and light intensity. Adjustments are made locally on the fixture but control options include Wi-Fi, DMX, and ArtNet remote control. UPC: 850109006058
• DS1 AC/DC Converter The DS1 AC/DC Converter from Digital Sputnik provides universal 90 to 260 VAC current to the DS1 power supply. UPC: 863220000140
• DS RGBW LED Light Module The DS RGBW LED Light Module from Digital Sputnik is the interchangeable lynchpin of the modular DS LED system. This listing is for the module only and requires a power supply for use. Able to output light equivalent to that of a 100W HMI or a 500W tungsten fixture while measuring just 4 x 4", the module packs a huge amount of power in a very small package. Outfitted with its required PSU, The RGBW module provides color temperature adjustment from 1500 to 10,000K with Hue and Saturation control, allowing it to render literally millions of colors. The fixture offers a focused beam angle of 20° along with flicker-free dimming from 0-100% for maximum flexibility. Both dimming and color control can be adjusted manually on the fixture or remotely via DMX or ArtNet. Using the optional PSU, the module can be run off batteries thanks to its dual V-mount battery plate setup, or it can be powered by mains current using the included, worldwide 90-260 VAC adapter.
  Modular Design
  • All the DS line products use the same interchangeable light module as the core of the system. You can pick between a variety of accessories to shape the lighting fixture.
  Color Science
  • Each light module has been factory calibrated with a profile saved into every module. Constant color coordinates are kept through the dimming range using high-precision, multi-dimensional LUTs (lookup tables). All channels are 16-bit flicker-free, current-controlled with proprietary four-channel HSL (hue, saturation, lightness) controls that allow for dimming the light with the exact mixture of white balance and tint.
  Hybrid Thermal Design
  • The system uses passive and active cooling for maximum efficiency, keeping the modules at constant temperature to minimize fluctuations of output and color. It is possible to remotely control the fan speed over DMX/RDM or ArtNet.
  Luminous
  • The system provides advanced RGB mixing, on par with professional colorist tools. The DS tools are an RGB LED solution able to challenge the output of widely used HMI technology.
  Upgradable
  • Technology developments do not stand still over the years, so the whole line DS products is designed to maintain its value by Digital Sputnik's offer of gradual software and hardware upgrades. Most hardware upgrades are available as kits.
  LightGrading App
  • The LightGrading control software offers a simple and intuitive approach to lighting, allowing the cinematographer to navigate the lights and their parameters from a phone app, grading and achieving the look instead of grading the image later in post-production.
  Photometrics
  • 32000 lux / 2973 fc at 3.0' / 1.0 m
    3600 lux / 334 fc at 10' / 3.0 m
    1300 lux / 121 fc at 16' / 5.0 m
    330 lux / 31 fc at 33' / 10 m
    170 lux / 16 fc at 49' / 15 m
  UPC: 850109006041
• DS Tripod Mount The DS Tripod Mount from Digital Sputnik is a tiltable accessory that allows DS modules to be attached to a tripod. UPC: 850109006126
• DS Light Module Cable (2.5') This DS Light Module Cable is a 2.5'-long cable that allows you to move your Digital Sputnik DS 1, DS 3, or DS 3+ fixture away from its power source. It is a 0.3"-diameter dedicated cable and connects directly to both the LED fixture and its respective AC power supply. UPC: 850109006317
• DS1 XLR Y-Cable The Digital Sputnik DS1 XLR Y-Cable is a pass-through cable that allows you to split the DMX signal between two DS fixtures. UPC: 850109006997
• 1x1 Diffuser Lens 34/76 with Bag Compatible with DS Series LED lights, the 1x1 Diffuser Lens 34/76 with Bag from Digital Sputnik is a two-sided holographic lens that controls beam spread. It covers a single light module. The Diffuser Lens can narrow the beam spread to either 34 or 76°.
• Single Module SoftBlade The Single Module SoftBlade from Digital Sputnik is a triangular, blade-shaped diffusion accessory that fits over one DS module and softens its output. UPC: 850109006690

• DS Eccentric Lock

• Limited 3-Year Warranty

• Limited 3-Year Warranty

• Limited 3-Year Warranty

• Limited 3-Year Warranty

• Limited 3-Year Warranty

• Limited 3-Year Warranty

• Bag

• Limited 3-Year Warranty

• Limited 3-Year Warranty

Also Includes

• DS1 Dual Cardboard Box
• 12 x Clips
• Clip Bag
• AC Cable IECLock C 13 6' / 1.8 m
• Limited 3-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• DS1 Power Supply

  AC Input Power	90 to 260 VAC, 50 / 60 Hz
  Output Voltage	36 VDC

  Battery Bay	V-Mount
  Operating Temperature	0 to 115°F / -20 to 45°C

  Box Dimensions (LxWxH)	5.0 x 5.0 x 5.0"

• DS1 AC/DC Converter

  AC Input Power	90 to 260 VAC, 50 / 60 Hz

• DS RGBW LED Light Module

  Light Source	RGBW LED
  Color Temperature	1500 to 10,000K with hue and saturation control
  Beam Angle	20°
  Dimming	0 to 100%
  Control	Local controls Wi-Fi (optional) DMX (optional) Wireless DMX (optional) ArtNet (optional)
  Battery Plate	2 x V-mount
  Power Requirements	Module: 12 to 36 VDC Optional PSU: 90 to 260 VAC
  Power Draw	140 W
  Operating Temperature	0 to 115°F / -20 to 45°C
  Dimensions	Module: 4.0 x 4.0" / 116 x 116 mm

• DS Eccentric Lock

  Box Dimensions (LxWxH)	9.0 x 9.0 x 5.0"

• DS Light Module Cable (2.5')

  Cable Length	2.5' / 75 cm
  Cable Diameter	0.3" / 7 mm

• 1x1 Diffuser Lens 34/76 with Bag

  Compatibility	DS Series LED lights
  Function	It's a two-sided holographic lens that controls beam spread. It covers a single light module.

  Box Dimensions (LxWxH)	5.5 x 5.0 x 0.75"

• Single Module SoftBlade

  Shape	Strip
  Light Loss	None

  Box Dimensions (LxWxH)	21.25 x 10.5 x 6.75"

• DS Tripod Mount
• DS1 XLR Y-Cable
