Product description

• DS RGBW LED Light Module The DS RGBW LED Light Module from Digital Sputnik is the interchangeable lynchpin of the modular DS LED system. This listing is for the module only and requires a power supply for use. Able to output light equivalent to that of a 100W HMI or a 500W tungsten fixture while measuring just 4 x 4", the module packs a huge amount of power in a very small package. Outfitted with its required PSU, The RGBW module provides color temperature adjustment from 1500 to 10,000K with Hue and Saturation control, allowing it to render literally millions of colors. The fixture offers a focused beam angle of 20° along with flicker-free dimming from 0-100% for maximum flexibility. Both dimming and color control can be adjusted manually on the fixture or remotely via DMX or ArtNet. Using the optional PSU, the module can be run off batteries thanks to its dual V-mount battery plate setup, or it can be powered by mains current using the included, worldwide 90-260 VAC adapter.
  Modular Design
  • All the DS line products use the same interchangeable light module as the core of the system. You can pick between a variety of accessories to shape the lighting fixture.
  Color Science
  • Each light module has been factory calibrated with a profile saved into every module. Constant color coordinates are kept through the dimming range using high-precision, multi-dimensional LUTs (lookup tables). All channels are 16-bit flicker-free, current-controlled with proprietary four-channel HSL (hue, saturation, lightness) controls that allow for dimming the light with the exact mixture of white balance and tint.
  Hybrid Thermal Design
  • The system uses passive and active cooling for maximum efficiency, keeping the modules at constant temperature to minimize fluctuations of output and color. It is possible to remotely control the fan speed over DMX/RDM or ArtNet.
  Luminous
  • The system provides advanced RGB mixing, on par with professional colorist tools. The DS tools are an RGB LED solution able to challenge the output of widely used HMI technology.
  Upgradable
  • Technology developments do not stand still over the years, so the whole line DS products is designed to maintain its value by Digital Sputnik's offer of gradual software and hardware upgrades. Most hardware upgrades are available as kits.
  LightGrading App
  • The LightGrading control software offers a simple and intuitive approach to lighting, allowing the cinematographer to navigate the lights and their parameters from a phone app, grading and achieving the look instead of grading the image later in post-production.
  Photometrics
  • 32000 lux / 2973 fc at 3.0' / 1.0 m
    3600 lux / 334 fc at 10' / 3.0 m
    1300 lux / 121 fc at 16' / 5.0 m
    330 lux / 31 fc at 33' / 10 m
    170 lux / 16 fc at 49' / 15 m
  UPC: 850109006041
• DS3 Power Supply The DS3 Power Supply from Digital Sputnik provides 90 to 260 VAC current to three of the system's LED modules, which are required for use. Within the power supply are controls for color temperature, hue, saturation, and light intensity. Adjustments are made locally on the fixture but control options include Wi-Fi, DMX, and ArtNet remote control.

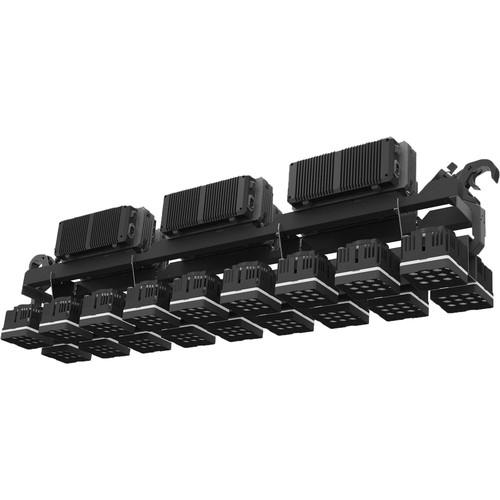

• DS3 Beam The DS3 Beam from Digital Sputnik is a frame that will support six DS3 Power Supply Units and 18 DS LED Modules. It is usually hung overhead. UPC: 863220000133
• DS3 Beam Case Store, transport, and protect your DS3 Beam with the Digital Sputnik Case. UPC: 850109006744
• Beam Power Distribution Cable (US) The Beam Power Distribution Cable from Digital Sputnik provides power to all 18 fixtures on the DS Beam. This is the cable sold or included for all products shipped to the US. An EU cable can be special ordered. UPC: 863220000126
• DMX Short Patch Cable The 1' Digital Sputnik DMX Short Patch Cable is used with the DS1, DS3, and DS6 power supplies to transmit DMX signal. UPC: 863220000102
• DS Light Module Cable (2.5') This DS Light Module Cable is a 2.5'-long cable that allows you to move your Digital Sputnik DS 1, DS 3, or DS 3+ fixture away from its power source. It is a 0.3"-diameter dedicated cable and connects directly to both the LED fixture and its respective AC power supply. UPC: 850109006317
