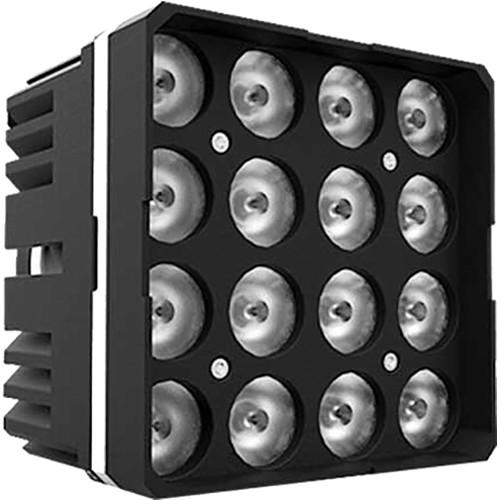

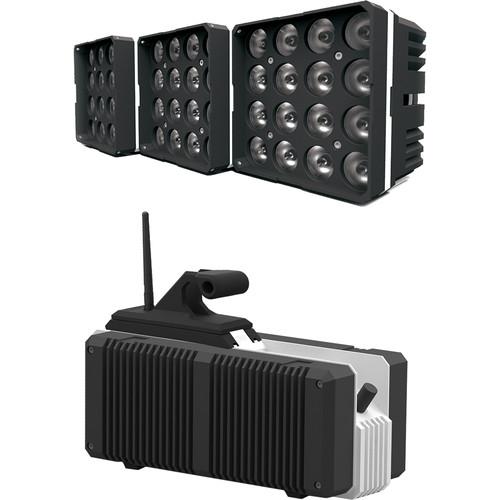

Product description Composed of three smaller DS1 lights, the DS3 LED Modular Light Basic System from Digital Sputnik features 0-100% flicker-free dimming, 1500-10,000K with +/- green tint, and full RGB and primary color rendering. The lights can be controlled remotely via Wi-Fi with a separately available Wi-Fi Control Module or via DMX with a separately available DMX module. Each light draws 140 watts of power and connects to the single DS3 power supply with a long, 30' cable. The included power supply works on 90-260 VAC for international use. Thanks to factory calibration and setup, the DS3 system is ready to use right out of the box.

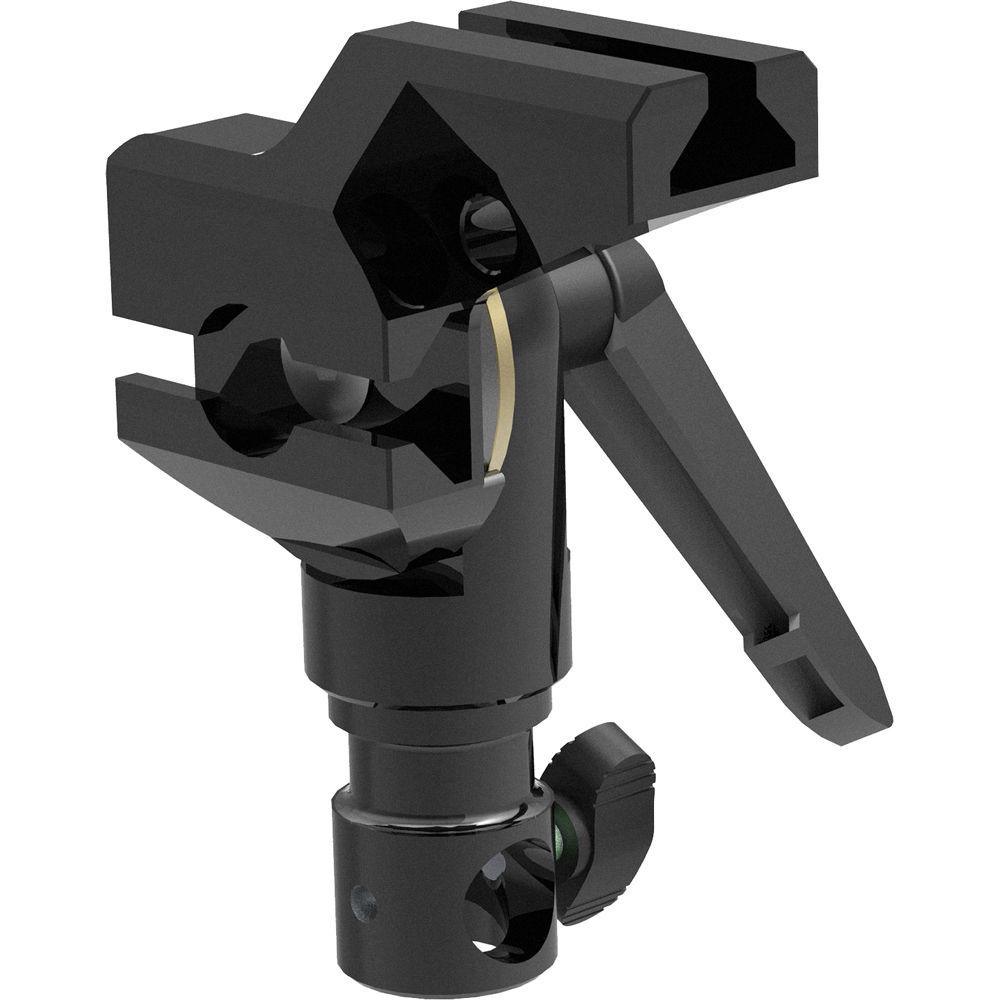

The DS3 Basic System includes a cardboard storage box, 3 DS Light Module RGBWs, 3 DS3 32.8' cables, DS3 PSU, 3 DS Eccentric Locks, 3 DS Tripod Mounts, AC Cable IECLock C13 6', and a limited 3-year warranty. - DS3 Configurations
- This DS3 is a Basic configuration that functions as a starter system for location lighting or fixed installations.
- Factory Calibration
- Light modules have been factory calibrated with a profile saved into each module.

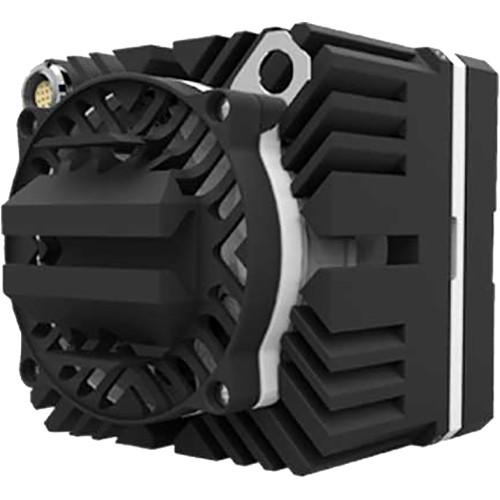

- Advanced Thermal Management
- Microprocessor controlled cooling solution using passive and active cooling for maximum efficiency.
- Updateable
- Software based architecture allows for over-the-air software updates.
- Live Monitoring
- Real-time two-way communication with light module for health, temperature and usage monitoring.
- Modular Design
- Paneling of light modules and power supplies makes it easy to build higher output light fixtures and custom solutions.
- Precision Dimming
- 16-bit, 4-channel high precision dimming allows for billions of possible effective color combinations. Proprietary 4-channel HSL controls allow to dim the light with the exact mixture of white balance and tint.
- Advanced Color Science
- Constant color coordinates through the dimming range using high precision multi-dimensional LUTs
- Super Luminous
- RGBW module has comparable output to 100W HMI or 500W Tungsten from an extremely small 1.3kg / 2.8 lb unit.
- Raw Processing Power
- High color precision and flicker free dimming is made possible by microprocessor software and a unique hardware current control system.
- Upgradeable
- The LED board inside the fixture is upgradeable, allowing for easy and affordable updates in the future.
In the Box Digital Sputnik DS3 LED Modular Light Basic System DS3 Cardboard Box 3 x DS Light Module RGBW 3 x DS3 32' / 10m Cable DS3 PSU 3 x DS Tripod Mount 3 x DS Eccentric Lock AC Cable IECLock C13 6' / 1.8 m Limited 3-Year Warranty User Manual PDF 3.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Sputnik DS3 LED Modular Light Basic System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Sputnik DS3 Specs | | | Beam Angle | 20° | | Color Temperature | 1500 to 10,000K | | Color Accuracy Standard | CQS 80 at 3200K
CQS 82 at 5600K | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Fixture Dimensions | Overall: 16.5 x 15.7 x 9.1" / 42.0 x 40.0 x 23.0 cm
Fixture: 4.0 x 4.0" / 11.6 x 11.6 cm | | Fixture Weight | 2.8 lb / 1.3 kg | | | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 90 to 260 VAC, 50 / 60 Hz | | Power Source | AC Adapter | | Max Power Consumption | 420 W | | | | Power Supply Weight | 7.7 lb / 3.5 kg | | | | IP Rating | IP20 | | Operating Temperature | 0 to 115°F / -20 to 45°C |
