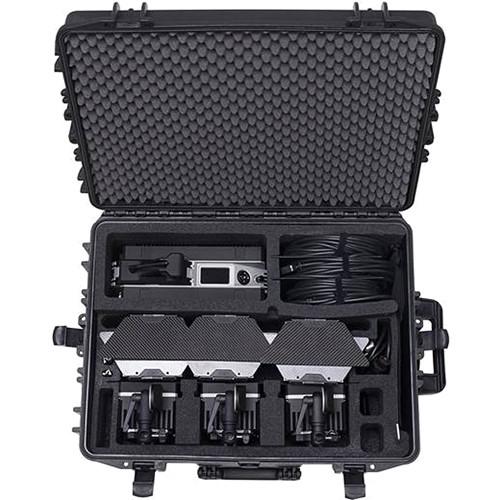

User Manual for Digital Sputnik DS3 LED Modular Light Plus System Click to enlarge the picture
Contents of the user manual for the Digital Sputnik DS3 LED Modular Light
- Product category: LED Lights Digital Sputnik
- Brand: Digital Sputnik
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Sputnik LED Lights
|
User manual for the Digital Sputnik DS3 LED Modular Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Sputnik product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Sputnik user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Sputnik product will considerably shorten its lifespan!
|
Product description Composed of three smaller DS1 lights, the DS3 LED Modular Light Plus System from Digital Sputnik features 0-100% flicker-free dimming, 1500-10,000K with +/- green tint, and full RGB and primary color rendering. The lights can be controlled remotely via Wi-Fi with the included Wi-Fi Control Module or via DMX with a separately available DMX module. Each light draws 140 watts of power and connects to the single DS3 power supply with a long, 30' cable. The included power supply works on 90-260 VAC for international use. Thanks to factory calibration and setup, the DS3 system is ready to use right out of the box.
The DS3 Plus System includes a flight case, 3 DS Light Module RGBWs, 3 DS3 30' cables, DS3 PSU, 3 DS Eccentric Locks, AC Cabel IECLock 3' DS Wi-Fi handle, 6 small barndoors, 6 large barndoors, 4 diffuser box corner profiles, 12 diffuser box slides, 3 x 1 x 1 diffuser 34/76 lenses, and a limited 3-year warranty. - DS3 Configurations
- This DS3 is a Plus configuration and includes a range of additional accessories, a flight case, and a Wi-Fi interface for remote control with an iOS device and optional accessories.
- iOS Controller
- The included Wi-Fi module allows you to control your three DS1 lights wirelessly with an iOS app.
- Factory Calibration
- Light modules have been factory calibrated with a profile saved into each module.
- Advanced Thermal Management
- Microprocessor controlled cooling solution using passive and active cooling for maximum efficiency.
- Updateable
- Software based architecture allows for over-the-air software updates.
- Live Monitoring
- Real-time two-way communication with light module for health, temperature and usage monitoring.
- Modular Design
- Paneling of light modules and power supplies makes it easy to build higher output light fixtures and custom solutions.
- Precision Dimming
- 16-bit, 4-channel high precision dimming allows for billions of possible effective color combinations. Proprietary 4-channel HSL controls allow to dim the light with the exact mixture of white balance and tint.
- Advanced Color Science
- Constant color coordinates through the dimming range using high precision multi-dimensional LUTs
- Super Luminous
- RGBW module has comparable output to 100W HMI or 500W Tungsten from an extremely small 1.3kg / 2.8 lb unit.
- Raw Processing Power
- High color precision and flicker free dimming is made possible by microprocessor software and a unique hardware current control system.
- Upgradeable
- The LED board inside the fixture is upgradeable, allowing for easy and affordable updates in the future.
UPC: 850109006263 In the Box Digital Sputnik DS3 LED Modular Light Plus System DS3+ Case 3 x DS Light Module RGBW 3 x DS3 32' / 10m Cable DS3 PSU 3 x DS Tripod Mount zweadyaqea 3 x DS Eccentric Lock AC Cable IECLock C13 6' / 1.8 m DS Wi-Fi Handle 6 x Barndoor, Small 6 x Barndoor, Large 4 x Diffuser Box Corner Profile 12 x Diffuser Box Slide 3 x 1x1 Diffuser Lens 34/76 Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Sputnik DS3 LED Modular Light Plus System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Sputnik DS3 Specs | | | Beam Angle | 20° | | Color Temperature | 1500 to 10,000K | | Color Accuracy Standard | CQS 80 at 3200K
CQS 82 at 5600K | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Fixture Dimensions | Overall: 16.5 x 15.7 x 9.1" / 42.0 x 40.0 x 23.0 cm
Fixture: 4.0 x 4.0" / 11.6 x 11.6 cm | | Fixture Weight | 2.8 lb / 1.3 kg | | | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 90 to 260 VAC, 50 / 60 Hz | | Power Source | AC Adapter | | Max Power Consumption | 420 W | | | | Power Supply Weight | 7.7 lb / 3.5 kg | | | | IP Rating | IP20 | | Operating Temperature | 0 to 115°F / -20 to 45°C | | | | Package Weight | 56.5 lb | | Box Dimensions (LxWxH) | 27.0 x 21.0 x 12.0" |
