Product description

• DS RGBW LED Light Module The DS RGBW LED Light Module from Digital Sputnik is the interchangeable lynchpin of the modular DS LED system. This listing is for the module only and requires a power supply for use. Able to output light equivalent to that of a 100W HMI or a 500W tungsten fixture while measuring just 4 x 4", the module packs a huge amount of power in a very small package. Outfitted with its required PSU, The RGBW module provides color temperature adjustment from 1500 to 10,000K with Hue and Saturation control, allowing it to render literally millions of colors. The fixture offers a focused beam angle of 20° along with flicker-free dimming from 0-100% for maximum flexibility. Both dimming and color control can be adjusted manually on the fixture or remotely via DMX or ArtNet. Using the optional PSU, the module can be run off batteries thanks to its dual V-mount battery plate setup, or it can be powered by mains current using the included, worldwide 90-260 VAC adapter.
  Modular Design
  • All the DS line products use the same interchangeable light module as the core of the system. You can pick between a variety of accessories to shape the lighting fixture.
  Color Science
  • Each light module has been factory calibrated with a profile saved into every module. Constant color coordinates are kept through the dimming range using high-precision, multi-dimensional LUTs (lookup tables). All channels are 16-bit flicker-free, current-controlled with proprietary four-channel HSL (hue, saturation, lightness) controls that allow for dimming the light with the exact mixture of white balance and tint.
  Hybrid Thermal Design
  • The system uses passive and active cooling for maximum efficiency, keeping the modules at constant temperature to minimize fluctuations of output and color. It is possible to remotely control the fan speed over DMX/RDM or ArtNet.
  Luminous
  • The system provides advanced RGB mixing, on par with professional colorist tools. The DS tools are an RGB LED solution able to challenge the output of widely used HMI technology.
  Upgradable
  • Technology developments do not stand still over the years, so the whole line DS products is designed to maintain its value by Digital Sputnik's offer of gradual software and hardware upgrades. Most hardware upgrades are available as kits.
  LightGrading App
  • The LightGrading control software offers a simple and intuitive approach to lighting, allowing the cinematographer to navigate the lights and their parameters from a phone app, grading and achieving the look instead of grading the image later in post-production.
  Photometrics
  • 32000 lux / 2973 fc at 3.0' / 1.0 m
    3600 lux / 334 fc at 10' / 3.0 m
    1300 lux / 121 fc at 16' / 5.0 m
    330 lux / 31 fc at 33' / 10 m
    170 lux / 16 fc at 49' / 15 m
  UPC: 850109006041
• DS6 Power Supply The DS6 Power Supply from Digital Sputnik provides 90 to 260 VAC current to six of the system's LED modules, which are required for use. Within the power supply are controls for color temperature, hue, saturation, and light intensity. Adjustments are made locally on the fixture but control options include Wi-Fi, DMX, and ArtNet remote control. UPC: 850109006089
• DS Wired DMX/RDM Handle The DS Wired DMX/RDM Handle from Digital Sputnik allows wired remote control of a DS LED module from a console. While DMX permits full control of the fixture's functions, RDM allows configuration, status monitoring, and management of the light in a way that does not disturb normal DMX operation. UPC: 850109006676
• DS6 Frame The Digital Sputnik DS6 Frame is a substantial, tilting, yoke-like support that accepts six DS LED modules. Cables and dimmers for all six fixtures are built-in to avoid a tangled setup.
• DS6 Cable (32.8') This DS6 Cable is a 32.8'-long cable that allows you to place your Digital Sputnik DS 6 frame away from its power source. The dedicated cable connects directly to both the frame and its respective AC power supply. UPC: 850109006355
• DS6 Diffuser Lens 34/76 with Bag Compatible with DS Series LED lights, the DS6 Diffuser Lens 34/76 with Bag from Digital Sputnik is a two-sided holographic lens that controls beam spread. It covers 3 lamps in the DS6 frame. The Diffuser Lens can narrow the beam spread to either 34 or 76°. UPC: 850109006423
• Spring Clip Bag (Set of 18) The Spring Clip Bag from Digital Sputnik contains 18 spring clips that facilitate attachment of diffusers to DS1, DS3, and DS6 fixtures instead of using gaffer tape. The clips come in a drawstring pouch. UPC: 850109006706

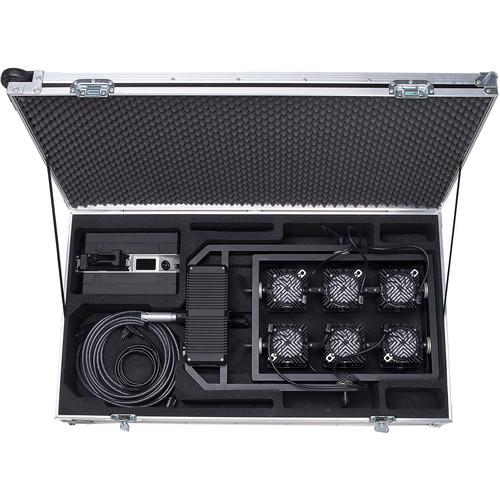

• DS6 Frame Flight Case Store, transport, and protect your DS6 Frame with the Digital Sputnik Flight Case. UPC: 850109006768

• Limited 3-Year Warranty

• Limited 3-Year Warranty

• Limited 3-Year Warranty

• Limited 3-Year Warranty

• Limited 3-Year Warranty

• Bag

• Limited 3-Year Warranty

• 18 x Clip

• Pouch

Also Includes

• AC Cable IECLock C13 6' US
• Limited 3-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• DS RGBW LED Light Module

  Light Source	RGBW LED
  Color Temperature	1500 to 10,000K with hue and saturation control
  Beam Angle	20°
  Dimming	0 to 100%
  Control	Local controls Wi-Fi (optional) DMX (optional) Wireless DMX (optional) ArtNet (optional)
  Battery Plate	2 x V-mount
  Power Requirements	Module: 12 to 36 VDC Optional PSU: 90 to 260 VAC
  Power Draw	140 W
  Operating Temperature	0 to 115°F / -20 to 45°C
  Dimensions	Module: 4.0 x 4.0" / 116 x 116 mm

• DS6 Power Supply

  AC Input Power	90 to 260 VAC, 50 / 60 Hz
  Power Draw	840.00 W

  Operating Temperature	0 to 115°F / -20 to 45°C

• DS Wired DMX/RDM Handle

  Input / Output

  5-pin XLR in 5-pin XLR out

• DS6 Frame

  Capacity	6 DS LED modules
  Mount	1 1/8" / 28 mm Junior pin

• DS6 Cable (32.8')

  Cable Length

  32.8' / 10 m

  Box Dimensions (LxWxH)	14.7 x 11.2 x 7.3"

• DS6 Diffuser Lens 34/76 with Bag

  Compatibility	DS Series LED lights
  Function	It's a two-sided holographic lens that controls beam spread. It covers 3 lamps in the DS6 frame.

• Spring Clip Bag (Set of 18)

  Box Dimensions (LxWxH)	7.75 x 6.0 x 1.25"

• DS6 Frame Flight Case
