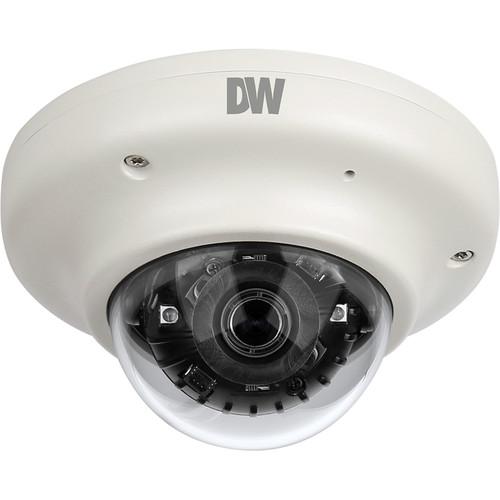

User Manual for Digital Watchdog 2MP Outdoor AHD Dome Camera Click to enlarge the picture
Contents of the user manual for the Digital Watchdog 2MP Outdoor AHD Dome
- Product category: Wired Analog & HD Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired Analog & HD Cameras
|
User manual for the Digital Watchdog 2MP Outdoor AHD Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description The 2MP Outdoor AHD Dome Camera from Digital Watchdog uses AHD technology to transmit high-definition video over coaxial cables. The camera features a Panasonic 1/3" CMOS image sensor for 1080p resolution at 30 fps, and it uses a 3.6mm fixed lens with IR LEDs for night vision at a distance of up to 50'. Additional features include STAR-LIGHT technology, programmable privacy zones, 3D-DNR, highlight masking exposure, automatic gain control, backlight compensation, and automatic white balance. There is an easy-to-use icon driven OSD menu with a built-in joystick for navigating the system, and a second BNC port provides video output capabilities. The camera is IP67-rated weather and dust resistant for use in outdoor locations. - Panasonic 1/3" CMOS sensor allows the camera to record HD videos with a maximum frame rate of 30 fps
- IR LEDs provide night vision at a distance of up to 50'
- Smart IR technology with intelligent camera sync
- Features STAR-LIGHT super low light technology
- Supports various functions like Smart 3D DNR, HME, true day/night, AGC, BLC, DRC, and AWB
- Secondary video-BNC output
- Easy icon-driven OSD menu with built-in joystick
- Programmable privacy zones
- IP67 certified weather resistant housing
UPC: 813379015717 In the Box Digital Watchdog 2MP Outdoor AHD Dome Camera Limited 1-Year Warranty on IR LEDs Limited 5-Year Warranty on Camera Guides & Manuals rscftxyqxqbftvduex Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog 2MP Outdoor AHD Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Digital Watchdog 2MP Outdoor AHD Dome Camera can be downloaded in PDF format at the link stated below.
Technical parametersDigital Watchdog DWC-V7753WTIR Specs | | | Sensor | Panasonic 1/3" CMOS | | Active Pixels | H x V: 1944 x 1092 | | Scanning System | Progressive | | Frequency | 60/50 Hz | | Technology | Signal: 2 MP AHD | | Synchronization | Internal | | Resolution | 1920 x 1080 (1080p) | | Minimum Illumination | Color: 0.35 lux @ f/1.4 (30 IRE)
B/W: 0 lux @ f/1.4 (30 IRE) | | S/N Ratio | 55 dB | | Video Output | AHD 30 fps @ 1080p / 60 fps @ 720p / 30 fps @ 720p | | | | Focal Length | 3.6 mm | | Type | Fixed | | IR Distance | 50' (15 m) | | | | Shutter Speed | 1/30 (25) to 1/30,000 sec | | Backlight | Off / On | | Sense-Up | STAR-LIGHT: Off, x2 to x32 | | Wide Dynamic Range | Off / On | | Digital Noise Reduction | Off, Low, Middle, High | | White Balance | Auto / Auto-Ex / Preset / Manual | | Day/Night | Day / Night / Auto | | Flip / Mirror | Yes | | AGC (Automatic Gain Control) | Maximum 60 dB | | Motion Detection | Yes | | Programmable Privacy Zones | 16 | | Sharpness | 0 to 10 | | Gamma | 0.45 to 0.75 | | Digital Zoom | x1.0 to x16.0 | | | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Operating Humidity | Less than 90% (non-condensing) | | IP Rating | IP67 (weather and dust resistant) | | Certifications | FCC, CE, ROHS | | | | Power Requirements | 12 VDC | | Power Consumption | 12 VDC: 2.15 W, 179 mA
LED On: 3.64 W, 3.3 mA | | | | Material | Aluminum | | Dimensions | 4.1 x 2.4" (10.5 x 6.1 cm) | | Weight | 15.2 oz (430.9 g) | | | | Package Weight | 1.195 lb | | Box Dimensions (LxWxH) | 5.35 x 5.3 x 4.75" |
