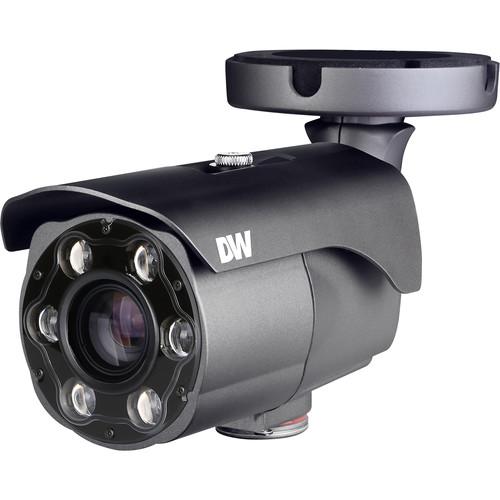

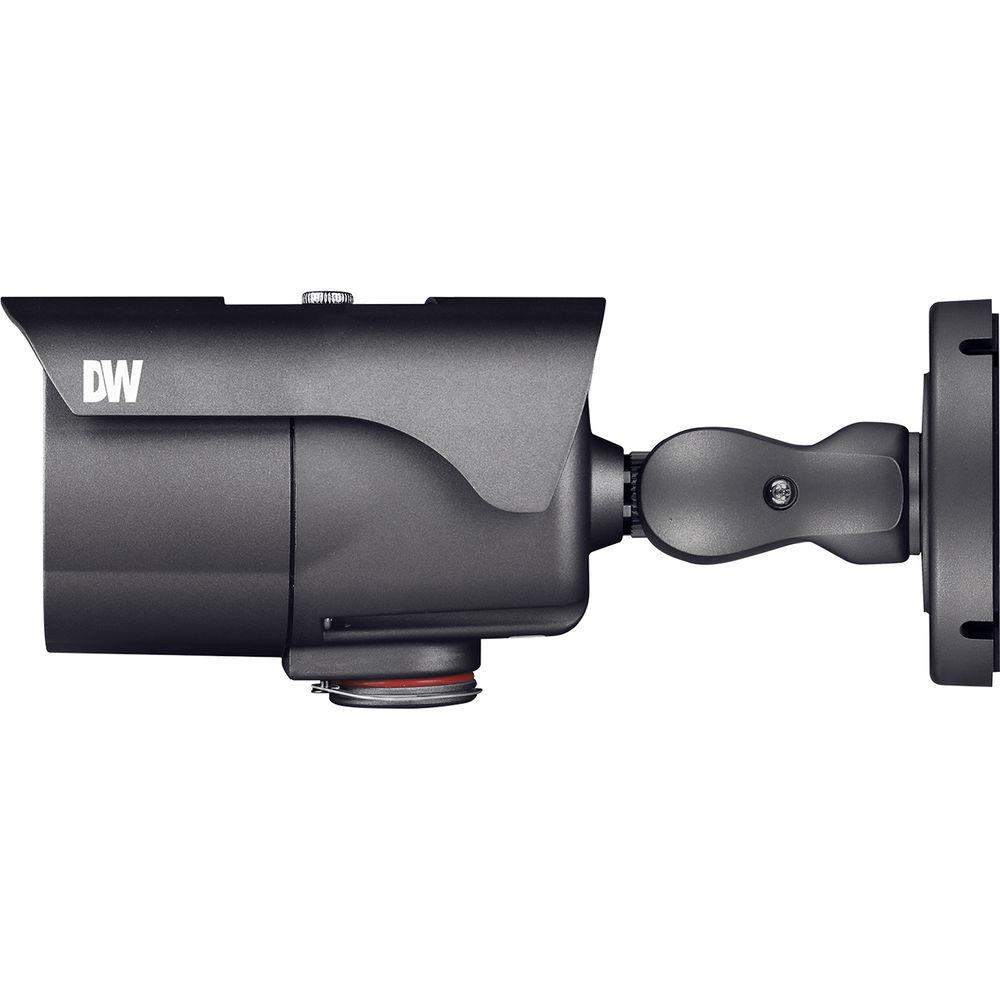

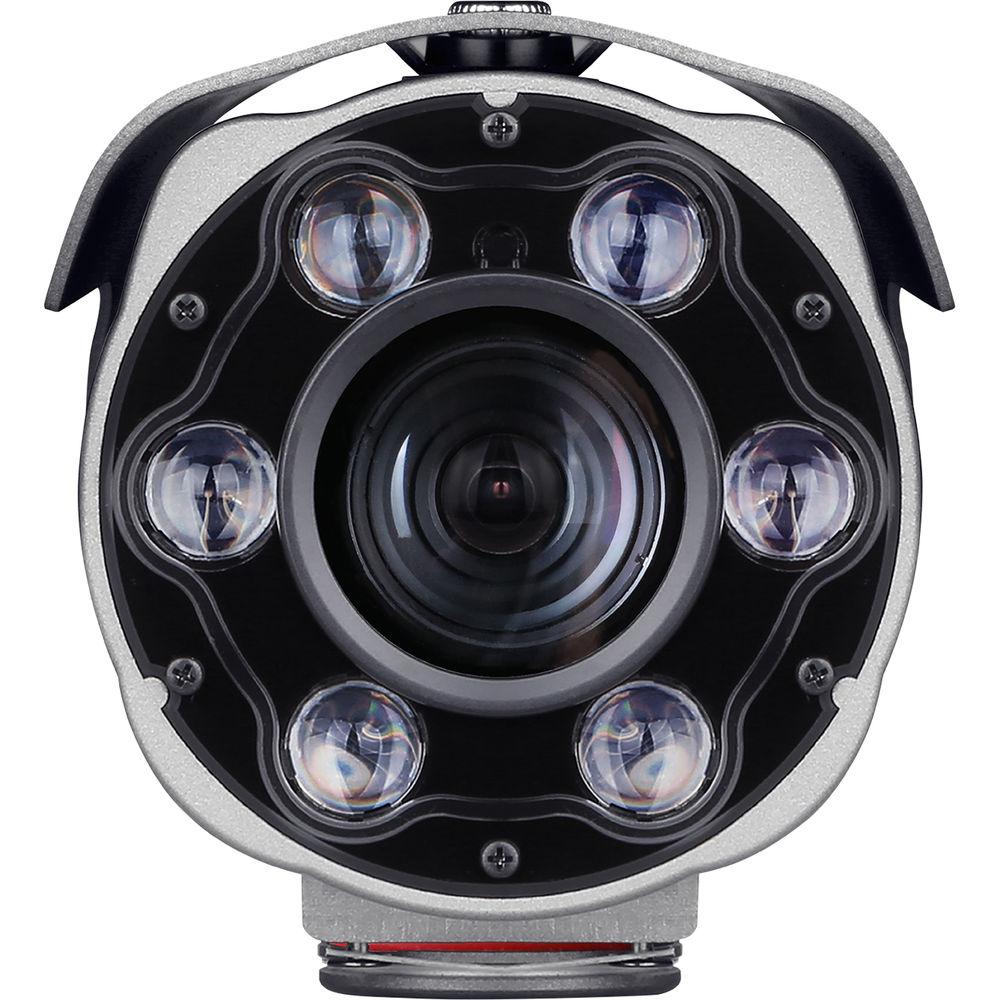

User Manual for Digital Watchdog 4MP License Plate Recognition Outdoor Network Bullet Camera Click to enlarge the picture
Contents of the user manual for the Digital Watchdog 4MP License Plate Recognition
- Product category: Wired IP Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired IP Cameras
 |
User manual for the Digital Watchdog 4MP License Plate Recognition contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description The 4MP License Plate Recognition Outdoor Network Bullet Camera from Digital Watchdog is designed to capture the license plates of moving vehicles traveling at speeds as high as 50 mph from a distance of up to 150'. The camera features a 4 MP 1/3" CMOS image sensor to capture 2560 x 1440 resolution video at up to 30 fps. The 6-50mm varifocal lens delivers a 90-7.3° field of view to monitor a wide area. Smart IR enables up to 60' of night vision. Additionally, 3D digital noise reduction and auto white balance ensure that the camera captures accurate images in varying lighting conditions. PoE support simplifies installation by providing both power and network connection over a single Ethernet cable.A microSD/SDHC/SDXC slot supports cards up to 64GB, which are available for purchase separately. The camera is ONVIF-compliant, with Profile S support for interoperability between network video products. It is housed in an IP66-rated aluminum enclosure for outdoor use. - H.264 and MJPEG dual-streaming compression
- 36 dB AGC (auto gain control)
- Smart 3D digital noise reduction
- Up to 16 programmable privacy zones
- IP66-rated aluminum enclosure for outdoor use
UPC: 813379019272 In the Box Digital Watchdog 4MP License Plate Recognition Outdoor Network Bullet Camera 4 x Screws & Plastic Anchors Torx Wrench Test Video Cable Template Sheet Waterproof Cap & Gasket DC Plug Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog 4MP License Plate Recognition Outdoor Network Bullet Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog DWC-MB44IALPR Specs | | | Sensor | 4 MP 1/3" CMOS | | Resolution | 4 MP (2560 x 1440) | | Total Pixels (H x V) | 2688 x 1520 | | Minimum Illumination | f/1.6 (30 IRE): 0.0 lux (B&W) | | Video Output | Local video output CVBS 1.0 V p-p (75 Ohms), 4:3 aspect ratio | | | | Focal Length / Aperture | 6-50mm, f/1.6 | | Type | P-iris, motorized zoom with auto focus lens | | Smart IR | Yes | | IR Range | 60' / 18.3 m | | Field of View | 90-7.3° | | Optical Zoom | 8.3x | | | | Audio In/Out | 1/1 | | Audio Compression | G.711 | | Alarm In/Out | 1/1 | | | | Frame Rate | Up to 30 frames per second at all resolutions on all streams | | LAN | 802.3 compliance 10/100 LAN | | Maximum User Access | 5 simultaneous users | | ONVIF Conformance | Profile S | | IP | IPv4 | | Protocols | ONVIF, TCP/IP, UDP, autoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3(MIB-2) | | Security | Password authentication, multi-level user configuration | | Memory Card Slot | microSD/SDHC/SDXC (available separately) | | Video Compression | H.264, MJPEG | | Video Management Software | DW Spectrum IPVMS | | Web Viewer | OS: Windows, Mac OS, Linux
Browser: Internet Explorer, Chrome, Firefox, Safari
| | Resolution | H.264: 1440p, 1080p, 720p, VGA, D1, CIF
MJPEG: 1280 x 720, 800 x 600, VGA, 768 x 432, D1, CIF
| | Video Bit Rate | 100 kb/s to 10 Mb/s, multi-rate for preview and recording | | Bit Rate Control | Multi streaming CBR/VBR at H.264 controllable frame rate and bandwidth | | | | Image Capture | Range: Up to 60' / 18.3 m | | Maximum Speed | For Vehicles: 50 mph | | Digital Noise Reduction (DNR) | 3D, 0-11 | | AGC (Automatic Gain Control) | 36 dB | | Alarm Notifications | Email, FTP server, SD card recording | | Shutter Modes | Auto, manual, anti-flickering | | Slow Shutter | off, x2, x3, x5, x6, x7.5, x10 | | Programmable Privacy Zones | 16 | | Dynamic Range | Compression: 120 dB or above | | | | Operating Temperature | 40 to 122°F / -40 to 50°C | | Operating Humidity | Less than 90% (non-condensing) | | IP Rating | IP66 | | Certifications | CE, FCC, RoHS | | Power Requirements | DC12V, PoE (IEEE 802.3af Class 3)
Adapter not included
| | Power Consumption | 12 VDC: 11 W max
PoE: 12.9 W max
| | Housing Material | Aluminum | | Housing Type | Bullet | | Dimensions (L x Diam) | 9.73 x 3.8" / 247.2 x 96.7 mm
Dimensions based on the position of the sunshield cover
| | Weight | 1.98 lb / 0.9 kg | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 12.3 x 5.4 x 5.2" |
