User Manual for Digital Watchdog 96-Channel Blackjack CUBE DL NVR with 16TB SSD Click to enlarge the picture
Contents of the user manual for the Digital Watchdog 96-Channel Blackjack CUBE DL
- Product category: Network Video Recorders (NVRs) Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Network Video Recorders (NVRs)
 |
User manual for the Digital Watchdog 96-Channel Blackjack CUBE DL contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|

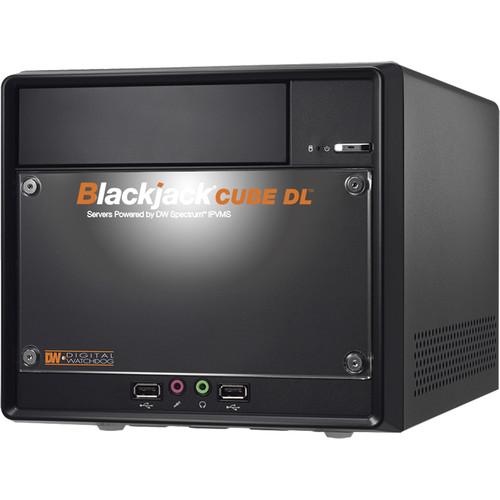

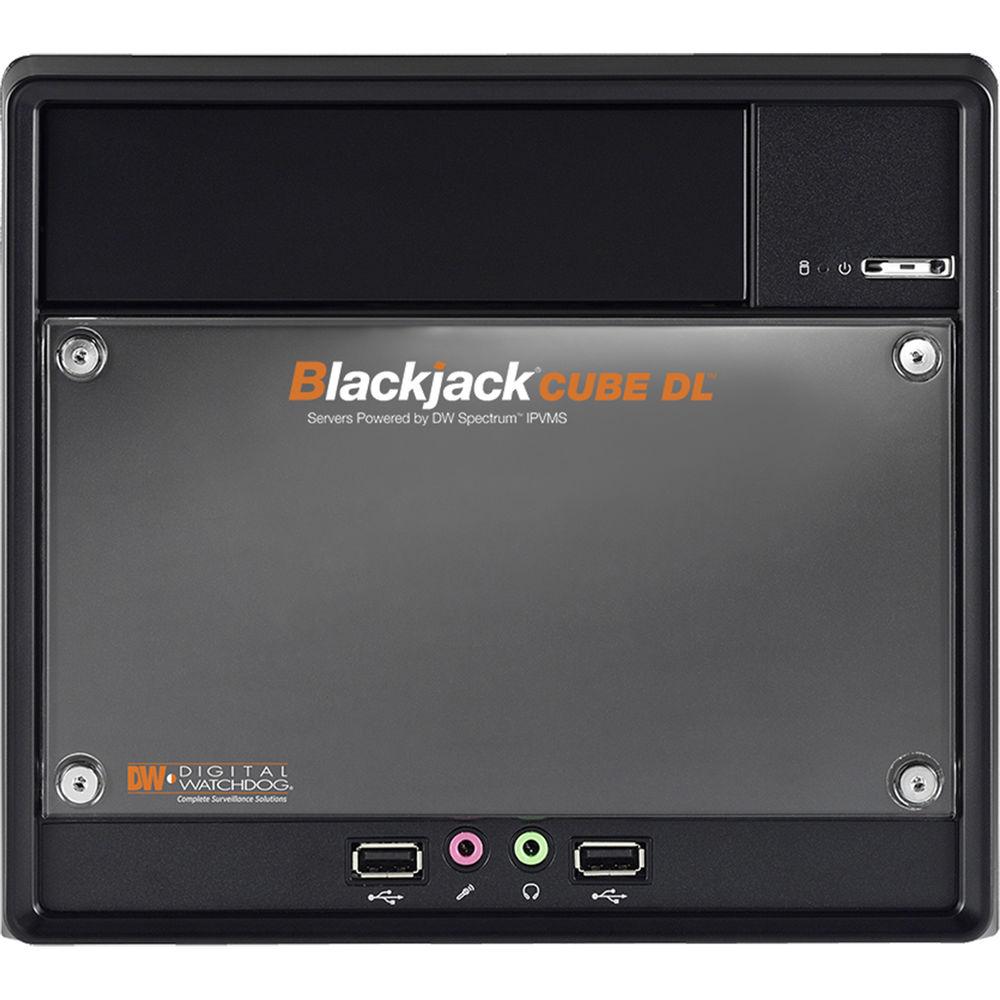

Product description The 96-Channel Blackjack CUBE DL NVR from Digital Watchdog can record and manage up to 96 single- and multi-sensor IP cameras broadcasting up to 2.1MP video at 30 fps to a maximum of 480 Mbps throughput. It can also support up to three Panzilla cameras with 48 MP or 32 MP. The hardware includes an i7 processor with 16GB of memory, a high-performance professional graphics card with enterprise class hard drives, and Windows operating system residing on a solid-state drive pre-loaded with DW Spectrum IPVMS and 4-channel of multi-megapixel recording. The NVR is ONVIF-conformant and includes 16TB of internal storage. - Hosting DW Spectrum for setup, configuration, monitoring, and recording
- Simple enterprise scalability
- 4 IP channel licenses included
UPC: 813379019920 In the Box Digital Watchdog 96-Channel Blackjack CUBE DL NVR with 16TB SSD 4 Spectrum IPVMS Licenses Recovery USB Keyboard Mouse Power Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog 96-Channel Blackjack CUBE DL NVR with 16TB SSD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog Blackjack Cube DL Specs | IP Cameras Supported | 96 | | Licenses Included | 4 | | Form Factor | Desktop | | Operating Systems | Windows 7 64-bit

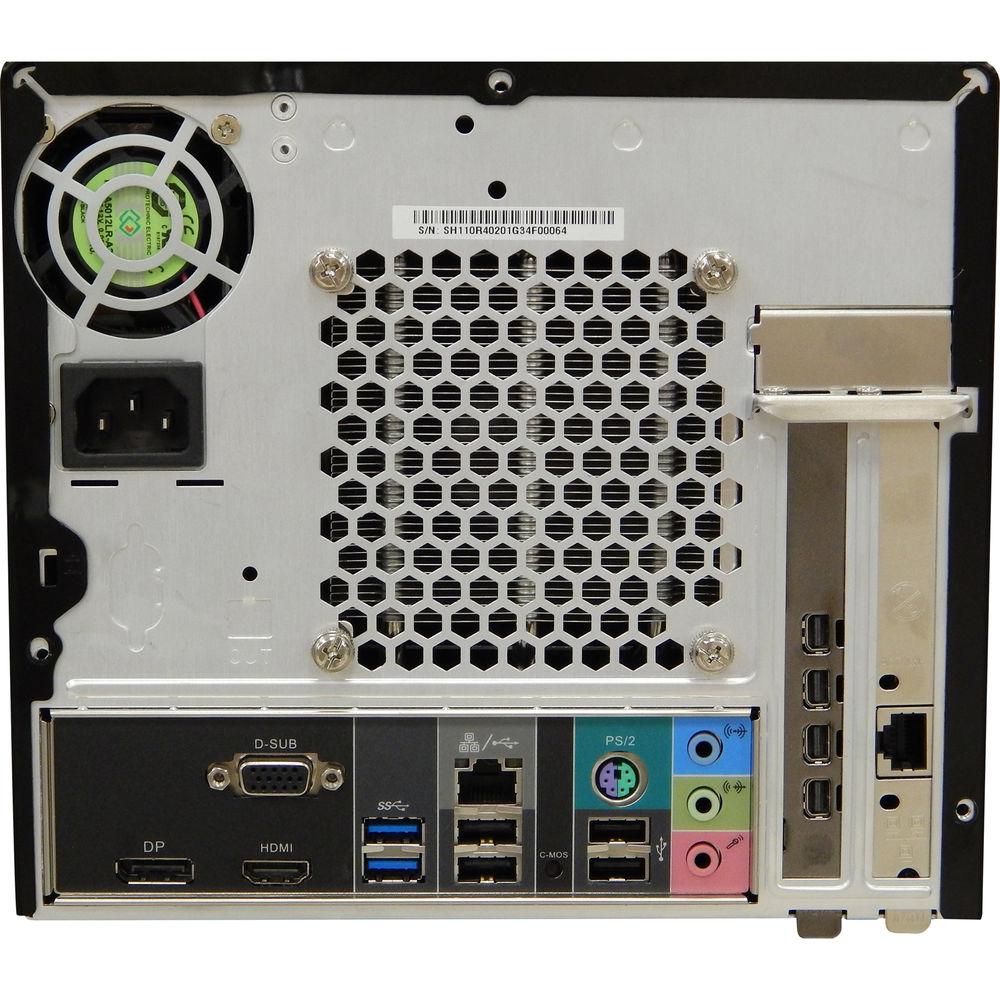

Linux Ubuntu | | CPU | Intel i7 processor | | Memory | 16 GB | | NIC Support | 2 x Gigabit Ethernet (RJ45) | | Video Storage | 3 x Panzilla MEGApix 48 MP cameras at 480 Mb/s | | Maximum Hard Drives | 1 x SSD + 2 x SATA HDD | | Storage | 16 TB installed | | Connectors | 4 x Mini Display port
5 x USB 2.0 port
2 x USB 3.0 port
2 x microphone jack
1 x headphone jack
1 x LAN port
1 x PS/2 port
1 x line-in jack
1 x line-out jack
1 x NIC port | | Resolution | 1080p HD | | Pre-Installed Software | DW Spectrum | | Browser/Remote Client | Cross Platform: Windows, Linux, and Mac | | Mobile Apps | iOS and Android | | Power | 300 W | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Operating Humidity | 20 to 90% RH | | Dimensions | 8.5 x 13.0 x 7.5" / 21.6 x 33.0 x 19.1 cm | | Weight | 14.6 lb / 6.6 kg |
