User Manual for Digital Watchdog Blackjack 16-Bay NAS Server Click to enlarge the picture
Contents of the user manual for the Digital Watchdog Blackjack 16-Bay NAS Server
- Product category: Network Attached Storage Drives Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Network Attached Storage Drives
 |
User manual for the Digital Watchdog Blackjack 16-Bay NAS Server contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|

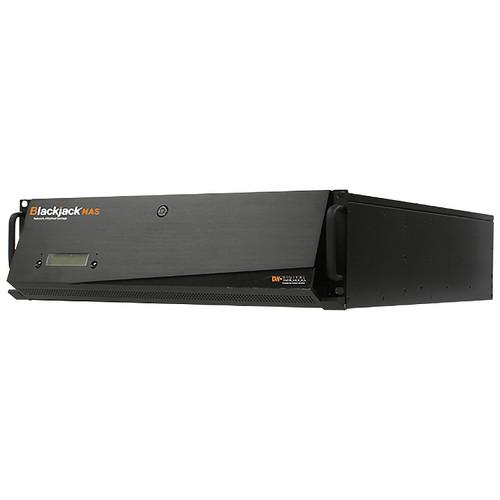

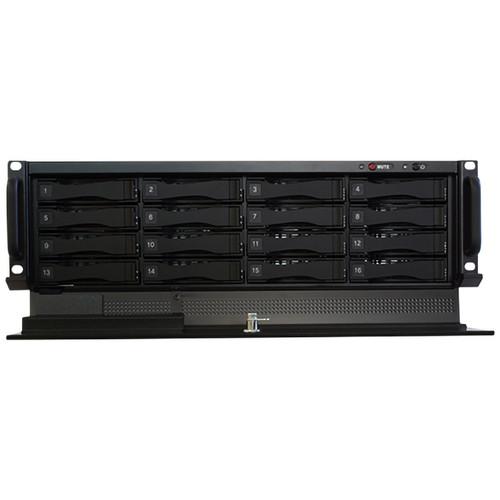

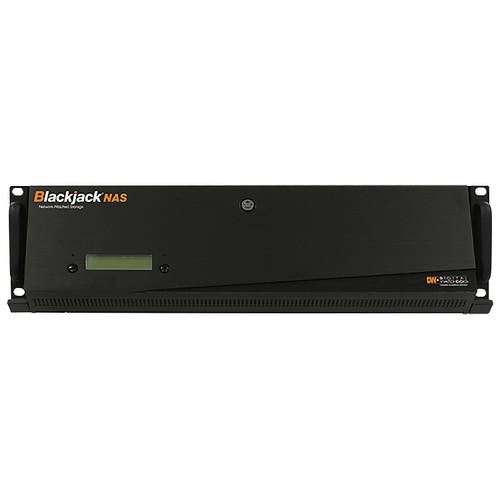

Product description Centralize file storage, sharing, and backup in your existing Blackjack system with the 3 RU 80TB Blackjack 16-Bay NAS Server from Digital Watchdog. Seamlessly integrated into the Spectrum IPVMS system, this recording backup solution allows for continuous archiving, instant search, and optimized data management. The Blackjack 16-bay rackmount NAS is designed to be implemented into a Blackjack E-Rack system with a total of up to 600 Mb/s throughput, the equivalent of up to 128 2.1 MP single-sensor IP cameras. It combines up to 16 hard drives into a mass storage solution that uses RAID 5 redundancy to protect your recorded video. - Add NAS station to a Blackjack E-Rack server with up to 128 cameras to quickly expand local storage and backup capacity at up to 600 Mb/s throughput
- RAID 5 for efficient storage with enhanced data security
- 80TB raw capacity; 70TB usable storage after RAID 5
- Enables adding and managing devices directly from the Spectrum IPVMS client software's user-friendly interface
- Seamless search via the Spectrum IPVMS client, including smart motion search, spyglass, and calendar search options
- Proprietary Linux embedded OS
In the Box Digital Watchdog Blackjack 16-Bay NAS Server (80TB, 3 RU) Network Cable 2 x Power Cables Rackmount Kit with Screws Front Door Lock Key HDD Screws Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog Blackjack 16-Bay NAS Server in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

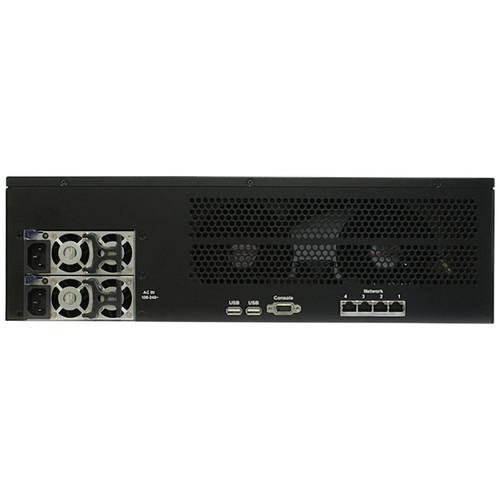

Technical parametersDigital Watchdog DW-BJ16NAS80TR Specs | | | Total Raw Capacity | 80 TB | | Initial RAID Configuration | RAID 5 | | | | Number of Bays | 16 x 3.5" | | Connections | 4 x RJ45 (Gigabit Ethernet) | | Form Factor | Rackmount (3 RU) | | RAID Modes | RAID 5 | | Hot-Swap Support | Yes | | | | Supported Protocols | HTTP
SMTP
SNMP v1
SNMP v2
SNMP v3
iSCSI | | iSCSI Support | Yes | | Max Volume Number | 4 | | Max Cameras Supported | 128 | | | | Installed Operating System | Linux | | Supported File Systems | NTFS | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 4 to 5.8 A | | PSU Wattage | 2 x 520 W (Supports Redundancy) | | | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Operating Humidity | 20 to 90% | | | | Status Monitoring | LCD Screen, LED Indicator | | Mounting Rails Included | Yes | | Dimensions | 17.4 x 5.2 x 23.4" / 44.2 x 13.2 x 59.4 cm | | Weight | 35.3 lb / 16.0 kg |
