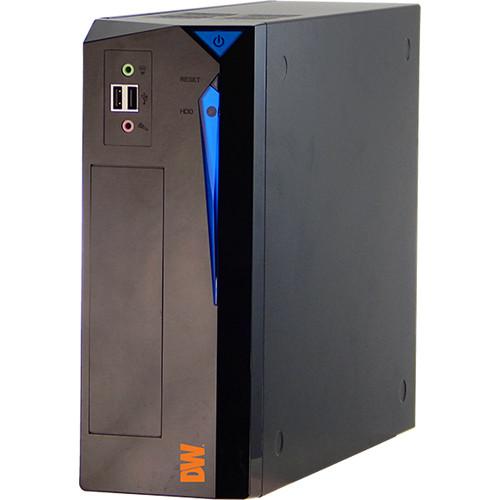

User Manual for Digital Watchdog Blackjack BOLT 16-Channel 2.1MP NVR with 2TB Click to enlarge the picture
Contents of the user manual for the Digital Watchdog Blackjack BOLT 16-Channel 2.1MP
- Product category: Network Video Recorders (NVRs) Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Network Video Recorders (NVRs)
 |
User manual for the Digital Watchdog Blackjack BOLT 16-Channel 2.1MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description Stream and record 2.1MP video with the Blackjack BOLT NVR from Digital Watchdog, at a frame rate of 30 fps and with a throughput of up to 80 Mb/s. A four-channel license is included, and additional licenses are available separately for connecting a total of up to 16 IP cameras. Equipped with two SATA ports supporting an HDD up to 8TB each, the NVR can be configured to have up to 16TB of internal storage (2TB pre-installed). External storage options include PCs via internet connection, network servers, and USB storage devices.
The Blackjack BOLT NVR is Linux based and is run by the pre-loaded Spectrum IPVMS software. It supports bidirectional audio and is equipped with PS/2 ports for connecting the included keyboard and mouse. Internet connectivity enables remote monitoring via PCs as well as from Android and iOS devices. - Compatible with most ONVIF-compliant IP cameras
- Ubuntu 64-bit Linux operating system
- Spectrum IPVMS software for setup, configuration, monitoring, and recording
- Flexible "Grid" user interface with unlimited layouts
- Seamless transition from live to recorded video
- Interactive timeline with built-in Smart, Thumbnail, and Calendar search
- One-time recording license charge, fully transferable between cameras and encoders
- No annual maintenance fees
- Simple enterprise scalability
UPC: 813379018855 In the Box Digital Watchdog Blackjack BOLT 16-Channel 2.1MP NVR with 2TB Keyboard and Mouse Recovery USB Power Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog Blackjack BOLT 16-Channel 2.1MP NVR with 2TB in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog Blackjack BOLT Specs | IP Cameras Supported | 16 | | Licenses | 4-channel license included; additional licenses available separately | | Form Factor | Slim desktop | | Operating System | Ubuntu (64-bit) | | CPU | Intel quad core N3150 processor | | Memory | 4 GB | | Compression | H.264 dual-streaming | | NIC Support | 2 x Gigabit Ethernet ports | | Other Ports | 2 x PS/2, keyboard and mouse
2 x USB 2.0 (front panel)

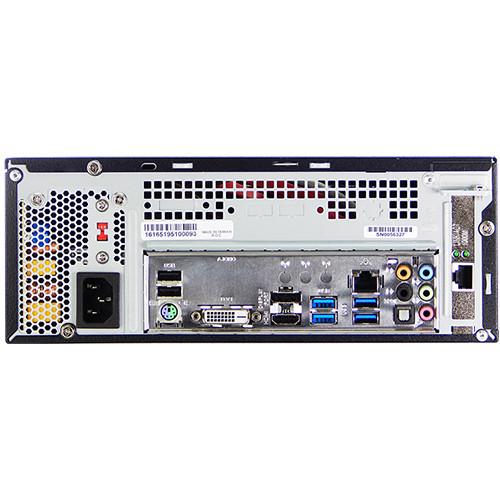

2 x USB 2.0 (rear panel)
2 x USB 3.0 (rear panel)
1 x HDMI (rear panel)

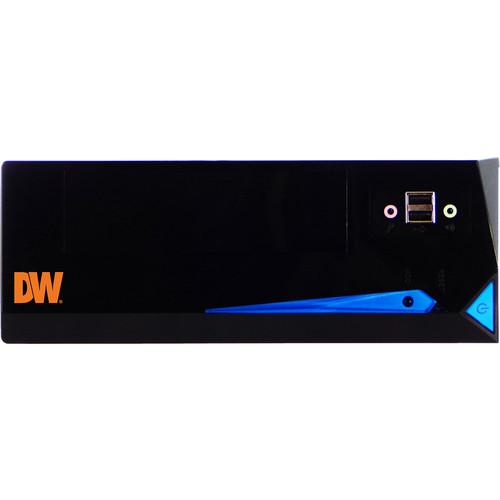

Microphone and headphone (front panel)
Microphone in, line in, line out (rear panel) | | Throughput | 80 Mb/s (max.) | | Storage | 2 x SATA HDD bays, up to 16 TB total
2 TB pre-installed | | Video | Outputs: HDMI, DVI, D-Sub
Resolution: HD 1080p | | VMS Software | Digital Watchdog Spectrum IPVMS (pre-loaded) | | Browser / Remote Client | Cross Platform: Windows, Linux, and Mac (unlimited) | | Remote Client OS | Windows, Ubuntu, Linux, and Mac | | Mobile Apps | iOS and Android | | Power | 200 W | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Operating Humidity | 20-90% RH | | Dimensions | 3.9 x 14.0 x 10.4" / 9.8 x 35.6 x 26.4 cm | | Weight | Not specified by manufacturer |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 79 owners. Add your rating and experience with the product.
