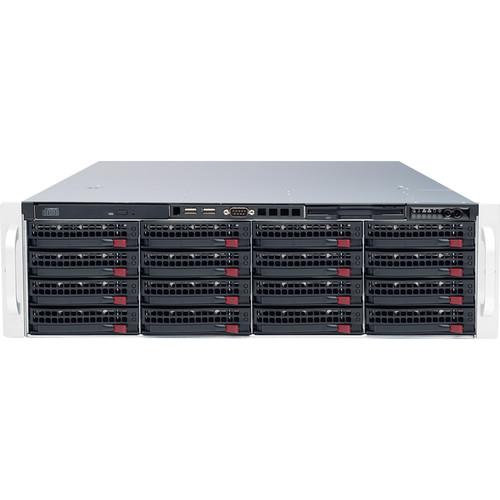

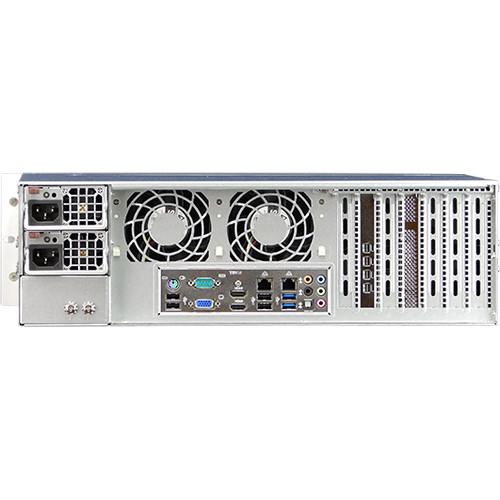

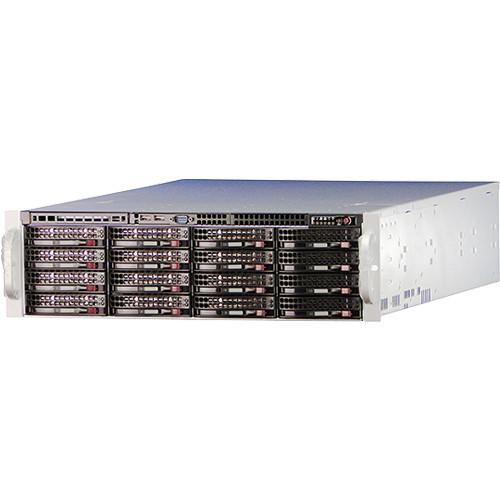

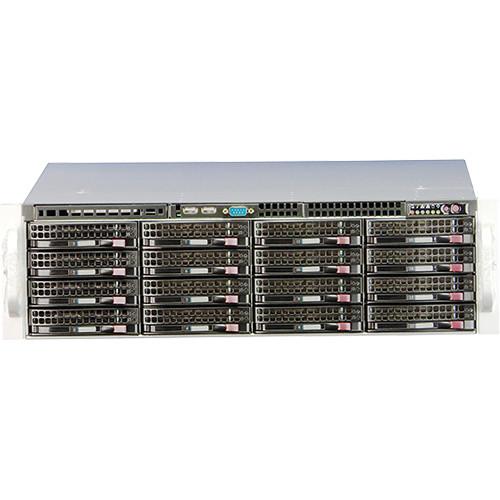

User Manual for Digital Watchdog Blackjack DW Spectrum 12-Bay E-Rack NVR Click to enlarge the picture
Contents of the user manual for the Digital Watchdog Blackjack DW Spectrum 12-Bay
- Product category: Network Video Recorders (NVRs) Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Network Video Recorders (NVRs)
 |
User manual for the Digital Watchdog Blackjack DW Spectrum 12-Bay contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description The 24TB Blackjack DW Spectrum 12-Bay E-Rack NVR from Digital Watchdog is powered by the DW Spectrum video management solution, this NVR e-rack provides scalability, bandwidth savings, and simplified system setup and management. The architecture of the e-rack is cross platform, supporting both Windows and Linux, offering high-quality performance for high-end and large scale enterprise installations.This e-rack is a Linux-based NVR powered by an Intel i7 3rd Generation multi-core processor and comes in a 2U case. With assurance features such as data redundancy RAID 5, redundant power supply, hot- swappable HDD bays, its OS installed in a separate SSD for faster boot up, dual gigabit network, and memory configuration support, this e-rack is fully customizable by the user. Each e-rack comes equipped and pre-installed with Digital Watchdog’s DW Spectrum IPVMS and 4 digital recording licenses. - General
-
- Cross-platform layout supporting Windows and Linux
- Advanced graphical system health monitoring
- Simple enterprise scalability
- Local client display
- Allows cameras to be added manually using RTSP URL
- Manual stream quality control
- Camera lists for optimal camera control
- Server auto login
- True automatic device discovery and display
- HD (1080p) screen recording
- Panic recording
- ONVIF-conformant
- Advanced events & actions rules
- Remote EC log access
- Email notifications with event playback link
- Hardware
-
- Data Redundancy with RAID 5
- Redundant power supply
- Hot-swappable HDD bay (recording data)
- Fastest system bootup with SSD (OS)
- Dual gigabit network
- Dual memory configuration
- Intel i7 (3rd gen) CPU
UPC: 813379016301 In the Box Digital Watchdog Blackjack DW Spectrum 12-Bay E-Rack NVR (Linux, 24TB After RAID 5) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog Blackjack DW Spectrum 12-Bay E-Rack NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog DW-BJER2U28T-LX Specs | Maximum Number of Cameras | 128 | | Recording Performance | 600 Mb/s | | CPU | i7 (Intel 3rd Generation) | | Memory | 8 GB | | Network | 2 x 1 Gb/s | | Video | ATI | | Ports | VGA / 2 x HDMI / 4 x DP | | HDD | 60 GB SSD (OS)
24 TB usable after RAID 5 | | OS | Linux, 64-bit | | RAID | RAID 5 | | External Ports | 1 x Keyboard/mouse, 4 x USB 2.0, 2 x USB 3.0, 1 x RS-232, HD audio in & out | | Power | 600 W | | Operating Temperature | 50 to 95°F (10 to 35°C) | | Dimensions | 25.5 x 17.2 x 3.5" (64.7 x 43.7 x 8.9 cm) |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 19 owners. Add your rating and experience with the product.
