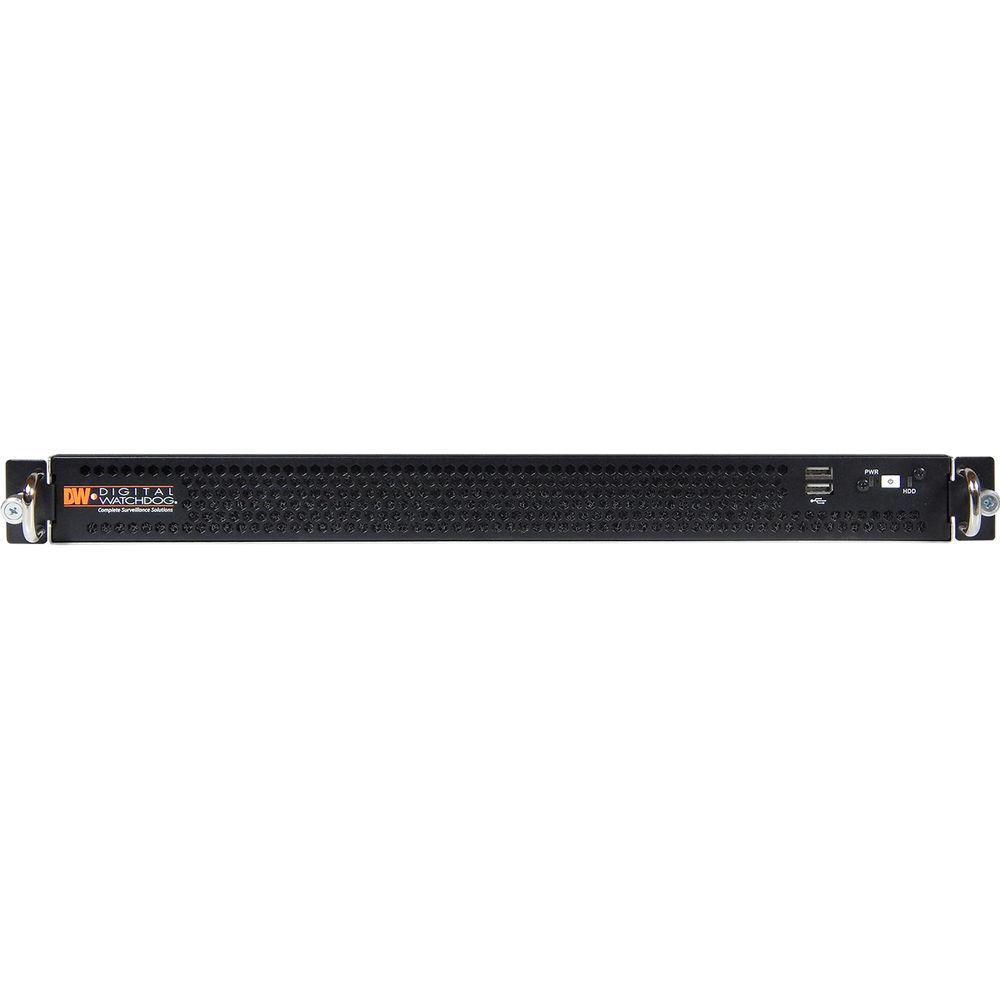

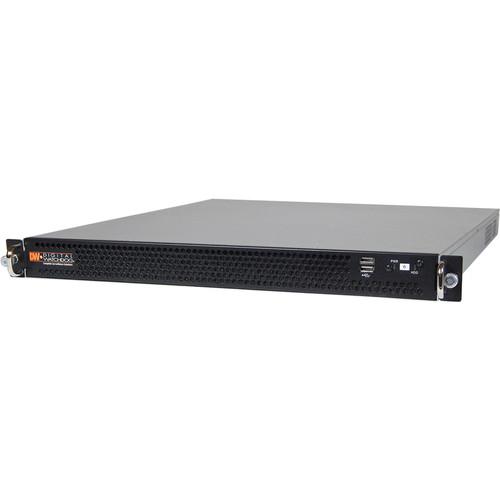

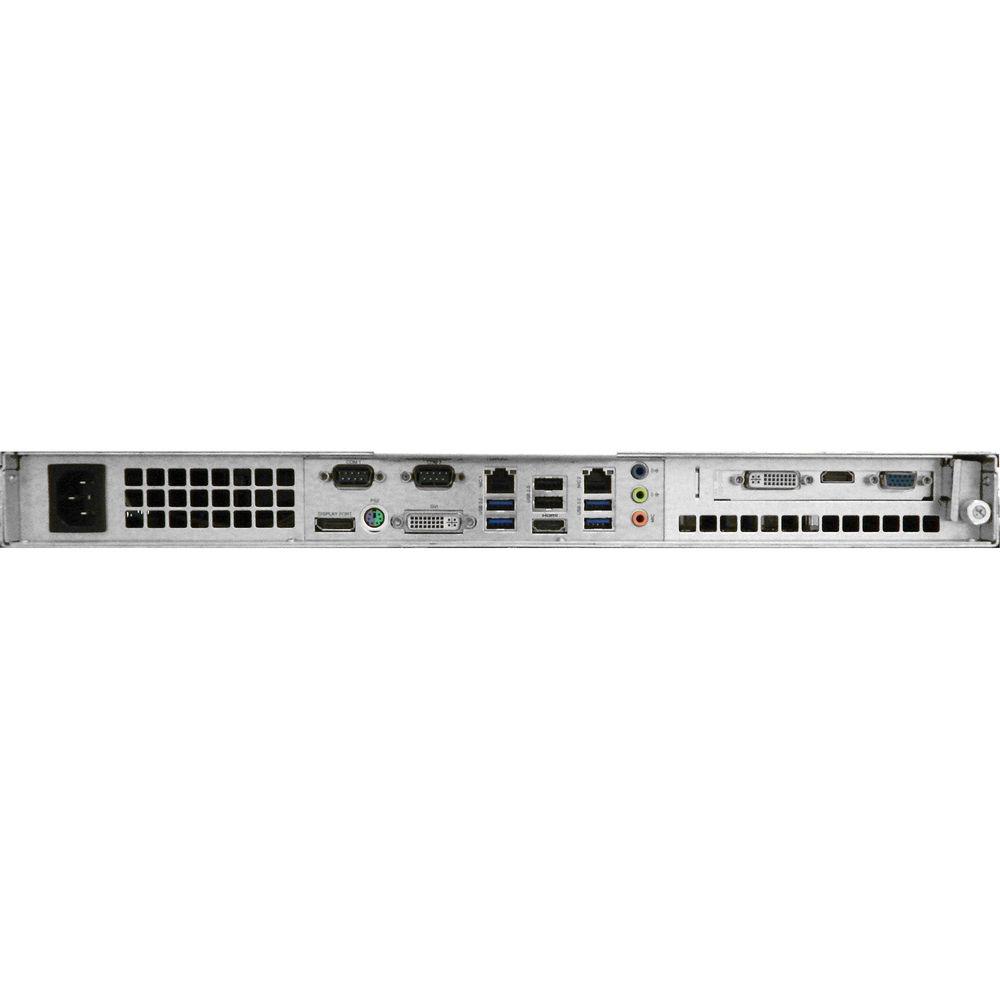

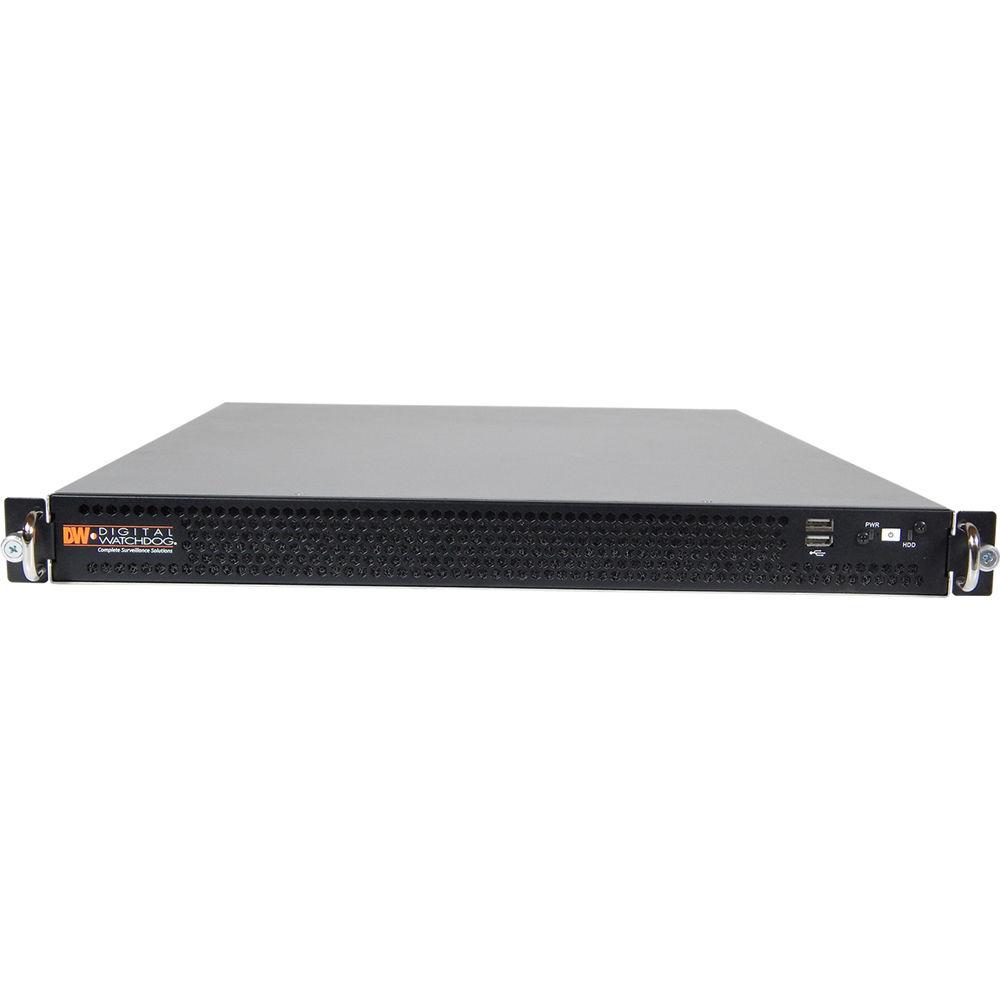

User Manual for Digital Watchdog Blackjack P-Rack DW-BJP1U 4-Channel 2.1MP NVR with 6TB HDD Click to enlarge the picture
Contents of the user manual for the Digital Watchdog Blackjack P-Rack DW-BJP1U 4-Channel
- Product category: Network Video Recorders (NVRs) Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Network Video Recorders (NVRs)
 |
User manual for the Digital Watchdog Blackjack P-Rack DW-BJP1U 4-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description The 6TB Blackjack P-Rack DW-BJP1U 4-Channel 2.1MP NVR from Digital Watchdog is an IP system capable of recording and managing the feeds of up to 64 2.1MP 1080p IP cameras at up to 30 fps. A four-channel license is included and additional licenses are available separately. This Blackjack P-Rack runs on Windows OS and uses the IP Video Management Software (IPVMS), which delivers automatic camera detection, fully customizable layouts, drag & drop camera management & recording, e-mapping, and advanced motion masking & sensitivity settings. The system is equipped with an Intel i5 processor and features 8GB of RAM. Cross-platform connectivity for Windows and Mac client software enables you to monitor your network video recording system from almost anywhere. - Supports all ONVIF-conformant IP cameras
- Records up to 64 IP cameras with total throughput up to 360 Mb/s (four-channel license included)
- TrueHD, VGA, and DVI local monitoring output ports
- Spectrum IPVMS software for setup, configuration, monitoring, and recording
- Recording license transferable between cameras and encoders
- No annual maintenance fees
UPC: 813379016943 In the Box Digital Watchdog Blackjack P-Rack DW-BJP1U 4-Channel 2.1MP NVR with 6TB HDD (Windows) Mouse Keyboard Rail Kit Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog Blackjack P-Rack DW-BJP1U 4-Channel 2.1MP NVR with 6TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog BlackJack Specs | Number of Supported Cameras | 64 | | Licenses Included | 4-channel license | | Recording Resolution | 2.1 MP (1920 x 1080) | | Maximum Throughput | 360 Mb/s | | Hard Disk Capacity | 3 x SATA bays
30 TB total maximum
6 TB HDD preinstalled | | Operating System | Windows 10 IoT on 150 GB SSD | | CPU | Intel i5 | | RAM | 8 GB | | Video Card | GeForce 210 512 MB | | Monitor Out | TrueHD/VGA/DVI | | Output Resolution | Up to 1920 x 1080 | | VMS Software | Spectrum IPVMS | | Remote Client OS | Windows, Linux, and Mac | | Mobile OS Support | iOS and Android | | Network Interface | 2 x RJ45 Gigabit Ethernet ports | | Power Consumption | 300 W | | Operating Temperature & Humidity | 41 to 104°F / 5 to 40°C
20 - 90% RH | | Form Factor | Rackmount 1 RU | | Dimensions | 17.25 x 26.5 x 1.75" / 43.8 x 67.3 x 4.4 cm | | Weight | Not specified by manufacturer |
