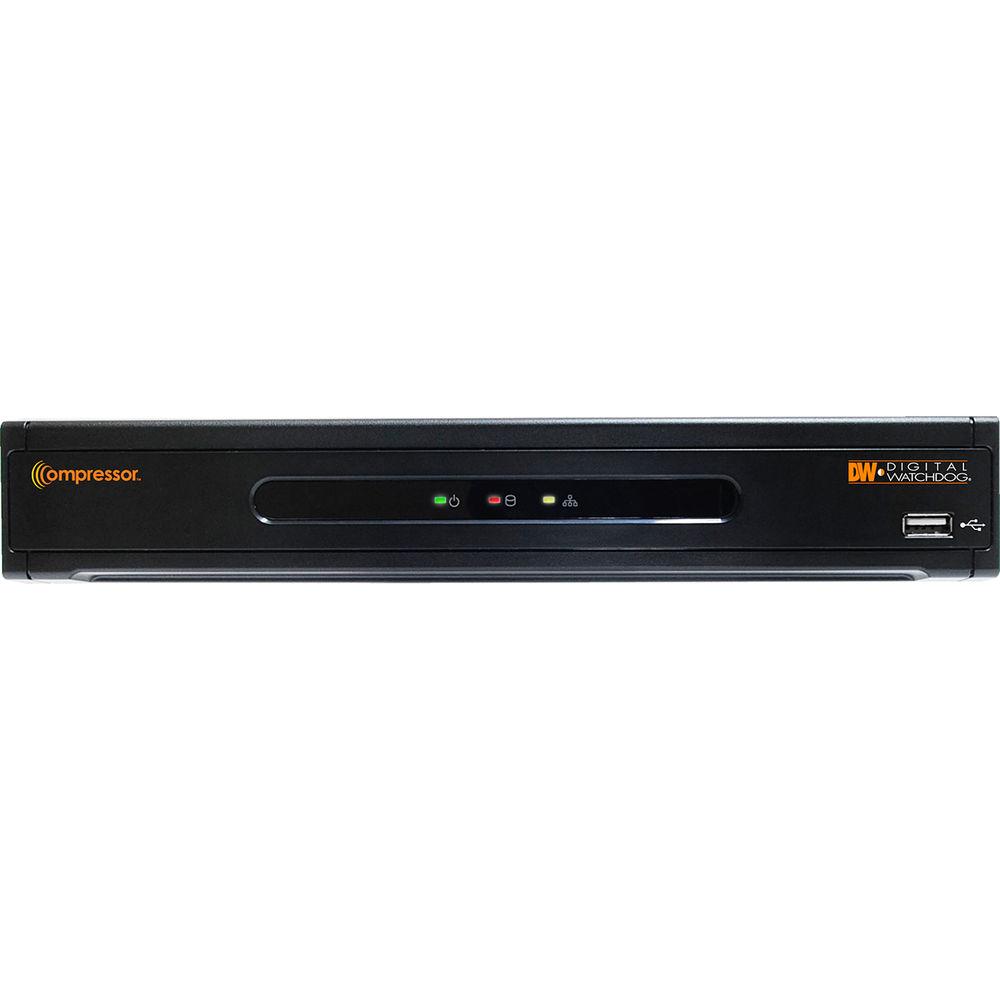

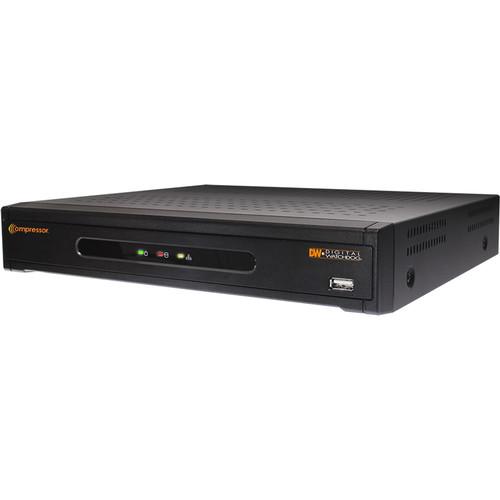

User Manual for Digital Watchdog Compressor 16-Channel Universal HD Analog to IP Signal Encoder Click to enlarge the picture
Contents of the user manual for the Digital Watchdog Compressor 16-Channel Universal HD
- Product category: Video Encoders & Decoders Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Video Encoders & Decoders
 |
User manual for the Digital Watchdog Compressor 16-Channel Universal HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description Convert video from up to 16 analog cameras to IP video streams with the Compressor 16-Channel Universal HD Analog to IP Signal Encoder from Digital Watchdog. This encoder delivers up to 3MP resolution output at 240 fps or 1080p output at 480 fps in real time. AHD, HD-TVI, HD-CVI, and or standard analog signals to 960H are supported. UTC (Up-the-Coax) allows for OSD control of a connected camera. HDMI and VGA video outputs allow HD video to be sent to an external monitor (available separately). Additionally, a spot monitor output sends out D1 resolution video.
This device is ONVIF-compliant for profile S, enabling interoperability with a wide range of cameras. A USB mouse is included for system operation. - Supports AHD, HD-TVI, HD-CVI, and standard analog signals up to 960H
- Cost effective solution for systems with analog and IP cameras
- Integrates into existing analog applications
- H.264 video compression with dual streaming
- Frame rate and bandwidth control
- HDMI and VGA video outputs
- Spot monitor video output
- 4 alarm inputs and 1 alarm output
- OSD control via UTC (Up-the-Coax)
- PTZ control via RS-485 and UTC
- DW Spectrum IPVMS management software
- Compatible with iOS, Android, and Internet Explorer 9 or higher
- Rack-mountable with DW-VF19RE (available separately)
- CE, FCC, and UL certified
- Key Features
-
- Motion detection via DW Spectrum IPVMS
- Alarm management
- Trigger alarm output and email notifications
- Password protection
UPC: 813379019067 In the Box Digital Watchdog Compressor 16-Channel Universal HD Analog to IP Signal Encoder USB Mouse 12 VDC Adapter and Power Cable 4 x Screws Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog Compressor 16-Channel Universal HD Analog to IP Signal Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

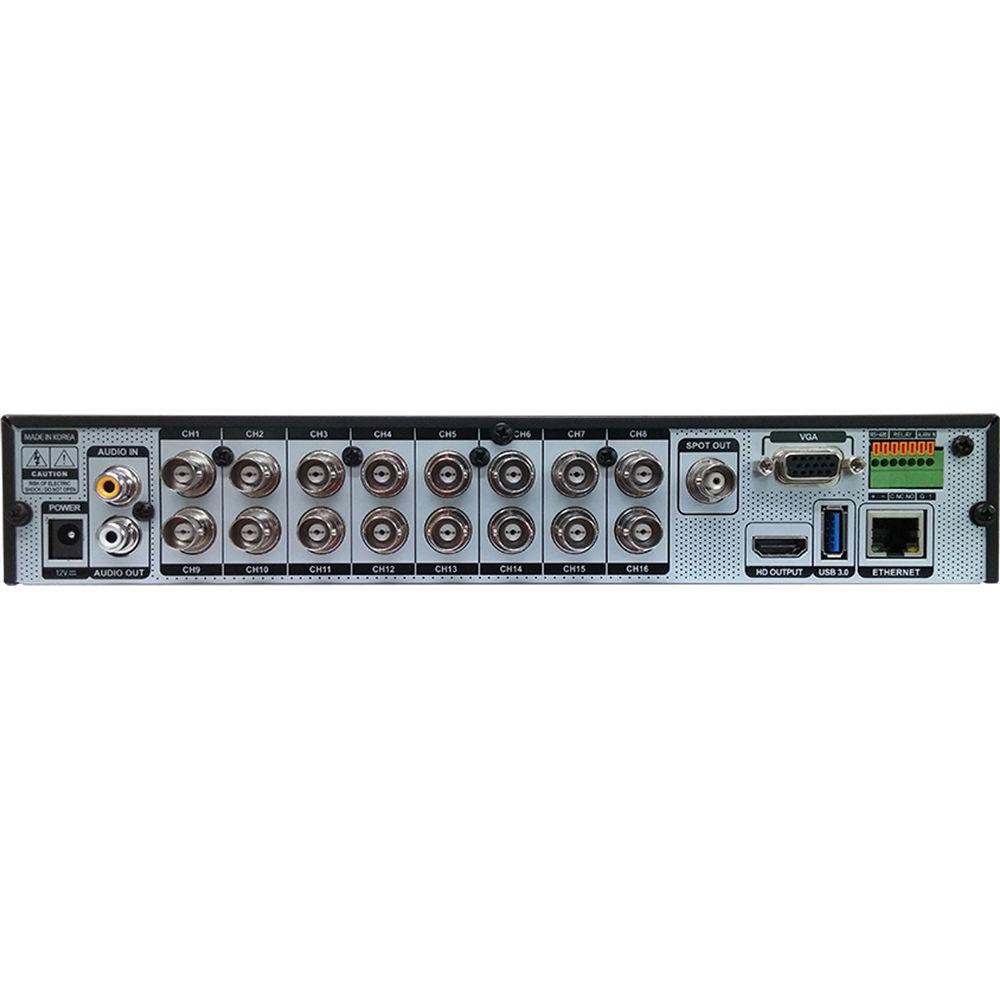

Technical parametersDigital Watchdog DW-CPUHD16 Specs | Video Inputs | 16
CVBS, 1.0 V p-p with 75 Ohm BNC connector | | Signal Type | AHD, HD-TVI, HD-CVI, and analog up to 960H | | Video Output | 1 x HDMI
1 x VGA
1 x spot out | | Video Output Resolution | 4K UHD / 3840 x 2160 maximum
D1 resolution spot out | | Video Encoding | H.264 with dual streaming | | Resolution | 1st Stream: 1920 x 1080, 3 MP Maximum
2nd Stream: 480 x 240, 640 x 480 Maximum | | Resolutions and Frame Rates | 1080p at 480 fps maximum
3 MP at 240 fps maximum
3 MP (HD-TVI) at 15 fps | | Audio I/O | 1/1 | | Audio Codec | PCM | | Alarm I/O | 4/1 | | USB Ports | 2 | | RS-485 | 1 PTZ support for Pelco D/P protocols | | UTC | PTZ control via coax (AHD, HD-TVI, HD-CVI)
OSD control via UTC | | Network Connection | 1 Gb Ethernet | | Transmission Speed | 1080p at 480 fps maximum
3 MP at 240 fps maximum
3 MP (HD-TVI) at 15 fps | | Bandwidth | 130 Mb/s maximum | | Network Protocols | UPnP, TCP, HTTP, DHCP, RTSP, IPv4, DNS | | ONVIF Conformance | Profile S | | Supported Browsers | Internet Explorer 9 or higher for live view and remote setup | | Video Management Software | DW Spectrum IPVMS (licenses available separately) | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Operating Humidity | Less than 80% (non-condensing) | | Power Requirements | 12 VDC | | Power Consumption | 60 W, 5 A | | Certifications | CE, FCC, and UL | | Dimensions | 11.02 x 9.65 x 1.89" / 280 x 245 x 48 mm | | Weight | 5.56 lb / 2.52 kg | | | | Package Weight | 5.375 lb | | Box Dimensions (LxWxH) | 13.25 x 13.1 x 4.95" |
