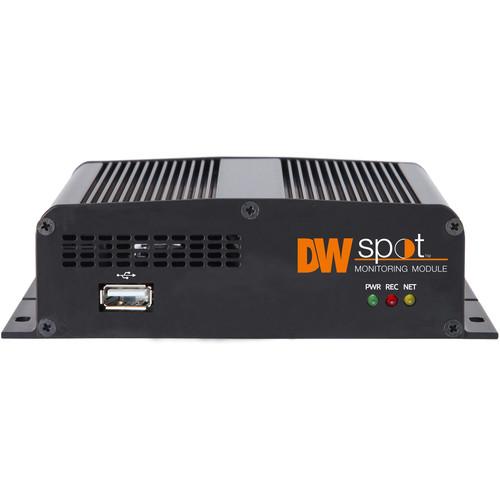

User Manual for Digital Watchdog DW-HDSPOTMOD16 16-Channel DW Spot Monitoring Module Click to enlarge the picture
Contents of the user manual for the Digital Watchdog DW-HDSPOTMOD16 16-Channel DW Spot
- Product category: Recording Accessories Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Recording Accessories
|
User manual for the Digital Watchdog DW-HDSPOTMOD16 16-Channel DW Spot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description The DW-HDSPOTMOD16 from Digital Watchdog is a monitoring module that allows you to directly view up to 16 cameras simultaneously without connecting them to a PC or server. This device automatically searches the network and identifies ONVIF-compliant IP cameras, VMAX A1 DVRs, or VMAX IP Plus NVRs.
HD video can be sent to an external monitor (available separately) via HDMI and VGA outputs. H.264 video compression maximizes bandwidth efficiency without compromising video quality. Remote management can be done by CMS, a mobile application, and Internet Explorer. A USB mouse is included for system operation. - Suitable for providing public views in retail and office environments, along with providing views for security personnel
- HDMI and VGA video outputs
- Display frame rate up to 480 fps
- Automatic network search and device registration
- Identifies an unlimited number of ONVIF-compliant IP cameras, Universal HD over Coax VMAX A1 DVRs (via RTSP), or VMAX IP Plus NVRs on your network
- Supports IP cameras up to 5MP
- Drag and drop camera selection from DVRs and NVRs
- Live monitoring of 16 cameras simultaneously, single camera view, and 16-camera full screen sequencing
- Support for 16 AHD, HD-TVI, HD-CVI, and all analog signals to 960H, up to 1080p resolution
- Advanced functions include firmware upgrade by USB and CMS, import & export settings, warning alarm for system overheating, and digital zoom
- Remote management via CMS, mobile application, and Internet Explorer
- System recovery after power failure via auto-reboot and log file system
- Includes USB mouse for system operation
- Hook-and-loop fastener for mounting to the back of a monitor
UPC: 813379011559 In the Box Digital Watchdog DW-HDSPOTMOD16 16-Channel DW Spot Monitoring Module USB Mouse 12 VDC Power Cable Hook-and-Loop Fastener Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog DW-HDSPOTMOD16 16-Channel DW Spot Monitoring Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog DW-HDSPOTMOD16 Specs | Operating System | Embedded Linux | | IP Camera Input | Register up to 16 cameras (ONVIF protocol) | | Display | Speed: Up to 480 fps
Maximum Throughput: 80 Mb/s | | Screen Mode | Single channel, 16-channel view mode, sequence | | Video In | IP cameras (up to 5 MP, 2592 x 1944 resolution), Universal HD over Coax VMAX A1 DVRs or VMAX IP Plus NVRs | | Video Out | Monitor: HDMI (True HD) or VGA
Resolutions: 800 x 600, 1024 x 768, 1280 x 1024, 1920 x 1080 | | Video Compression | H.264 | | Protocols | Fixed IP, DHCP, DDNS, and RTSP | | USB Ports | 2 | | LAN | 1 x 10/100/1000M RJ45 Ethernet | | Network Functions | Live monitoring, time synchronization by NTP server | | Remote Management | CMS and mobile application software
System settings via Internet Explorer | | System Recovery Management Solution | Auto-reboot and log file system | | Advanced Functions | Firmware upgrade by USB and CMS, import & export settings, warning alarm for system overheating, digital zoom | | USB Mouse Control | For system operation | | Power | 12 VDC | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Operating Humidity | 20-90% RH, non-condensing | | Dimensions | 5.47 x 4.84 x 1.25" / 139 x 123 x 32 mm | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 7.5 x 7.0 x 4.0" |
