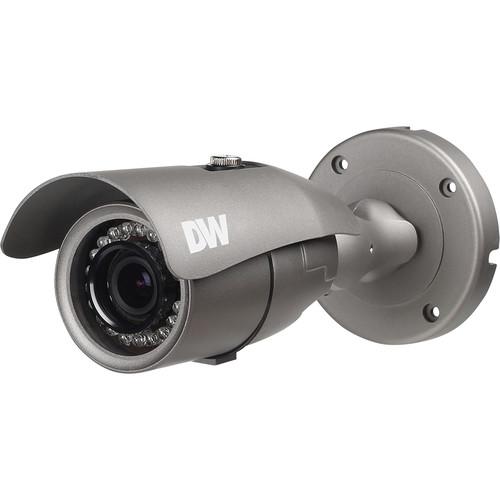

User Manual for Digital Watchdog DWC-B6263WTIR 2.1MP Outdoor Universal HD Analog Bullet Camera with Night Vision & 2.8-12 Lens Click to enlarge the picture
Contents of the user manual for the Digital Watchdog DWC-B6263WTIR 2.1MP Outdoor Universal
- Product category: Wired Analog & HD Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired Analog & HD Cameras
|
User manual for the Digital Watchdog DWC-B6263WTIR 2.1MP Outdoor Universal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description The DWC-B6263WTIR 2.1MP Outdoor Universal HD Analog Bullet Camera with Night Vision from Digital Watchdog has a 1/3" progressive scan CMOS sensor for a resolution up to 1920 x 1080 at 30 fps. The 2.8-12mm varifocal lens features Smart IR LEDs that provide up to 100' of night vision. Star-Light technology enables the camera to record in low-light conditions without relying on its IR emitters. 100 dB of true wide dynamic range ensures that an entire scene is captured clearly in challenging lighting conditions.
The universal HD analog camera transmits AHD, HD-TVI, HD-CVI, and standard analog signals up to 960H resolution. UTC (Up-the-Coax) connection allows for OSD control of the camera. An icon-based OSD menu with a built-in joystick simplifies navigating the camera's settings. The IP66-rated aluminum enclosure makes the camera suitable for outdoor use. - True wide dynamic range, backlight compensation, 3D-DNR, defog image compensation, dynamic range compressor, and highlight masking exposure help improve image quality and visibility
- Universal HD AHD, HD-CVI, HD-TVI, and analog outputs as high as 960H
- Smart IR delivers up to 100' of night vision
- OSD control via UTC (Up-the-Coax)
- Programmable privacy zones enable you to select up to 16 areas you don't want recorded
- Up to 4 zones of motion detection
- IP66-rated aluminum enclosure that is suitable for outdoor use
UPC: 813379019739 In the Box Digital Watchdog DWC-B6263WTIR 2.1MP Outdoor Universal HD Analog Bullet Camera with Night Vision & 2.8-12 Lens Torx Wrench DC Plug Cable Test Video Cable Template Sheet 4 x Screws & Plastic Anchors Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog DWC-B6263WTIR 2.1MP Outdoor Universal HD Analog Bullet Camera with Night Vision & 2.8-12 Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog DWC-B6263WTIR Specs | | | Sensor | 2.1 MP 1.3" CMOS | | Effective Pixels (H x V) | 1944 x 1092 | | Scanning System | Progressive | | Frequency | 60/50 Hz | | Video Output | HD-analog, HD-TVI, HD-CVI 2.1 MP 1080p
CVBS analog up to 960H | | Synchronization | Internal | | Resolution | 1920 x 1080 | | Minimum Illumination | Color: 0.03 lux at f/1.4 (30 IRE)
B&W: 0 lux at f/1.4 (30 IRE) | | S/N Ratio | 55 dB | | Signal Technology | Universal HD over coax technology with HD-analog, HD-TVI, HD-CVI, and all analog to 960H signal support | | Alarm Output | 1 alarm output | | | | Focal Length | 2.8-12mm | | Lens Type | Varifocal P-iris lens | | IR Range | 100' (30.5 m) | | | | Shutter Speed | 1/30 to 1/30,000 | | Backlight | Off, on | | Star-Light | Sense-Up: Off, x2 to x32 | | Wide Dynamic Range | 100 dB, off/on | | Digital Noise Reduction (DNR) | 3D-DNR: Off, Low, Middle, High | | White Balance | Auto, auto-ex, preset, manual | | Mechanical IR Cut Filter | Yes | | Day and Night | Day, night, auto | | Flip / Mirror | Yes | | AGC (Automatic Gain Control) | 60 dB max | | Motion Detection | 4 zones | | Programmable Privacy Zones | 16 | | Sharpness | 0 to 10 | | Gamma | 0.45 to 0.75 | | Pelco System Integration | Pelco D, Pelco C | | RS-485 | Built-in | | UTP | Built-in | | | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Operating Humidity | Less than 90% (non-condensing) | | IP Rating | IP66 | | Tamper Resistance | Yes | | Certifications | FCC, CE, ROHS | | Power Requirements | 12 VDC / 24 VAC | | Power Consumption | 12 VDC: 3.0 W (LED off), 4.44 W (LED on)
24 VAC: 2.7 W (LED off), 4.3 W (LED on) | | Construction Material | Aluminum | | Dimensions | 8.84 x 3.81" (224.5 x 96.7 mm) | | Weight | 1.65 lb (748.4 g) | | | | Package Weight | 2.185 lb | | Box Dimensions (LxWxH) | 12.4 x 5.45 x 5.05" |
