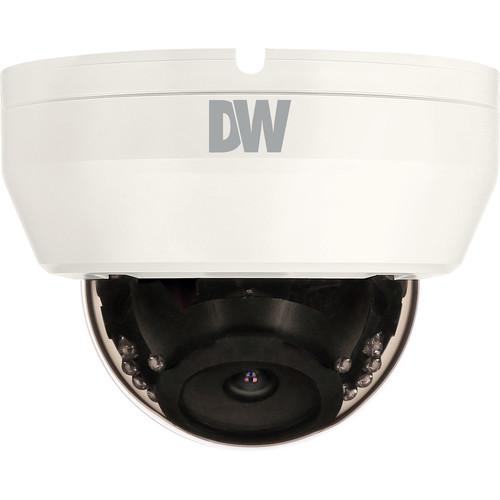

User Manual for Digital Watchdog DWC-D3263TIR 2.1MP Universal HD Analog Dome Camera with 2.8-12mm Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Digital Watchdog DWC-D3263TIR 2.1MP Universal HD
- Product category: Wired Analog & HD Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired Analog & HD Cameras
|
User manual for the Digital Watchdog DWC-D3263TIR 2.1MP Universal HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description The indoor DWC-D3263TIR 2.1MP Universal HD Analog Dome Camera with 2.8-12mm Lens & Night Vision from Digital Watchdog has a 2.1MP 1/2.7" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at 30 fps. It's equipped with a 2.8-12mm varifocal lens. Smart IR LEDs deliver up to 100' of night vision and STAR-LIGHT technology enables the camera to record in low-light conditions.
This Universal HD analog camera sends AHD, HD-TVI, HD-CVI, and all analog signals to 960H. UTC (Up-the-Coax) technology allows for OSD control of the camera.
Note: This device is compatible with Digital Watchdog's VMAX A1 DVRs, which are available separately. - Compatible with Digital Watchdog's VMAX A1 DVRs, which are available separately
- Universal HD analog output
- OSD control via UTC (Up-the-Coax)
- Digital wide dynamic range, backlight compensation, 3D-DNR, defog extreme weather image compensation, and highlight masking exposure help improve image quality and visibility
- Mechanical IR cut filter enables true day and night functionality
- 100' of Smart IR with intelligent camera sync
- Programmable privacy zones enable you to select up to 16 areas you don't want recorded
UPC: 813379019760 In the Box Digital Watchdog DWC-D3263TIR 2.1MP Universal HD Analog Dome Camera with 2.8-12mm Lens & Night Vision DC Plug Test Video Cable Template Sheet 2 x Screws & Plastic Anchors Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog DWC-D3263TIR 2.1MP Universal HD Analog Dome Camera with 2.8-12mm Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog DWC-D3263TIR Specs | | | Sensor | 2.1 MP 1/2.7" CMOS sensor | | Active Pixels | 1920 x 1080 | | Scanning System | Progressive | | Frequency | 60/50 Hz | | Video Output | HD-analog, HD-TVI, HD-CVI 2.1 MP 1080p
CVBS analog up to 960H | | Synchronization | Internal | | Resolution | 1920 x 1080 at 30 fps | | Minimum Illumination | Color: 0.2 lux at f/1.4, 30 IRE
B&W: 0 lux at f/1.4, 30 IRE | | S/N Ratio | 55 dB | | Signal Technology | Universal HD over Coax technology with HD-analog, HD-TVI, HD-CVI, and all analog to 960H signal support | | | | Focal Length | 2.8-12mm | | Lens Type | Varifocal P-iris lens | | Smart IR | Yes | | IR Range | 100' / 30.5 m | | | | Shutter Speed | 1/50,000 to 1/30 seconds | | Backlight | Off/on | | Star-Light | Sense-Up: Off, x2 to x30 | | D-WDR | Yes | | 3D-DNR | Off, low, middle, high | | White Balance | Auto, auto-ex, preset, manual | | Day and Night | Day, night, auto | | Mechanical IR Cut Filter | Yes | | Flip/Mirror | Yes | | Automatic Gain Control | Max 50 dB | | Motion Detection | Yes | | Programmable Privacy Zones | 16 | | Sharpness | 0 to 10 | | Gamma | 0.45 to 0.75 | | | | Power Requirements | 12 VDC | | Power Consumption | LED Off: 1.86 W
LED On: 3.6 W | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Operating Humidity | Less than 90%, non-condensing | | Certifications | FCC, CE, RoHS | | Material of Construction | Plastic | | Dimensions | 4.72 x 3.52" / 120 x 89.4 mm | | Weight | 0.5 lb / 226.8 g | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 7.75 x 7.0 x 5.5" |
