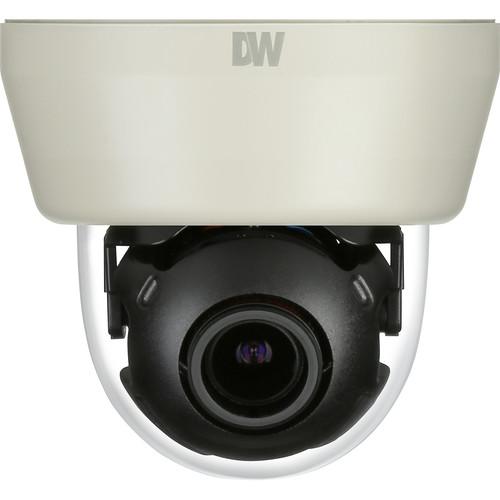

User Manual for Digital Watchdog DWC-D4283WD 2.1MP Universal HD Analog Dome Camera with 2.8-12mm Lens Click to enlarge the picture
Contents of the user manual for the Digital Watchdog DWC-D4283WD 2.1MP Universal HD
- Product category: Wired Analog & HD Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired Analog & HD Cameras
|
User manual for the Digital Watchdog DWC-D4283WD 2.1MP Universal HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description The indoor DWC-D4283WD 2.1MP Universal HD Analog Dome Camera with 2.8-12mm Lens from Digital Watchdog has a 2.1MP 1/3" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at 30 fps. Its equipped with a 2.8-12mm motorized varifocal lens. STAR-LIGHT technology enables the camera to record in low-light conditions. Audio recording is possible thanks to a built-in microphone.
This Universal HD analog camera sends AHD, HD-TVI, HD-CVI, and all analog signals to 960H. UTC (Up-the-Coax) technology allows for OSD control of the camera. An icon-based OSD menu with a built-in joystick simplifies navigating the camera's settings.
Note: This device is compatible with Digital Watchdog's VMAX A1 DVRs, which are available separately. - Compatible with Digital Watchdog's VMAX A1 DVRs, which are available separately
- Universal HD analog output
- OSD control via UTC (Up-the-Coax)
- True wide dynamic range, backlight compensation, 3D-DNR, defog extreme weather image compensation, dynamic range compressor, and highlight masking exposure help improve image quality and visibility
- Programmable privacy zones enable you to select up to 16 areas you don't want recorded
- Auto sensing 24 VAC / 12 VDC with line lock
- Snapit easy installation housing
UPC: 813379019821 In the Box Digital Watchdog DWC-D4283WD 2.1MP Universal HD Analog Dome Camera with 2.8-12mm Lens DC Plug Cable Test Video Cable Template Sheet 2 x Screws & Plastic Anchors Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog DWC-D4283WD 2.1MP Universal HD Analog Dome Camera with 2.8-12mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog DWC-D4283WD Specs | | | Sensor | 2.1 MP 1/3" CMOS sensor | | Active Pixels | 1944 x 1092 | | Scanning System | Progressive scan | | Frequency | 60/50 Hz | | Signal Technology | Universal HD over Coax technology with HD-analog, HD-TVI, HD-CVI, and all analog to 960H signal support | | Synchronization | Internal | | Resolution | 1920 x 1080 at 30 fps | | Minimum Illumination | Color: 0.03 lux at f/1.4, 30 IRE | | S/N Ratio | 55 dB | | Video Output | HD-analog, HD-TVI, HD-CVI 2.1 MP 1080p
CVBS analog up to 960H | | Alarm Output | 1 alarm output | | | | Built-In Microphone | Yes | | Sensitivity | -38 to ±2 dB | | Frequency Response | 50 Hz to 10 kHz | | | | Focal Length | 2.8-12mm | | Lens Type | Motorized zoom auto-focus P-Iris lens | | | | Shutter Speed | 1/30,000 to 1/3 seconds | | Backlight | Off/on | | Star-Light | Sense-Up: Off, x2 to x32 | | Wide Dynamic Range | 100 dB, off/on | | 3D-DNR | Off, low, middle, high | | White Balance | Auto, auto-ex, preset, manual | | Day and Night | Day, night, auto | | Flip/Mirror | Yes | | Automatic Gain Control | Max 60 dB | | Motion Detection | Yes | | Programmable Privacy Zones | 16 | | Sharpness | 0 to 10 | | Gamma | 0.45 to 0.75 | | RS-485 | Built-in | | UTP | Built-in | | Pelco System Integration | Pelco D, Pelco C | | Digital Zoom | 1 to 16x | | | | Power Requirements | 12 VDC / 24 VAC | | Power Consumption | 12 VDC: 3 W
24 VAC: 2.3 W | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Operating Humidity | Less than 90%, non-condensing | | Certifications | FCC, CE, RoHS | | Material of Construction | Plastic | | Dimensions | 4.25 x 3.81" / 108 x 96.8 mm | | Weight | 0.53 lb / 240 g | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 7.0 x 6.0 x 6.0" |
