User Manual for Digital Watchdog DWC-D4283WTIR 2.1MP Universal HD Analog Dome Camera with Night Vision & 2.8-12mm Lens Click to enlarge the picture
Contents of the user manual for the Digital Watchdog DWC-D4283WTIR 2.1MP Universal HD
- Product category: Wired Analog & HD Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired Analog & HD Cameras
|
User manual for the Digital Watchdog DWC-D4283WTIR 2.1MP Universal HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|

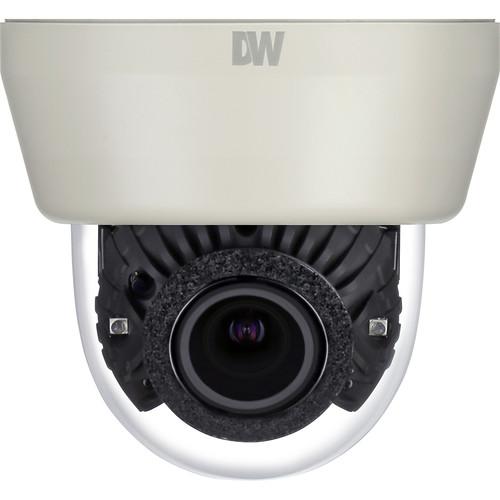

Product description The indoor DWC-D4283WTIR 2.1MP Universal HD Analog Dome Camera from Digital Watchdog has a 2.1MP 1/3" progressive scan CMOS sensor to transmit 1920 x 1080 resolution video at 30 fps. It's equipped with a 2.8-12mm motorized varifocal lens. Smart IR delivers up to 100' of night vision, and STAR-LIGHT technology enables the camera to produce clear video without IR in low-light conditions. Audio is transmitted thanks to a built-in microphone. 100 dB of true wide dynamic range ensures that an entire scene is captured clearly in challenging lighting conditions.
This Universal HD analog camera sends AHD, HD-TVI, HD-CVI, and all analog signals to 960H. UTC (Up-the-Coax) technology allows for OSD control of the camera. An icon-based OSD menu with a built-in joystick simplifies navigating the camera's settings. This device is compatible with Digital Watchdog's VMAX A1 DVR, which is available separately. - Compatible with Digital Watchdog's VMAX A1 DVR (available separately)
- Universal HD Analog output: AHD, HD-TVI, HD-CVI, and analog signals to 960H
- OSD control via UTC (Up-the-Coax)
- True wide dynamic range, backlight compensation, 3D-DNR, defog image compensation, dynamic range compressor, and highlight masking exposure help improve image quality and visibility
- Programmable privacy zones enable you to select up to 16 areas you don't want recorded
- 100' of Smart IR with intelligent camera sync
- Mechanical IR cut filter enables true day and night functionality
- Auto and manual white balance
- Auto sensing 24 VAC / 12 VDC with line lock
- DIY Snapit three-step installation process
UPC: 813379019845 In the Box Digital Watchdog DWC-D4283WTIR 2.1MP Universal HD Analog Dome Camera with Night Vision & 2.8-12mm Lens DC Plug Cable Test Video Cable Template Sheet 2 x Screws & Plastic Anchors Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog DWC-D4283WTIR 2.1MP Universal HD Analog Dome Camera with Night Vision & 2.8-12mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog DWC-D4283WTIR Specs | | | Sensor | 2.1 MP 1/3" CMOS sensor | | Effective Pixels (H x V) | 1944 x 1092 | | Scanning System | Progressive | | Frequency | 60/50 Hz | | Video Output | HD-analog, HD-TVI, HD-CVI 2.1 MP 1080p
CVBS analog up to 960H | | Synchronization | Internal | | Resolution | 1920 x 1080 (1080p) | | Minimum Illumination | Color: 0.03 lux at f/1.4 (30 IRE)
B&W: 0 lux at f/1.4 (30 IRE) | | S/N Ratio | 55 dB | | Signal Technology | Universal HD over Coax technology with HD-analog, HD-TVI, HD-CVI, and all analog to 960H signal support | | Alarm Output | 1 alarm output | | | | Built-In Microphone | Yes | | Sensitivity | -38 dB ±2 dB | | Frequency Response | 50 Hz to 10 kHz | | | | Focal Length | 2.8-12mm | | Lens Type | Motorized zoom auto-focus P-iris lens | | Smart IR | Yes | | IR Range | 100' (30.5 m) | | | | Shutter Speed | 1/30 to 1/30,000 seconds | | Backlight | Off/on | | Star-Light | Sense-Up: Off, x2 to x32 | | Wide Dynamic Range | 100 dB, off/on | | Digital Noise Reduction (DNR) | 3D-DNR: Off, Low, Middle, High | | White Balance | Auto, auto-ex, preset, manual | | Mechanical IR Cut Filter | Yes | | Day and Night | Day, night, auto | | Flip / Mirror | Yes | | AGC (Automatic Gain Control) | Max 60 dB | | Motion Detection | Yes | | Programmable Privacy Zones | 16 | | Sharpness | 0 to 10 | | Gamma | 0.45 to 0.75 | | RS-485 | Built-in | | UTP | Built-in | | Pelco System Integration | Pelco D, Pelco C | | Digital Zoom | 1 to 16x | | | | Power Requirements | 12 VDC / 24 VAC | | Power Consumption | 12 VDC (LED off): 3.0 W
12 VDC (LED on): 5.2 W
24 VAC (LED off): 2.3 W
24 VAC (LED on): 4.6 W | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Operating Humidity | Less than 90% (non-condensing) | | Certifications | FCC, CE, RoHS | | Construction Material | Plastic | | Dimensions | 4.25 x 3.81" (108 x 96.8 mm) | | Weight | 0.529 lb (240 g) | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 8.1 x 7.1 x 5.8" |
