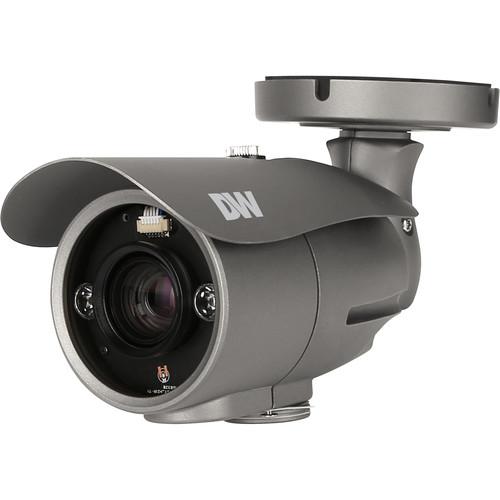

User Manual for Digital Watchdog DWC-LPR650U 2.1MP Outdoor Universal HD Analog License Plate Recognition Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Digital Watchdog DWC-LPR650U 2.1MP Outdoor Universal
- Product category: Wired Analog & HD Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired Analog & HD Cameras
|
User manual for the Digital Watchdog DWC-LPR650U 2.1MP Outdoor Universal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description The DWC-LPR650U 2.1MP Outdoor Universal HD Analog License Plate Recognition Bullet Camera with Night Vision from Digital Watchdog is designed to capture the license plate numbers of moving vehicles traveling at speeds as high as 50 mph from a distance of up to 115'. The camera features a 2.1MP 1/3" progressive scan CMOS sensor to transmit analog video at a resolution up to 1920 x 1080 at 30 fps. The 6-50mm varifocal lens delivers a 45.3-5.7° field of view. Smart IR LEDs provide up to 115' of night vision range.
This universal HD analog camera transmits AHD, HD-TVI, HD-CVI, and standard analog signals. Its UTC (Up-the-Coax) connection allows for OSD control of the camera. An icon-based OSD menu with a built-in joystick simplifies navigating the camera's settings. The IP66-rated aluminum enclosure makes the camera suitable for outdoor use. - Compatible with Digital Watchdog's VMAX A1 DVRs (available separately)
- LPR (license plate recognition) technology captures the license plate numbers of vehicles moving at up to 50 mph with a 13 to 115' capture range
- Smart IR delivers up to 115' of night vision
- Backlight compensation, 3D-DNR, dynamic range compressor, and highlight masking exposure help improve image quality and visibility
- OSD control via UTC (Up-the-Coax)
- External OSD and lens adjustments
- Programmable privacy zones enable you to select up to 16 areas you don't want recorded
- Resists fogging and condensation under varied weather conditions
- IP66-rated aluminum enclosure that is suitable for outdoor use
UPC: 813379019869 In the Box Digital Watchdog DWC-LPR650U 2.1MP Outdoor Universal HD Analog License Plate Recognition Bullet Camera with Night Vision Torx Wrench DC Plug Cable Test Video Cable Template Sheet 4 x Screws & Plastic Anchors Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog DWC-LPR650U 2.1MP Outdoor Universal HD Analog License Plate Recognition Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog DWC-LPR650U Specs | | | Sensor | 2.1 MP 1/3" CMOS | | Resolution | 1920 x 1080 | | Effective Pixels (H x V) | 1944 x 1092 | | Scanning System | Progressive | | Frequency | 60/50 Hz | | Video Output | HD analog, HD-TVI, HD-CVI 2.1 MP 1920 x 1080
CVBS analog up to 960 x 480 | | Synchronization | Internal | | Minimum Illumination | B&W: 0 lux at f/1.4 (30 IRE) | | S/N Ratio | 55 dB | | Signal Technology | Universal HD over coax technology with HD-analog, HD-TVI, HD-CVI, and all analog to 960H signal support | | Alarm Output | 1 alarm output | | | | Focal Length | 6-50mm | | Lens Type | Varifocal P-iris lens | | Field of View | 45.3-5.7° | | IR Range | 115' / 35 m | | | | Image Capture | Range: 13-115' / 4-35 m
Speed: Up to 50 mph | | Shutter Modes | Auto, manual, FLC | | Shutter Speed | 1/30 to 1/30,000 seconds | | Backlight | Off, on | | Digital Noise Reduction (DNR) | 3D-DNR: Off, Low, Middle, High | | Dynamic Range Compressor (DRC) | Off, low, middle, high | | Day and Night | Night | | Flip / Mirror | Yes | | AGC (Automatic Gain Control) | 60 dB max | | Motion Detection | Yes | | Programmable Privacy Zones | 16 | | Sharpness | 0 to 10 | | Gamma | 0.45 to 0.75 | | Pelco System Integration | Pelco D, Pelco C | | RS-485 | Built in | | UTP | Built in | | | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Operating Humidity | Less than 90% (non-condensing) | | IP Rating | IP66 | | Tamper Resistance | Yes | | Certifications | FCC, CE, ROHS | | Power Requirements | 12 VDC / 24 VAC | | Power Consumption | 12 VDC: 6.12 W (LED on)
24 VAC: 5.7 W (LED on) | | Construction Material | Aluminum | | Dimensions | 9.4 x 3.81" / 264 x 96.7 mm | | Weight | 1.83 lb / 0.83 kg | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 12.2 x 5.4 x 5.1" |
