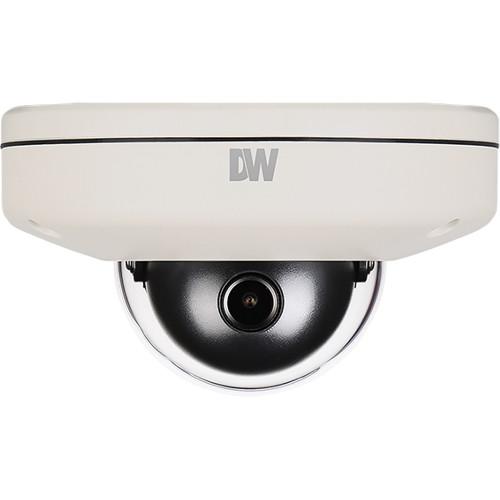

User Manual for Digital Watchdog DWC-MF21M28T 2.1MP MEGApix Triple Codec Network Camera Click to enlarge the picture
Contents of the user manual for the Digital Watchdog DWC-MF21M28T 2.1MP MEGApix Triple
- Product category: Wired IP Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired IP Cameras
|
User manual for the Digital Watchdog DWC-MF21M28T 2.1MP MEGApix Triple contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description The Digital Watchdog DWC-MF21M28T 2.1MP MEGApix Triple Codec Network Camera is a triple codec Flat Vandal Dome network camera that provides 2.1MP Full HD 1920 x 1080p resolution video at 30 frames per second (fps). The camera's advanced technologies such as True Day and Night, 3D-DNR, and WDR will deliver quality images in any type of environment. And Power over Ethernet (PoE) will simplify the installation process by connecting both power and network through a single cable. - 3D DNR (Digital Noise Reduction)
- BLC (Backlight Compensation)
- Supports True D/N (Day/Night) Settings
- Sony 1/2.8" CMOS Image Sensor
- Class 2 PoE (Power over Ethernet) Switch
- 16 Programmable Privacy Zones
UPC: 813379013836 In the Box Digital Watchdog DWC-MF21M28T 2.1MP MEGApix Triple Codec Network Camera Limited 2-Year Warranty Brochure PDF 400.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog DWC-MF21M28T 2.1MP MEGApix Triple Codec Network Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog DWC-MF21M28T Specs | Resolution | 2.1 MP (Full HD 1080p at 30 fps) | | Effective Pixels | 1920 x 1080 | | Image Sensor Type | Sony 1/2.8" CMOS | | Illumination | Color F1.8 (30IRE): 2.4 lux
Black-and-White F1.8 (30IRE): 0.5 lux | | Angle of View | Horizontal: 109° | | Lens | Fixed F1.8 Lens Type (2.8 mm focal length) | | Digital Zoom | 12x | | Network | Frame Rate: Up to 30 fps at 2.1MP
LAN: 802.3 Compliance 10/100 LAN
Maximum Simultaneous User Access: 5 Simultaneous Users
OnVIF Conformant Protocols: TCP/IP, HTTP, DHCP, PPPoE, ICMP, ARP, RARP, RTSP, NTP, UDP, Multicast
SD Card Backup: Up to 24 Hours to microSD Card (4 - 32 GB)
Streaming Capability: Simultaneous Dual-Stream
Video Compression Type: H.264, MPEG4, MJPEG
Video Management Software: DW Spectrum
Web Viewer: Windows XP/Vista/7 or Mac OS Browser (Internet Explorer, Chrome, Firefox, Safari) | | Operational | 3D DNR (3D Digital Noise Reduction): Off/Low/Middle/High
AGC (Auto Gain Control): Max 41 dB
Alarm Notifications: Notifications via e-mail
BLC (Backlight Compensation): OFF/ON
D/N (Day/Night): Auto, Day (Color), Night (Black-and-White)
DSS (Digital Slow Shutter): Off, up to 8x
Programmable Privacy Zones: OFF/ON (16 Programmable Zones)
Recording Schedule: Continuous, Motion, Pre-Alarm, Post-Alarm
Sharpness: 0 - 10
WDR (Wide Dynamic Range): Off, Low, Medium, High | | Environmental | NEMA RATING: IP66 (Protects against dust and high pressure water)
Operating Humidity: Less than 90% (Non-Condensing)
Operating Temperature: 14 to 122°F (-10 to 50°C)
Power Consumption: 3.6 W (300 mA)
Voltage: DC 12 V PoE (IEEE802.3af Class 2) | | Housing Type | Vandal Dome | | Housing Material | Aluminum Die-Casting | | Dimensions (HxD) | 2.9 x 4.9" (74 x 125 mm) | | Weight (Approximate) | 1 lb (0.45 kg) |
