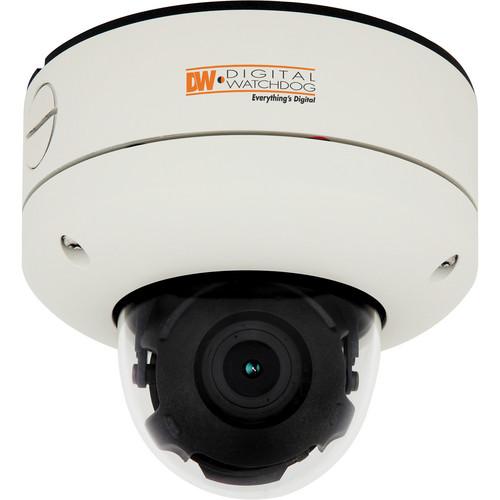

User Manual for Digital Watchdog DWC-MV421D MEGApix SnapIt 2.1MP Outdoor Vandal Dome PoE IP Camera Click to enlarge the picture
Contents of the user manual for the Digital Watchdog DWC-MV421D MEGApix SnapIt 2.1MP
- Product category: Wired IP Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired IP Cameras
|
User manual for the Digital Watchdog DWC-MV421D MEGApix SnapIt 2.1MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description The White DWC-MV421D MEGApix SnapIt 2.1MP Outdoor PoE IP Dome Camera from Digital Watchdog is a triple-codec network camera that supports 1080p resolution video at 30 fps. It is equipped with a 2.8 to 10mm zoom lens and features a vandal-resistant aluminum housing for outdoor use. Advanced features included 3D noise reduction, wide dynamic range support, and two-way audio capabilities. For simplified installation, the camera supports PoE, letting you pass power and network signals over a single Ethernet cable. The camera is OnVIF compliant for integration into open platform solutions. - Triple Codecs with Simultaneous Dual-Stream
- The camera allows you to optimize your bandwidth usage by offering simultaneous streaming. This allows you to stream high resolution signals for live monitoring and motion-detected events, and setup a lower resolution streaming profile for when no activity is detected. This enables the camera to seamlessly transition between low and high resolution streams to maximize bandwidth usage, reduce network traffic, and improve system performance.
- Smart DNR 3D Digital Noise Reduction
- Smart DNR 3D Digital Noise Reduction increases the camera's clarity in low light environments by using a unique algorithm to clean electronic noise signals that can reduce the camera's visibility and trigger false motion detection events. Digital Watchdog's noise reduction technology allows the camera to produce clearer images in both color and B/W in low light without creating lag or ghost effects in the image.
- Key Features
-
- 2.1 Megapixel Image Sensor (1080P, 30fps)
- 2.8 to 10mm P-Iris Remote auto focus lens
- Wide Dynamic Range (WDR)
- Triple codec (H.264, MJPEG, MPEG4) support with simultaneous dual-stream
- OnVIF Compliant, Profile S
- PoE and 12 VDC
- Smart DNR 3D Digital Noise Reduction
- Two-way audio for communication between camera's web-based UI and camera's location
- Auto Gain Control (AGC)
- Back Light Compensation (BLC)
- Auto White Balance (AWB)
- Programmable privacy zones
- Motion detection
- microSD/SDHC Card Slot for Emergency Backup (Class 10 recommended, card not included)
- CleanView hydrophobic dome coating repels water, dust, and grease
- IP68 water resistant
- Built-in junction box
- Alarm sensor input
- Relay Output
- Web Server Built-in
- Recording Schedule: Continuous / Motion / Sensor / Pre- & Post- alarm
- Email and remote monitoring software notifications
UPC: 813379011795 In the Box Digital Watchdog DWC-MV421D MEGApix SnapIt 2.1MP Outdoor Vandal Dome PoE IP Camera (White) 4 x Screw 4 x Dry Wall Anchor Secondary Video-BNC Cable TROX-T20 Screwdriver Mounting Template DC Plug Camera Module L-Wrench TROX-T20 Bolt CD (Manual and Software) Quick Start Guide Limited 2-Year Warranty Brochure PDF 6.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog DWC-MV421D MEGApix SnapIt 2.1MP Outdoor Vandal Dome PoE IP Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog DWC-MV421D Specs | | | Image Sensor | 1/2.8" CMOS Sensor | | Total Pixels (H x V) | 2016 x 1108 | | Minimum Illumination | Color F1.6 (30 IRE): 0.5 lux
Black-and-White: F1.6 (30 IRE): 0.01 lux | | | | Focal Length | 2.8 to 10 mm | | Lens Type | Remote auto focus | | Zoom | 3.5x Optical
8x Digital | | IR Distance | N/A | | | | Shutter Modes | Auto / Manual | | Shutter Speed | 1/30, 1/60 to 1/120
Digital Slow Shutter: 2x, 3x, 4x | | Day & Night | Auto / Day (Color) / Night (B&W) | | Lens | Mode: Manual / DC / AF | | Programmable Privacy Zones | 30 | | | | LAN | 802.3 Compliance 10/100 LAN | | Compression Type | Video: H.264, MPEG4, MJPEG (Super Fine to Low) | | Resolution | 1920 x 1080 (16:9) to 320 x 240 (4:3) | | Frame Rate | Up to 30 fps at all resolutions | | Protocol | TCP/IP, HTTP, DHCP, PPPoE, ICMP, ARP, RARP, RTSP, NTP, UDP, Multicast | | Maximum User Access | 4 simultaneous users | | Memory Card Slot | microSD/SDHC (for Network Loss Emergency Recording; up to 24 Hours to 32GB class 10 card) | | ONVIF Conformance | Profile S | | Web Viewer | Supported OS: Windows XP, Vista, 7, MAC OS
Supported Browsers: Internet Explorer, Google Chrome, Mozilla Firefox, Safari | | Video Management Software | DW Spectrum, Pivot CMS, DW's VMS | | | | Housing Material | Aluminum | | Operating Temperature | -20.2 to 131°F (-29 to 55°C) | | Operating Humidity | Less than 90% (non-condensing) | | Storage Temperature | -20.2 to 131°F (-29 to 55°C) | | Power Requirement | 12 VDC, PoE (IEEE 802.3af class 3) | | Power Consumption | 7.2 W, 600 mA | | Dimensions | 5.47 x 4.7" (13.9 x 11.88 cm) | | Weight | 2.02 lb (0.91 kg) | | | | Package Weight | 3.75 lb | | Box Dimensions (LxWxH) | 8.0 x 7.8 x 6.2" |
