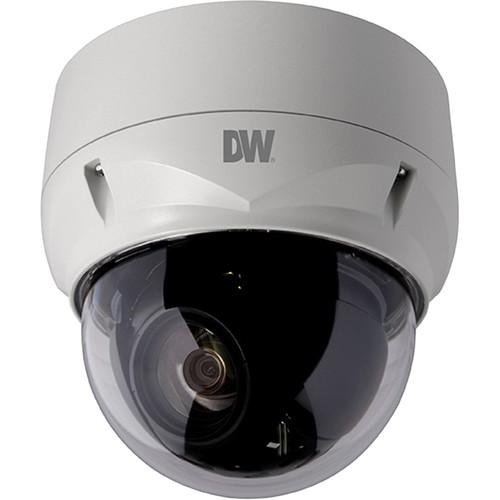

User Manual for Digital Watchdog DWC-PTZ20X 2.1MP Outdoor PTZ HD Analog Dome Camera with 4.7-94mm Lens Click to enlarge the picture
Contents of the user manual for the Digital Watchdog DWC-PTZ20X 2.1MP Outdoor PTZ
- Product category: Wired Analog & HD Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired Analog & HD Cameras
|
User manual for the Digital Watchdog DWC-PTZ20X 2.1MP Outdoor PTZ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description The DWC-PTZ20X 2.1MP Outdoor PTZ HD Analog Dome Camera with 4.7-94mm Lens from Digital Watchdog has a 2.1MP 1/2.8" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps. It's equipped with a 4.7-94mm varifocal lens to deliver a 55.5-3° field of view. Integrated STAR-LIGHT technology enables the camera to record in low-light conditions. PTZ functionality allows 0-360° endless panning, a -10-190° tilting range, and 20x optical zoom.
This HD analog camera offers AHD, HD-TVI, and CVBS signal support. UTC (Up-the-Coax) technology allows for OSD control of the camera, and an icon-based OSD menu with a built-in joystick simplifies navigating the camera's settings. This camera is housed in an IP66-rated aluminum enclosure that is suitable for outdoor use. Wall and ceiling mounts are available separately. - Analog HD over Coax technology with AHD/TVI signal support
- 0 to 360° endless panning, with 380° per second pan speed
- -10 to 190° tilting range
- 20x optical and 16x digital zoom
- 240 preset positions, 8 patterns, and 8 tours
- Mechanical IR cut filter for true day and night functionality
- Wide dynamic range, backlight compensation, 3D-DNR, defog, and white balance help improve image quality and visibility
- OSD control via UTC (Up-the-Coax)
- Icon-driven OSD menu with a built-in joystick
- Vector Drive technology, pan/tilt motion in shortest path
- Auto sensing 24 VAC / 12 VDC with line lock
- Programmable privacy zones enable you to select up to 16 areas you don't want recorded
- IP66-rated aluminum enclosure that is suitable for outdoor use
- Required wall and ceiling mounts available separately
UPC: 813379018770 In the Box Digital Watchdog DWC-PTZ20X 2.1MP Outdoor PTZ HD Analog Dome Camera with 4.7-94mm Lens Mounting Template Sheet Mounting Bracket Safety Lanyard 4 x Mounting Screw (PH6 x 35.0) 4 x Plastic Anchors 4 x O-Ring Torx Wrench 2-Pin Terminal Block 3-Pin Terminal Block 4-Pin Terminal Block 5-Pin Terminal Block Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog DWC-PTZ20X 2.1MP Outdoor PTZ HD Analog Dome Camera with 4.7-94mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog DWC-PTZ20X Specs | | | Image Sensor | 1/2.8" CMOS sensor | | Effective Pixels (H x V) | 1945 x 1097 | | Scanning System | Progressive scan | | Synchronization | Internal | | Resolution | HD-TVI: 1920 x 1080 at 30/25 fps, 1280 x 720 at 60/50/30/25 fps
AHD: 1920 x 1080 at 30/25 fps | | Minimum Illumination | Color: 0.35 lux, 50 IRE
B&W: 0.013 lux, 50 IRE | | Video Output | AHD: 1920 x 1080 at 30 fps, 1280 x 720 at 60 fps, 1280 x 720 at 30 fps | | | | Focal Length | 4.7-94mm | | Lens Type | Remote auto focus lens | | Angle of View | 55.5-3° | | Zoom | 20x optical, 16x digital | | | | Shutter Speed | 30 fps: Auto (1/30,000 to x8 seconds), Manual
60 fps: Auto (1/50,000 to x8 seconds), Manual | | Backlight | Off, on | | Defog | Off, on | | Wide Dynamic Range | Off, on, night off | | 3D-DNR | Off, low, middle, high | | White Balance | Auto, fluorescent, incandescent, outdoor, manual | | Day and Night | Day, night, auto | | Mechanical IR Cut Filter | Yes | | Flip / Mirror | Yes | | Privacy Masking | 16 zones | | | | Pan Range | 360° endless | | Pan Speed | Maximum 380°/sec, preset | | Tilt Range | -10 to 190° | | Tilt Speed | Maximum 380°/sec, preset | | Calibration | Auto, 0.1 to 6° | | Presets | 240 | | Tour | 8 | | Pattern | 8 | | Home Function | Yes | | | | Video Output | HD-TVI or AHD: BNC jack
Composite: BNC jack | | Alarm | Input: 4
Output: 2 | | Control | RS-485, Baud Rate: 2400 to 38,400 bps
Default: 9600 bps | | Camera ID | 1 to 3999 | | | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Operating Humidity | Less than 90%, non-condensing | | IP Rating | IP66 | | Certifications | FCC, CE, RoHS | | | | Power Requirements | 12 VDC, 24 VAC | | Power Consumption | 1 A / 12 W at 12 VDC, 24 VAC | | | | Material | Aluminum | | Dimensions | 6.1 x 5.9" / 154 x 150 mm | | Weight | 3.5 lb / 1.6 kg | | | | Package Weight | 4.36 lb | | Box Dimensions (LxWxH) | 9.15 x 8.8 x 8.7" |
