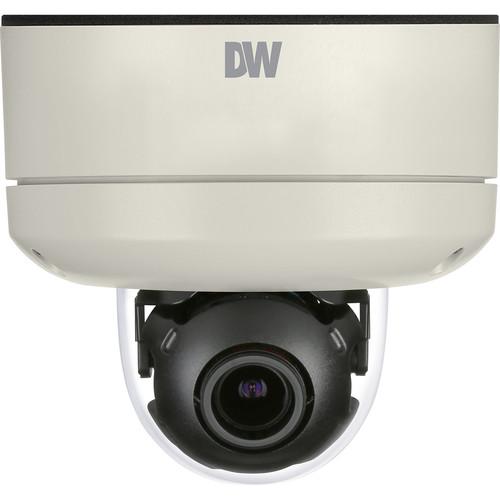

User Manual for Digital Watchdog DWC-V4283WD 2.1MP Outdoor Universal HD Analog Dome Camera with 2.8-12mm Lens Click to enlarge the picture
Contents of the user manual for the Digital Watchdog DWC-V4283WD 2.1MP Outdoor Universal
- Product category: Wired Analog & HD Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired Analog & HD Cameras
|
User manual for the Digital Watchdog DWC-V4283WD 2.1MP Outdoor Universal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description The DWC-V4283WD 2.1MP Outdoor Universal HD Analog Dome Camera from Digital Watchdog has a 2.1MP 1/3" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at 30 fps. It's equipped with a 2.8-12mm motorized varifocal lens. STAR-LIGHT technology enables the camera to record in low-light conditions. 100 dB of true wide dynamic range ensures that an entire scene is captured clearly in challenging lighting conditions. This universal HD analog camera sends AHD, HD-TVI, HD-CVI, and all analog signals to 960H. UTC (Up-the-Coax) technology allows for OSD control of the camera. An icon-based OSD menu with a built-in joystick simplifies navigating the camera's settings. This device has an IP68- and IK10-rated aluminum enclosure that is suitable for outdoor use in areas at risk of vandalism. Additionally, it is equipped with a built-in junction box to keep your cables secure. - Compatible with Digital Watchdog's VMAX A1 DVR
- DIY Snapit four-step installation process
- True wide dynamic range, backlight compensation, 3D-DNR, defog image compensation, dynamic range compressor, and highlight masking exposure help improve image quality and visibility
- OSD control via UTC (Up-the-Coax)
- Programmable privacy zones enable you to select up to 16 areas you don't want recorded
- Auto sensing 24 VAC/12 VDC with line lock
- Auto and manual white balance
- CleanView hydrophobic dome coating repels water, dust, and grease
- IP68- and IK10-rated aluminum enclosure that is suitable for outdoor use in areas at risk of vandalism
UPC: 813379019838 In the Box Digital Watchdog DWC-V4283WD 2.1MP Outdoor Universal HD Analog Dome Camera with 2.8-12mm Lens Hexagonal Wrench (For NPT Plug Set Screw) Torx Screwdriver Template Sheet 4 x Screws & Plastic Anchors Test Video Cable DC Plug Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog DWC-V4283WD 2.1MP Outdoor Universal HD Analog Dome Camera with 2.8-12mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog DWC-V4283WD Specs | | | Image Sensor | 2.1 MP 1/3" CMOS sensor | | Effective Pixels (H x V) | 1944 x 1092 | | Scanning System | Progressive scan | | Frequency | 60/50 Hz | | Video Output | HD-analog, HD-TVI, HD-CVI 2.1 MP 1080p
CVBS analog up to 960H | | Synchronization | Internal | | Resolution | 1920 x 1080 (1080p) | | Minimum Illumination | Color: f/1.4 (30 IRE): 0.03 lux | | S/N Ratio | 55 dB | | Signal Technology | Universal HD over Coax technology with HD-analog, HD-TVI, HD-CVI, and all analog to 960H signal support | | Alarm Output | 1 alarm output | | | | Focal Length | 2.8-12mm | | Lens Type | Motorized zoom auto-focus P-iris lens | | | | Shutter Speed | 1/30 to 1/30,000 seconds | | Backlight Compensation | Off, on | | Star-Light | Sense-Up: Off, x2 to x32 | | Wide Dynamic Range | 100 dB, off/on | | Digital Noise Reduction (DNR) | 3D-DNR: Off, Low, Middle, High | | White Balance | Auto, auto-ex, preset, manual | | Day and Night | Day, night, auto | | Flip/Mirror | Yes | | AGC (Automatic Gain Control) | Max 60 dB | | Motion Detection | Yes | | Programmable Privacy Zones | 16 | | Sharpness | 0 to 10 | | Gamma | 0.45 to 0.75 | | RS-485 | Built-in | | UTP | Built-in | | Pelco System Integration | Pelco D, Pelco C | | Digital Zoom | 1 to 16x | | | | Power Requirements | 12 VDC / 24 VAC | | Power Consumption | 12 VDC: 3 W
24 VAC: 2.3 W | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Operating Humidity | Less than 90% (non-condensing) | | IP Rating | IP68 | | IK Rating | IK10 | | Certifications | FCC, CE, RoHS | | Construction Material | Aluminum | | Dimensions | 5.47 x 4.7" (139 x 118.8 mm) | | Weight | 2.028 lb (0.92 kg) | | | | Package Weight | 3.2 lb | | Box Dimensions (LxWxH) | 8.6 x 7.7 x 7.1" |
