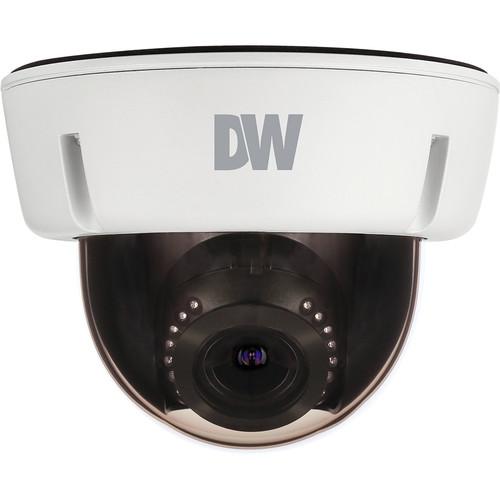

User Manual for Digital Watchdog DWC-V6263WTIR 2.1MP Outdoor Universal HD Analog Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Digital Watchdog DWC-V6263WTIR 2.1MP Outdoor Universal
- Product category: Wired Analog & HD Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired Analog & HD Cameras
|
User manual for the Digital Watchdog DWC-V6263WTIR 2.1MP Outdoor Universal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description Monitor an outdoor area with the DWC-V6263WTIR 2.1MP Outdoor Universal HD Analog Dome Camera with Night Vision from Digital Watchdog. The camera has a 1/3" progressive scan CMOS sensor for a resolution up to 1920 x 1080 at 30 fps. Star-Light technology enables the camera to record in low-light conditions. The 2.8-12mm varifocal lens features Smart IR LEDs that provide an IR night vision range of up to 100'. The universal HD analog camera sends AHD, HD-TVI, HD-CVI, and all analog signals to 960H. UTC (up-the-coax) technology allows for OSD control of the camera. An icon-based OSD menu with a built-in joystick simplifies navigating the camera's settings. The IP66- and IK10-rated aluminum enclosure makes the camera suitable for outdoor use. - True wide dynamic range, backlight compensation, 3D-DNR, defog image compensation, dynamic range compressor, and highlight masking exposure help improve image quality and visibility
- IR cut filter for true day/night functionality
- Smart IR with intelligent camera sync delivers an IR range of up to 100'
- OSD control via UTC (up-the-coax)
- Programmable privacy zones enable you to select up to 16 areas you don't want recorded
- Auto and manual white balance
- CleanView hydrophobic dome coating repels water, dust and grease
- IP66- and IK10-rated aluminum enclosure that is suitable for outdoor use
UPC: 813379019814 In the Box Digital Watchdog DWC-V6263WTIR 2.1MP Outdoor Universal HD Analog Dome Camera with Night Vision Torx Wrench Test Video Cable DC Plug Template Sheet 4 x Screws & Plastic Anchors Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog DWC-V6263WTIR 2.1MP Outdoor Universal HD Analog Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog DWC-V6263WTIR Specs | | | Sensor | 2.1 MP 1.3" CMOS | | Effective Pixels (H x V) | 1944 x 1092 | | Scanning System | Progressive | | Frequency | 60/50 Hz | | Signal Technology | Universal HD over coax technology with HD-analog, HD-TVI, HD-CVI, and all analog to 960H signal support | | Synchronization | Internal | | Minimum Illumination | f/1.4 (30 IRE): 0.03 lux (color)
f/1.4 (30 IRE): 0 lux (B&W)
| | S/N Ratio | 55 dB | | Video Output | HD-analog, HD-TVI, HD-CVI 2.1 MP 1080p
CVBS analog up to 960H
| | Alarm Output | 1 alarm output | | | | Focal Length | 2.8-12mm | | Lens Type | Varifocal P-iris lens | | IR Range | 100' (30.5 m) | | | | Shutter Speed | 1/30 to 1/30,000 | | Backlight | Off, on | | Star-Light | Sense-Up: Off, x2 to x32 | | Wide Dynamic Range | 100 dB, off/on | | Digital Noise Reduction (DNR) | 3D-DNR | | White Balance | Auto, auto-ex, preset, manual | | Day and Night | Day, night, auto | | Flip / Mirror | Yes | | AGC (Automatic Gain Control) | 60 dB max | | Programmable Privacy Zones | 16 | | Sharpness | 0 to 10 | | Gamma | 0.45 to 0.75 | | Pelco System Integration | Pelco D, Pelco C | | RS-485 | Built-in | | UTP | Built-in | | Digital Zoom | 1 to 16x | | | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Operating Humidity | Less than 90% (non-condensing) | | IP Rating | IP66 | | IK Rating | IK10 | | Certifications | FCC, CE, ROHS | | Power Requirements | 12 VDC / 24 VAC | | Power Consumption | 12 VDC: 2.94 W (LED Off), 5.22 W (LED On)
24 VAC: 2.5 W (LED Off), 4.35 W (LED On)
| | Construction Material | Aluminum | | Dimensions | 5.7 x 4.28" (144 x 108.8 mm) | | Weight | 1.65 lb (748.4 g) | | | | Package Weight | 2.635 lb | | Box Dimensions (LxWxH) | 7.55 x 6.95 x 6.15" |
