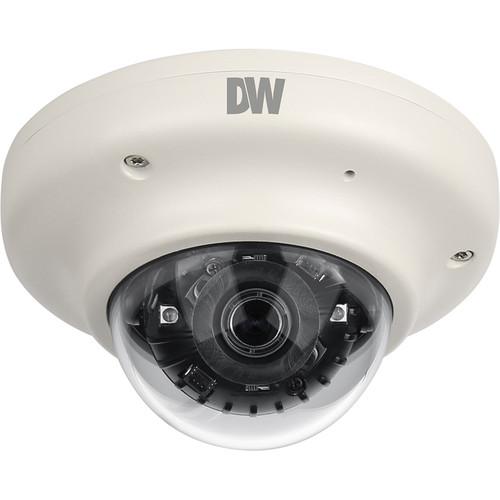

Product description The DWC-V7253TIR 2.1MP Outdoor Universal HD Analog Dome Camera with 3.6mm Lens & Night Vision from Digital Watchdog has a 2.1MP 1/2.7" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at 30 fps. Its 3.6mm fixed lens is complemented by Smart IR LEDs that deliver up to 50' of night vision, and STAR-LIGHT technology enables the camera to record in low-light conditions.
This Universal HD analog camera sends AHD, HD-TVI, HD-CVI, and all analog signals to 960H. UTC (Up-the-Coax) technology allows for OSD control of the camera. The camera is housed in an IP66- and IK10-rated aluminum enclosure that is suitable for outdoor use in areas at risk of vandalism.
Note: This device is compatible with Digital Watchdog's VMAX A1 DVRs, which are available separately. - Compatible with Digital Watchdog's VMAX A1 DVRs, which are available separately
- Universal HD analog output
- OSD control via UTC (Up-the-Coax)
- Digital wide dynamic range, backlight compensation, 3D-DNR, defog extreme weather image compensation, and highlight masking exposure help improve image quality and visibility
- Mechanical IR cut filter enables true day and night functionality
- 50' of Smart IR with intelligent camera sync
- Programmable privacy zones enable you to select up to 16 areas you don't want recorded
- IP66- and IK10-rated aluminum enclosure that is suitable for outdoor use in areas at risk of vandalism
UPC: 813379019777 In the Box Digital Watchdog DWC-V7253TIR 2.1MP Outdoor Universal HD Analog Dome Camera with 3.6mm Lens & Night Vision 2 x Mount Bolts & Nuts Torx Wrench Test Video Cable Template Sheet for Installing by Bolt & Nut 2 x Screws & Plastic Anchors Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog DWC-V7253TIR 2.1MP Outdoor Universal HD Analog Dome Camera with 3.6mm Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog DWC-V7253TIR Specs | | | Sensor | 2.1 MP 1/2.7" CMOS sensor | | Active Pixels | 1920 x 1080 | | Scanning System | Progressive scan | | Frequency | 60/50 Hz | | Video Output | HD-analog, HD-TVI, HD-CVI 2.1 MP 1080p
CVBS analog up to 960H | | Synchronization | Internal | | Resolution | 1920 x 1080 at 30 fps | | Minimum Illumination | Color: 0.41 lux at f/2.0, 30 IRE
B&W: 0 lux at f/2.0, 30 IRE | | S/N Ratio | 55 dB | | Signal Technology | Universal HD over Coax technology with HD-analog, HD-TVI, HD-CVI, and all analog to 960H signal support | | | | Focal Length | 3.6mm | | Lens Type | Fixed lens | | Smart IR | Yes | | IR Range | 50'/15.2 m | | | | Shutter | 1/30,000 to 1/30(25) seconds | | Backlight | Off/on | | Star-Light | Sense-Up: Off, x2 to x30 | | D-WDR | Yes | | 3D-DNR | Off, low, middle, high | | White Balance | Auto, auto-ex, preset, manual | | Day and Night | Day, night, auto | | Mechanical IR Cut Filter | Yes | | Flip/Mirror | Yes | | Automatic Gain Control | Max 50 dB | | Motion Detection | Yes | | Programmable Privacy Zones | 16 | | Sharpness | 0 to 10 | | Gamma | 0.45 to 0.75 | | | | Power Requirements | 12 VDC | | Power Consumption | LED Off: 1.92 W
LED On: 3.12 W | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Operating Humidity | Less than 90%, non-condensing | | IP Rating | IP66 | | IK Rating | IK10 | | Certifications | FCC, CE, RoHS | | Material of Construction | Aluminum | | Dimensions | 4.13 x 2.39" / 105 x 60.7 mm | | Weight | 0.95 lb / 430.9 g | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 5.0 x 5.0 x 5.0" |
