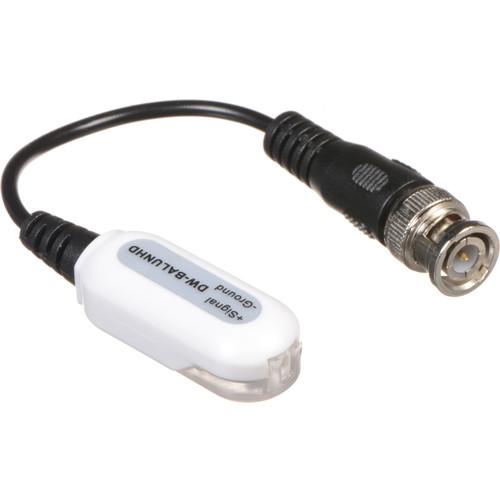

Product description These two HD Video Balun Converters from Digital Watchdog have a BNC connector and a twisted-pair video connector that allows you to connect your analog camera to Ethernet cables. Each converter is a passive, non-amplifier video balun that allows for real-time analog high-definition video transmission over UTP Cat5e or Cat6 cables up to 1000'. These converters are compatible with AHD, HD-TVI, HD-CVI, and CVBS analog cameras and offer built-in surge suppressors to protect against voltage spikes. It also helps reduce crosstalk and noise from video signals to ensure clear transmission. - Compatible with AHD, HD-TVI, HD-CVI, and CVBS
- Supports 720p and 1080p resolution
- Up to 1000' transmission distance
- Push-pin terminal connection for UTP cables
- 60 dB anti-interference and noise reduction
- No external power required
UPC: 813379016882 In the Box Digital Watchdog HD Video Balun Converters (Pair) Limited 2-Year Warranty Brochure PDF 302.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog HD Video Balun Converters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog DW-BALUNHD Specs | Connector 1 | BNC male | | Connector 2 | Push-terminal twisted-pair video connector | | Compatible Formats | AHD, HD-TVI, and HD-CVI | | Transmission Distance | AHD 720p: Up to 1000' (305 m)
AHD 1080p: Up to 600' (183 m)
HD-TVI 720p: Up to 1000' (305 m)
HD-TVI 1080p: Up to 600' (183 m)
HD-CVI 720p: Up to 800' (244 m)
HD-CVI 1080p: Up to 400' (122 m) | | Transmission Channels | 1 channel per balun | | Resolution Supported | 720p and 1080p | | ESD Protection | Contact Discharge Electricity Level: 3
Air Discharge Electricity Level: 3
Per IEC61000-4-2 | | Coaxial | Protection: 2 kV (different-code)
Per: IEC10004-5 | | UTP Connector | Protection: 2 kV (different-code), 4 kV (common-code)
Per IEC1000-4-5 | | Impedance | BNC Male: 75 Ohms
UTP Cable: 100 Ohms | | MTBF | > 10,000 hours | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Storage Temperature | 10.4 to 158°F (-12 to 70°C) | | Operating Humidity | 0-95% (non-condensing) | | Material | ABS | | Dimensions | 2.16 x 0.63 x 0.75" (55 x 16 x 19 mm) | | Weight | 0.8 oz (22.6 g) | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 4.3 x 3.4 x 0.7" |
