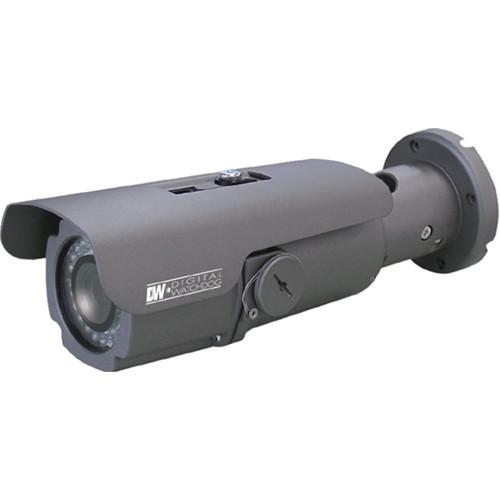

User Manual for Digital Watchdog MEGApix 2.1MP Outdoor Bullet Camera Click to enlarge the picture
Contents of the user manual for the Digital Watchdog MEGApix 2.1MP Outdoor Bullet
- Product category: Wired IP Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired IP Cameras
|
User manual for the Digital Watchdog MEGApix 2.1MP Outdoor Bullet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description The MEGApix 2.1MP Outdoor Bullet Camera from Digital Watchdog uses a 1/2.8" progressive-scan CMOS sensor for 1920 x 1080 resolution at 30 fps, and it features a 3.5-16mm varifocal lens for a 55.4° to 2.9° horizontal field of view. IR LEDs with Intelligent Camera Sync technology provide up to 100' of night vision, and a mechanical IR cut filter automatically switches from color to B&W for true day/night functionality. Wide dynamic range, white balance, and backlight compensation features offer high-quality images in ambient lighting, and line input and output connections allow for 2-way audio. The camera's live video can be viewed using IE, Chrome, Firefox, or Safari web browsers for remote access to your video feed, with up to five users simultaneously accessing the camera. A microSD slot supports up to 32GB of on-site recording, and the camera can record continuously for 24 hours at a time. PoE technology allows you to transfer both data and power over the same Ethernet cable, minimizing the amount of cables needed during installation, and the camera is IP66-rated weatherproof for use outdoors. - 1920 x 1080 resolution at 30 fps for high quality video in real time
- 3.5-16mm varifocal lens, with an f/1.6 aperture, for a 55.4° to 2.9° FOV
- IR LEDs with Intelligent Camera Sync for up to 100' of night vision
- Mechanical IR cut filter automatically switches from color to B&W in low lighting
- 4.5x optical zoom and 4x digital zoom
- Line input and output for 2-way audio capability
- microSD card slot supports up to 32GB of on-site storage
- Dual streaming in H.264, MPEG4, and MJPEG formatting
- Image enhancements include brightness, sharpness, and mirror / flip
- Motion detection with alarm notifications via email
- Up to 30 programmable privacy zones for customizing your field of view
- Records based on motion, sensor, pre- and post alarm, or continuous recording settings
- Live viewing using Internet Explorer, Chrome, Firefox, and Safari web browsers
- PoE technology allows you to use one wire for both data and power
- No fog or condensation, under any weather conditions
- IP66-rated weatherproof for use outdoors
UPC: 813379012747 In the Box Digital Watchdog MEGApix 2.1MP Outdoor Bullet Camera Mounting Template 4 x Screws 4 x Dry Wall Anchors L-Key Double-Sided Trox-T20 Hex Key Second BNC Video Jack Limited 2-Year Warranty Brochure PDF 1.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog MEGApix 2.1MP Outdoor Bullet Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog DWC-MB421TIR Specs | | | Image Sensor | 1/2.8" Sony CMOS | | Total Pixels (H x V) | 2016 x 1108 | | Resolution | 1920 x 1080 (16:9) to 320 x 240 (4:3) | | Video Compression Format | H.264, MPEG4, MJPEG (super fine to low) | | Frame Rate | Up to 30 fps at all resolutions | | Minimum Illumination | f/1.6 (30IRE): 0.5 lux (color)
f/1.6 (30IRE): 0.01 lux (B&W) | | | | Focal Length | 3.5-16mm | | Lens Type | Auto focus | | IR Distance | 100' (30.5 m) | | Angle of View | Horizontal: 55.4° wide to 2.9° tele | | Zoom | Optical: 4.5x
Digital: 4x | | | | Audio Compression Rate | Compression and Sampling Rate: G.711 (8 KHz) | | Input/Output | 1 x line in, 1 x line out mono | | | | Brightness | 0 to 20 | | Shutter Modes | Auto, Manual | | Digital Slow Shutter | Off, 2x, 3x, 4x | | Digital Noise Reduction | Off / Low / Middle / High | | Automatic Gain Control | 0 to 20 | | Backlight Compensation | Off / On | | Wide Dynamic Range | Off, On, Level 0 to 9 | | Day/Night | Auto, Day (color), Night (B&W) | | Lens | Mode: DC / Manual | | Motion Detection | Yes | | Programmable Privacy Zones | 30 zones | | Chroma | Hue and Saturation Settings: 0 to 20 | | Sharpness | 0 to 10 | | Flip / Mirror | Off, On | | Recording Schedule | Continuous, Motion, Sensor, Pre-and post-alarm | | Alarm Notifications | Via email | | | | LAN | 802.3 compliance 10/100 LAN | | Video Compression | H.264, MPEG4, M-JPEG | | Streaming Capability | Dual-stream at different rates and resolutions | | IP | IPv4, IPv6 | | Protocol | TCP/IP, HTTP, DHCP, PPPoE, ICMP, ARP, RARP, RTSP, NTP, UDP, Multicast | | Maximum User Access | 5 users | | ONVIF Conformance | Yes, Profile S | | Web Viewer | OS: Windows XP/ Vista / 7, MAC OS
Browser: Internet Explorer, Chrome, Firefox, Safari | | Video Management Software | NxMS, DW Spectrum, Pivot | | Memory Slots | 24 hours recording to microSDHC card (4 GB to 32 GB) | | | | Power Requirement | 12 VDC, PoE (IEEE802.3af Class 3) | | Power Consumption | 9 W, 750 mA
LED On: 14.4 W, 1200 mA | | Operating Temperature | -20 to 131°F (-29 to 55°C) | | Operating Humidity | < 90% (non-condensing) | | Storage Temperature | -20 to 131°F (-29 to 55°C) | | IP Rating | IP66 (Protects against dust and high pressure water) | | Certifications | CE, FCC, RoHS | | Housing Material | Aluminum | | Dimensions | 11.5 x 3.8" (29.3 x 9.7 cm) | | Weight | 1.5 lb (0.7 kg) | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 15.4 x 5.5 x 5.2" |
