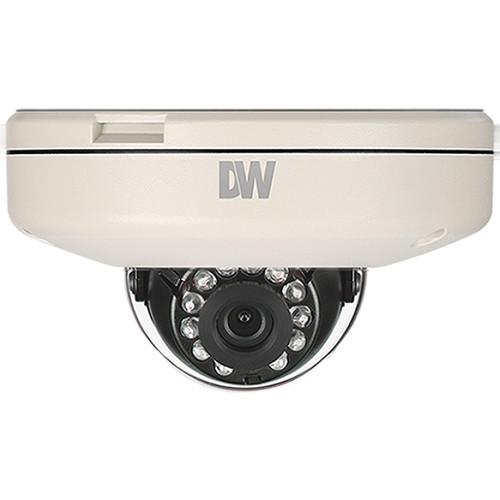

User Manual for Digital Watchdog MEGApix 2.1MP Outdoor Network Dome Camera Click to enlarge the picture
Contents of the user manual for the Digital Watchdog MEGApix 2.1MP Outdoor Network
- Product category: Wired IP Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired IP Cameras
|
User manual for the Digital Watchdog MEGApix 2.1MP Outdoor Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description The DWC-MF21M8TIR MEGApix 2.1MP Outdoor Bullet Camera from Digital Watchdog uses a 1/2.8" progressive-scan CMOS sensor for 1920 x 1080 resolution video at 30 fps, and it features a 8mm fixed lens for a 42° horizontal field of view. IR LEDs with Intelligent Camera Sync technology provide up to 98.4' of night vision, and a mechanical IR cut filter automatically switches from color to B&W for true day/night functionality. Wide dynamic range, white balance, and backlight compensation features offer high-quality images in ambient lighting, and sixteen programmable privacy zones allow you to customize your field of view. The camera's live video can be viewed using IE, Chrome, Firefox, or Safari web browsers for remote access to your video feed, with up to five users simultaneously accessing the camera. A microSD slot supports up to 32GB memory cards, enabling you to save video footage locally in case of a network disconnect. PoE technology allows you to transfer both data and power over the same Ethernet cable, minimizing the amount of cables needed during installation, and the camera is IP66-rated weatherproof for use outdoors. - 1920 x 1080 resolution at 30 fps for high quality video in real time
- 8mm fixed lens, with an f/2.0 aperture, for a 42° horizontal FOV
- IR LEDs with Intelligent Camera Sync for up to 98.4' of night vision
- Mechanical IR cut filter automatically switches from color to B&W in low lighting
- 12x digital zoom for focusing within your field of view
- microSD card slot supports up to 32GB of on-site storage
- Dual streaming in H.264, MPEG4, and M-JPEG formatting
- Multiple image settings such as WDR, 3D DNR, AGC, and backlight compensation
- Image enhancements include brightness, sharpness, and mirror / flip
- Motion detection with alarm notifications via email
- Up to 16 programmable privacy zones for customizing your field of view
- Records based on motion, pre- and post alarm, or continuous recording
- Live viewing using Internet Explorer, Chrome, Firefox, and Safari web browsers
- PoE technology allows you to use one wire for both data and power
- ONVIF Profile S compliant for compatibility with a wide range of surveillance devices
- IP66-rated weatherproof for use outdoors
UPC: 813379013676 In the Box Digital Watchdog MEGApix 2.1MP Outdoor Network Dome Camera Mounting Template 3 x Screws 3 x Dry Wall Anchors 2 x Mounting Nuts 2 x Mounting Screws Metal Mount Plate L-Wrench Limited 2-Year Warranty Brochure PDF 139.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog MEGApix 2.1MP Outdoor Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog DWC-MF21M8TIR Specs | | | Image Sensor | 1/2.8" Sony CMOS | | Total Pixels (H x V) | 1920 x 1080 | | Resolution | 1920 x 1080 (16:9) to 320 x 240 (4:3) | | Video Compression Format | H.264, MPEG4, M-JPEG (super fine to low) | | Frame Rate | Up to 30 fps at all resolutions | | Minimum Illumination | f/2.0 (30IRE): 2.4 lux (color)
f/2.0 (30IRE): 0.5 lux (B&W) | | | | Focal Length | 8mm fixed at f/2.0 | | IR LED Range | 98.4' / 30.0 m | | Angle of View | Horizontal: 42° | | Zoom | 12x (digital) | | | | Brightness | 0 to 20 | | Shutter Modes | Auto, Manual | | Digital Slow Shutter | Off, up to 8x | | Digital Noise Reduction | Off / Low / Middle / High | | Automatic Gain Control | 41 dB (max) | | Backlight Compensation | Off / On | | Wide Dynamic Range | Off / Low / Middle / High | | Day/Night | Auto, Day (color), Night (B&W) | | Motion Detection | Yes | | Programmable Privacy Zones | 16 | | Chroma | Hue and Saturation Settings: 0 to 20 | | Sharpness | 0 to 10 | | Flip / Mirror | Off, On | | Recording Schedule | Continuous, Motion, Pre-and post-alarm | | Alarm Notifications | Via email | | | | LAN | 802.3 compliance 10/100 LAN | | Streaming Capability | Dual-stream at different rates and resolutions | | IP | IPv4, IPv6 | | Protocol | TCP/IP, HTTP, DHCP, PPPoE, ICMP, ARP, RARP, RTSP, NTP, UDP, Multicast | | Maximum User Access | 5 users | | ONVIF Conformance | Yes, Profile S | | Web Viewer | OS: Windows XP/ Vista / 7, MAC OS
Browser: Internet Explorer, Chrome, Firefox, Safari | | Video Management Software | DW Spectrum | | Memory Slots | microSDHC slot supports 4 GB to 32 GB cards | | | | Power Requirement | 12 VDC, PoE (IEEE802.3af Class 2) | | Power Consumption | 3.6 W, 300 mA
LED On: 4.3 W, 360 mA | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Operating Humidity | < 90% (non-condensing) | | IP Rating | IP66 (Protects against dust and high pressure water) | | Certifications | CE, FCC, RoHS | | Housing Material | Aluminum die cast | | Dimensions | Ø4.9 x 2.9" / Ø12.5 x 7.4 cm | | Weight | 1.0 lb / 0.5 kg | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 5.2 x 5.2 x 4.7" |
