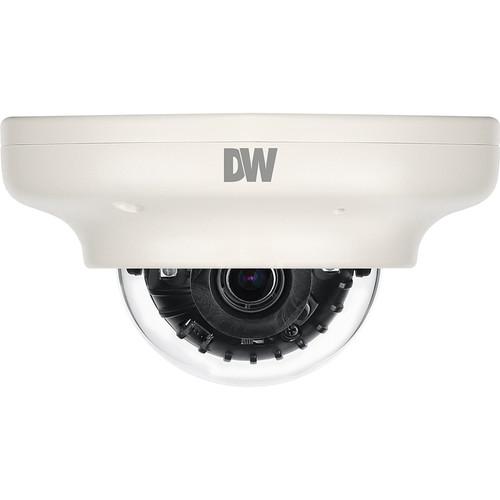

User Manual for Digital Watchdog MEGApix 4MP 6mm Outdoor Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Digital Watchdog MEGApix 4MP 6mm Outdoor
- Product category: Wired IP Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired IP Cameras
|
User manual for the Digital Watchdog MEGApix 4MP 6mm Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description Mount the MEGApix 4MP 6mm Outdoor Network Dome Camera with Night Vision from Digital Watchdog to an outdoor area for added security. It features a 1/3" CMOS sensor for 2560 x 1440 resolution video at up to 30 fps. The 6mm fixed lens is equipped with IR LEDs, which provide up to 50' of night vision in a 51° field of view. The built-in microSD/SDHC/SDXC class 10 slot supports cards up to 128GB, which are available for purchase separately.PoE technology simplifies connectivity by transferring power and data through one cable. This device is ONVIF-compliant for Profile S, making it compatible with a wide range of surveillance devices. The camera's enclosure is IP66- and IK10-rated making it suitable for outdoor use. - True wide dynamic range, auto white balance, backlight compensation, 3D-DNR, dynamic range compression, and true day/night help improve image quality and visibility
- Programmable privacy zones enable you to select up to 16 areas you don't want recorded
- Smart IR with intelligent camera sync delivers night vision up to 50'
- H.264 and MJPEG dual-streaming
- Alarm notifications are sent via email, microSD card, or FTP server when event triggers occur
- IP66- and IK10-rated aluminum die-cast enclosure that is suitable for outdoor use
UPC: 813379019708 In the Box Digital Watchdog MEGApix 4MP 6mm Outdoor Network Dome Camera with Night Vision Mount Bolt & Nut Torx Wrench Waterproof Cap & Gasket Template Sheet 2 x Screws & Plastic Anchors Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog MEGApix 4MP 6mm Outdoor Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog DWC-MV74WI6 Specs | | | Sensor | 4 MP 1/3" CMOS | | Effective Pixels (H x V) | 2688 x 1520 | | Minimum Illumination | Color: f/2.0 (30 IRE): 0.41 lux
B&W: f/2.0 (30 IRE): 0.0 lux
| | | | Focal Length | 6mm, f/2.0 | | Lens Type | Fixed lens | | IR Range | 50' (15.2 m) Smart IR | | Field of View | 51° | | | | Shutter Modes | Auto, manual, anti-flickering | | Shutter Speed | 1/15 to 1/32,000 sec | | Slow Shutter | Off, 2x, 3x, 5x, 6x, 7.5x, 10x | | Digital Noise Reduction (DNR) | 3D-DNR 0-11 | | Wide Dynamic Range | 120 dB, off, 2x, 3x | | AGC (Automatic Gain Control) | Yes | | Day and Night | Auto, day, night, schedule | | Programmable Privacy Zones | 16 | | Motion Detection | Yes | | Alarm Notifications | Notifications via email, microSD card, or FTP server | | Memory Card Slot | 1 x microSD/SDHC/SDXC up to 128 GB | | Reset Button | Yes | | | | LAN | 1 x 802.3 compliance 10/100Base-T LAN | | Video Compression | H.264, MJPEG | | Resolution | 2560 x 1440 (1440p) to 640 x 480 (480p) at 30 fps | | Frame Rate | Up to 30 fps at all resolutions | | Video Bit Rate | 100 kbps to 10 Mbps, multi-rate for preview and recording | | Bit Rate Control | Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth) | | Streaming Capability | Dual-stream at different rates and resolutions | | IP | IPv4 | | Protocol | ONVIF, TCP/IP, UDP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3 (MIB-2) | | Security | Password authentication, multi-level user configuration HTTPS (SSL), IP filtering, 802.1x, digest authentication (ID/PW) | | Maximum User Access | 10 | | ONVIF Conformance | Profile S | | Web Viewer | OS: Windows, Mac OS, Linux
Browser: Internet Explorer, Chrome, Firefox, Safari
| | | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Operating Humidity | Less than 90% (non-condensing) | | IP Rating | IP66 | | IK Rating | IK10 | | Certifications | FCC, CE, ROHS | | Power Requirements | 12 VDC, PoE IEEE 802.3af Class 3 (adapter not included) | | Power Consumption | PoE: 7.4 W max
12 VDC: 5.6 W max
| | Construction Material | Aluminum die-casting | | Dimensions (Diam. x H) | 4.13 x 2.38" (105 x 60.7 mm) | | Weight | 0.95 lb (350 g) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 5.3 x 5.2 x 4.8" |
