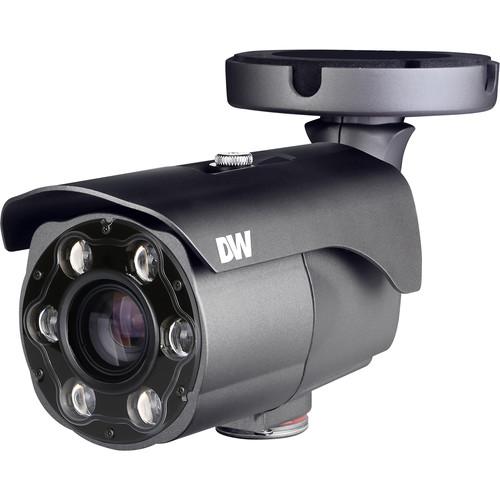

User Manual for Digital Watchdog MEGApix 4MP Outdoor Network Bullet Camera with Night Vision & 6-50mm Varifocal Lens Click to enlarge the picture
Contents of the user manual for the Digital Watchdog MEGApix 4MP Outdoor Network
- Product category: Wired IP Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired IP Cameras
 |
User manual for the Digital Watchdog MEGApix 4MP Outdoor Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|

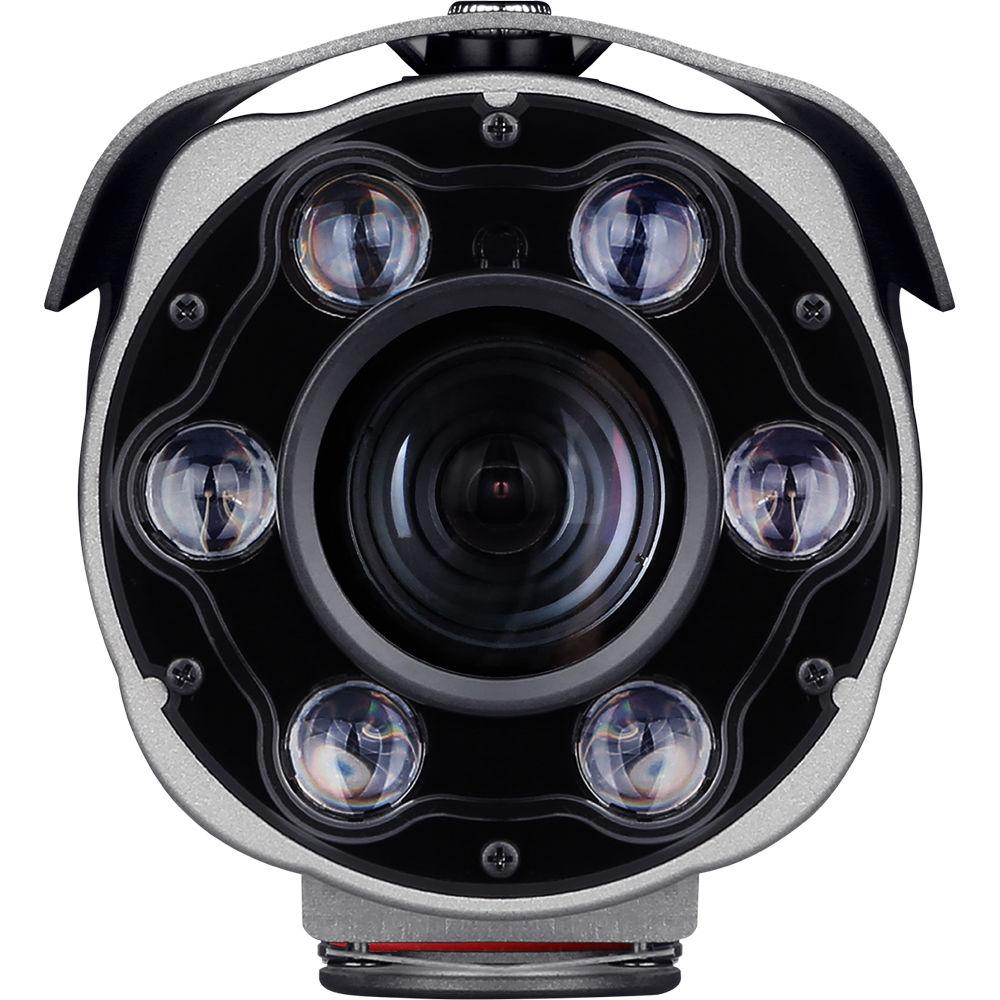

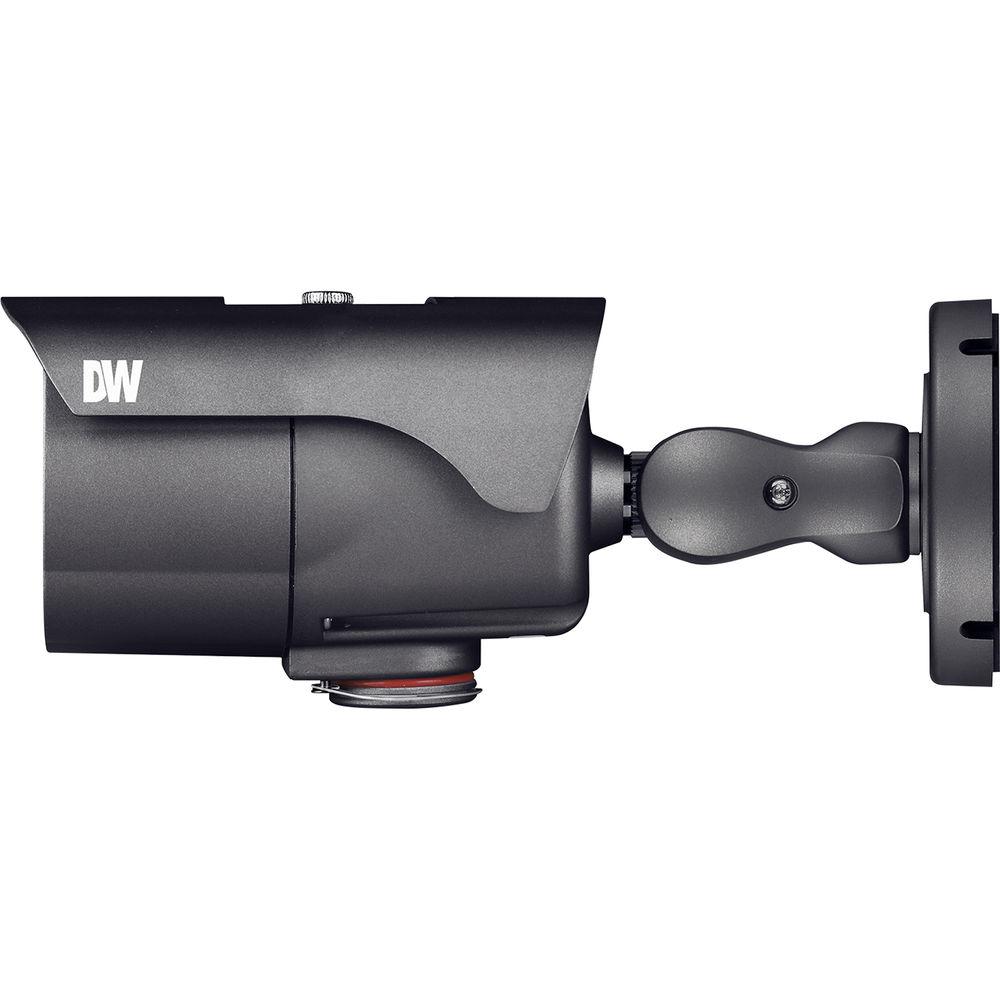

Product description Keep a watchful eye on your property with the MEGApix 4MP Outdoor Network Bullet Camera with Night Vision & 6-50mm Varifocal Lens from Digital Watchdog. This camera features a 4MP 1/3" CMOS image sensor to capture 2560 x 1440 resolution video at up to 30 fps. The 6-50mm motorized varifocal lens delivers a 90-7.3° field of view to monitor a wide area. Smart IR technology enables up to 140' of night vision. Integrated two-way audio allows you to communicate with individuals being monitored. PoE support simplifies installation by providing both power and network connection over a single Ethernet cable. A built-in microSD/SDHC/SDXC slot supports cards up to 64GB, which are available for purchase separately.
This device is ONVIF-compliant, with Profile S support for interoperability between network video products. It is housed in an IP66-rated enclosure, making it suitable for outdoor use. - 6-50mm remote auto focus varifocal P-iris lens
- H.264 and MJPEG dual-streaming compression
- Mechanical IR cut filter enables true day and night functionality
- Up to 140' Smart IR with intelligent camera sync
- Programmable privacy zones allow you to select up to 16 areas you don't want recorded
- Alarm notifications via email, FTP server, or microSD card recording
- Shutter modes include auto, manual, and anti-flicker
- Slow shutter ranges from off to x2, x3, x5, x6, x7.5, and x10
- Compatible with Windows, Mac OS, Linux, Internet Explorer, Chrome, Firefox, and Safari
- Alarm sensor input and relay output
- Powered by PoE and 12 VDC
- IP66-rated enclosure that is suitable for outdoor use
UPC: 813379019944 In the Box Digital Watchdog MEGApix 4MP Outdoor Network Bullet Camera with Night Vision & 6-50mm Varifocal Lens 4 x Screws & Plastic Anchors Template Sheet Torx Wrench Test Video Cable DC Plug Cable Waterproof Cap Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog MEGApix 4MP Outdoor Network Bullet Camera with Night Vision & 6-50mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog DWC-MB44WI650 Specs | | | Sensor | 4 MP 1/3" CMOS | | Focal Length | 6 to 50mm | | Maximum Aperture | f/1.6 | | Zoom | Optical: 8.3x | | Lens Field of View | Horizontal: 90 to 7.3° | | IR Cut Filter | Mechanical | | Day/Night | True | | Minimum Illumination | Color: 0.26 Lux
B&W: 0 Lux | | Shutter Speed | 1/32000 to 1/15 Seconds | | | | Streaming Resolution | 2560 x 1440 at 30 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | , 2 Streams | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Built-In Mic | Yes | | External Audio Input | 3.5 mm | | Built-In Speaker | Yes | | External Audio Output | 3.5 mm | | | | Security | Digest Authentication, HTTPS, IP Address Filtering, Password Protection | | Supported Protocols | DHCP, DNS, DynDNS, FTP, HTTP, , ICMP, IPv4/v6, NTP, ONVIF Profile S, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP | | | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | | | Recording Media | microSD (Up to 64 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x RCA | | IR Range | 140' / 42.67 m | | Video Management Software | DW Spectrum IPVMS | | Internal Storage | None | | Power Source | DC, PoE 802.3at (30 W) | | Power Consumption | 11 W
12.9 W | | Material of Construction | Aluminum, Polymer | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Operating Humidity | 0 to 90% | | IP Rating | IP66 | | Dimensions |
