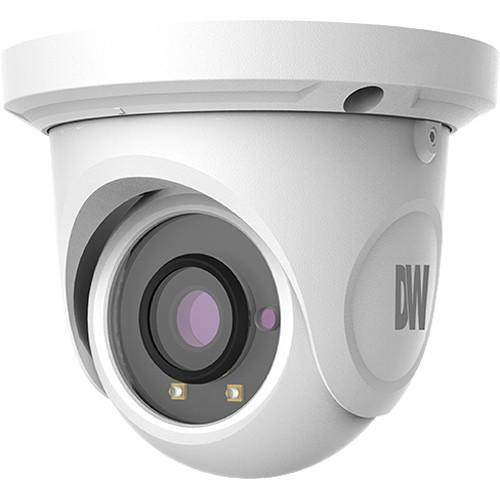

User Manual for Digital Watchdog MEGApix 4MP Outdoor Network Turret Camera with 6mm Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Digital Watchdog MEGApix 4MP Outdoor Network
- Product category: Wired IP Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired IP Cameras
|
User manual for the Digital Watchdog MEGApix 4MP Outdoor Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|
Product description The MEGApix 4MP Outdoor Network Turret Camera with 6mm Lens from Digital Watchdog is a high-resolution IP camera designed for outdoor/indoor installation in commercial/office establishments. Connect it to a compatible NVR, sold separately, and record video at up to 2592 x 1520 resolution in a 50° field of view.
The camera has a weatherproof housing for outdoor installation and is capable of up to 65' of IR LED night vision in complete darkness. It is also capable of 360° adjustment of the lens during installation, allowing for positioning at an optimal view angle.
Other features include motion detection recording, with assignable detection areas and sensitivity, and WDR (Wide Dynamic Range), which compensates where necessary in challenging lighting conditions to continuously deliver a clear image. - Key Features
-
- 1/3" 4 megapixel CMOS image sensor
- 6mm fixed lens with 50° field of view
- Wide Dynamic Range (WDR)
- Multiple codec recording (H.265, H.264, MJPEG) with simultaneous dual-streaming
- 65' IR LED night vision
- Smart DNR 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones (4 masks)
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- Motion detection with assignable areas and sensitivity, as well as notifications via email or FTP server
- Selectable mic/line audio input
- Built-in web server
- Power: 12 VDC, Power-over-Ethernet (PoE)
- ONVIF-conformant (Profile S)
- Weatherproof and impact/tamper-resistant
UPC: 813379019173 In the Box Digital Watchdog MEGApix 4MP Outdoor Network Turret Camera with 6mm Lens & Night Vision Ceiling Mount Plate Set of 4 Tapping Screws Set of 4 Plastic Plugs Waterproof Cap Rubber Plug Torx Wrench Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog MEGApix 4MP Outdoor Network Turret Camera with 6mm Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog MEGApix Specs | Image Sensor | 1/3" 4 MP CMOS sensor | | Total Pixels | 2688 (H) x 1520 (V) | | Night Vision | 65' (2 m) | | Minimum Illumination | Color: 0.05 lux at f/1.2 (30 IRE, ACG on)
B&W: 0 lux | | Focal Length | 6mm, f/1.6 | | Field of View | 50° | | Audio I/O | 1 x mic/line input (selectable via interface) | | Audio Compression | G.711A/G.711U (selectable via interface) | | Shutter Modes | Auto, manual, anti-flicker | | Shutter Speed | 1-1/100,000 sec | | Digital Noise Reduction | 0-255, Auto | | Gain Control | Auto | | Wide Dynamic Range | Low, middle, high | | Day and Night | Auto, day (color), night (B&W), schedule | | Privacy Zone | 4 programmable privacy zones | | Alarm Notifications | Notifications via email or FTP server | | Ethernet Connectivity | 802.3 compliance 10/100Base-T LAN | | Video Compression | H.265, H.264, MJPEG | | Capture Resolution | Up to 4 MP (2592 x 1520) | | Frame Rates | Up to 30 fps at all resolutions | | Streaming Capability | 1280 x 720 (720p) to 2592 x 1520 (4 MP) at 1 to 30 fps | | Video Output | 1 x RJ45 (for connection to NVR and PoE) | | IP | IPv4, IPv6 | | Protocols | TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP | | Security | IP filtering, MAC filtering, Authentication (ID/PW), SSL/TSL | | Maximum User Access | 10 users | | ONVIF Conformance | Yes | | Web Viewer | Internet Explorer | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Operating Humidity | Less than 90% non-condensing | | IP Rating | IP66 | | IK Rating | IK10 | | Certifications | CE, FCC, RoHS | | Power Requirement | 12 VDC, PoE (IEEE 802.3af Class 2) | | Power Consumption | 5 W (max) | | Material | Aluminum die-casting | | Dimensions | 4.3 x 3.4" (11 x 8.7 cm) | | Weight | 0.94 lb (0.43 kg) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 5.4 x 5.4 x 4.6" |
