User Manual for Digital Watchdog MEGApix 4MP Snapit Outdoor Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Digital Watchdog MEGApix 4MP Snapit Outdoor
- Product category: Wired IP Cameras Digital Watchdog
- Brand: Digital Watchdog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Digital Watchdog Wired IP Cameras
 |
User manual for the Digital Watchdog MEGApix 4MP Snapit Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Digital Watchdog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Digital Watchdog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Digital Watchdog product will considerably shorten its lifespan!
|

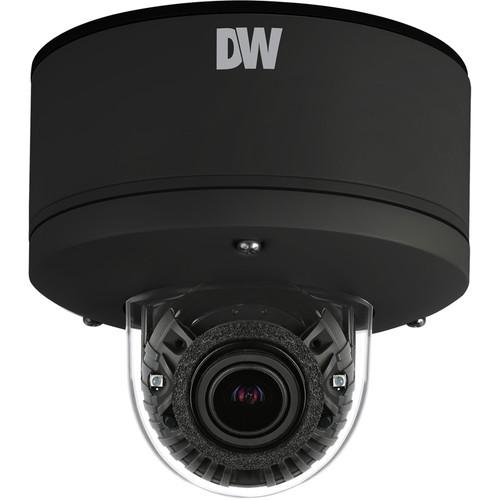

Product description The black MEGApix 4MP Snapit Outdoor Network Dome Camera from Digital Watchdog features a 1/3" CMOS sensor and 2.8-12mm P-Iris remote auto focus lens for capturing videos at a maximum resolution of 2560 x 1440. This day/night camera provides 24-hour surveillance thanks to its removable IR cut filter and built-in Smart IR LEDs with a range of up to 100'. Furthermore, it includes features like WDR, Smart 3D-DNR, AWB, and AGC that enhance images in varying lighting conditions. The camera comes enclosed in an IP68-rated Snapit housing that allows for four-step installation. It features the CleanView hydrophobic dome coating that repels water, dust, and grease. It also has a built-in in heater that helps the camera to power up in temperatures as low as -40°F, making it suitable for installation in areas with harsh environments. - 1/3" 4MP CMOS image sensor
- 2688 x 1520 resolution video at 30 fps
- 2.8-12mm remote auto focus P-iris lens
- Smart IR with Intelligent camera synchronization

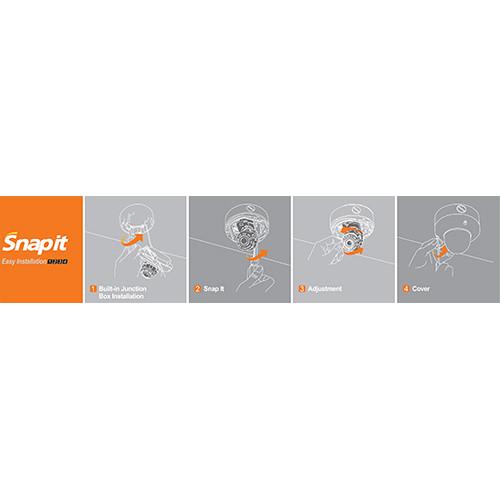

- Snapit housing with four-step installation
- Dual codecs (H.264 and MJPEG) with simultaneous streaming
- Smart DNR 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- microSD/SDHC/SDXC Class 10 card slot for event and continuous recording (card sold separately)
- ONVIF certified, Profile S
- IP68-rated weather-resistant Snapit housing

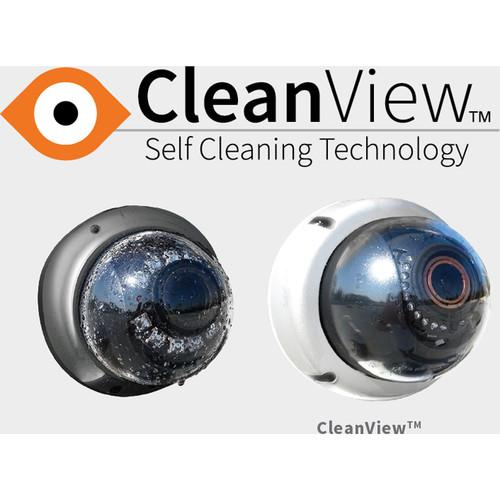

- CleanView hydrophobic dome coating repels water, dust, and grease
UPC: 813379018701 In the Box Digital Watchdog MEGApix 4MP Snapit Outdoor Network Dome Camera with Night Vision (Black) Test Monitor Cable Template Sheet Mounting Hardware Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Digital Watchdog MEGApix 4MP Snapit Outdoor Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigital Watchdog MEGApix Specs | | | Image Sensor | 1/3", 4 MP CMOS sensor | | Total Pixels (H x V) | 2688 x 1520 | | Minimum Illumination | Color: 0.2 lux at f/1.4 (30 IRE)
B&W: 0 lux at f/1.4 (30 IRE) | | Resolution | 2560 x 1440 | | Video Output | Local: CVBS 1.0 V p-p (75 Ohms), 4:3 aspect ratio | | IR Range | 100' (30.48 m) | | | | Focal Length | 2.8-12mm | | Aperture | f/1.4 | | Lens Type | P-iris remote auto focus lens | | Field of View | 87 to 32° | | Optical Zoom | 4.2x | | | | Shutter Modes | Auto, Manual, Anti-flickering | | Shutter Speed | 1/15 to 1/32,000 sec | | Automatic Gain Control | Auto | | Day and Night | Auto, Day (color), Night (B&W) | | Digital Noise Reduction | Smart 3D-DNR, 0 to 11 | | Wide Dynamic Range | Off, WDR2x, WDR3X | | Programmable Privacy Zones | 4 | | Alarm Notifications | Notifications via email, FTP server, or SD card recording | | Recording Schedule | Schedule, Event Rules, Continuous | | Gamma | User / 0.45 to 1.00 | | | | LAN | 802.3 Compliance 10/100 LAN | | Video Compression | H.264, MJPEG | | Resolution | 2560 x 1440
800 x 600
640 x 480 | | Frame Rate | Up to 30 fps at all resolutions on all streams | | Streaming Capability | Dual-stream at different rates and resolutions | | IP | IPv4 | | Protocol | ONVIF, TCP/IP, UDP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3 (MIB-2) | | Security | Password authentication, Multi-level user configuration
HTTPS (SSL), IP filtering, 802.1x, Digest Authentication (ID/PW) | | Maximum User Access | 5 simultaneous users | | Web Viewer | OS (Operating System): Windows, Mac, and Linux
Browser: Internet Explorer, Chrome, Firefox, and Safari | | Video Management Software | DW Spectrum IPVMS | | Memory Slots | microSD/SDHC/SDXC card (card sold separately) | | ONVIF Conformance | Profile S | | | | Audio Input / Output | 1/1 | | Audio Compression | G.711 | | Alarm Input / Output | 1/1 | | | | Ingress Protection | IP68 | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Operating Humidity | Less than 90% (non-condensing) | | Certifications | CE, FCC, RoHS | | | | Power Requirement | 12 VDC, PoE (IEEE 802.3af Class 3) | | Power Consumption | AF Working: Maximum 7.8 W, 650 mA
LED On: 5.2 W, 430 mA
LED Off: 3.6 W, 300 mA | | | | Material | Aluminum housing, polycarbonate dome | | Dimensions | 5.5 x 4.8" (139 x 122 mm) | | Weight | 2.75 lb (1.25 kg) | | | | Package Weight | 3.95 lb | | Box Dimensions (LxWxH) | 8.6 x 8.3 x 8.0" |
